Schneider Electric

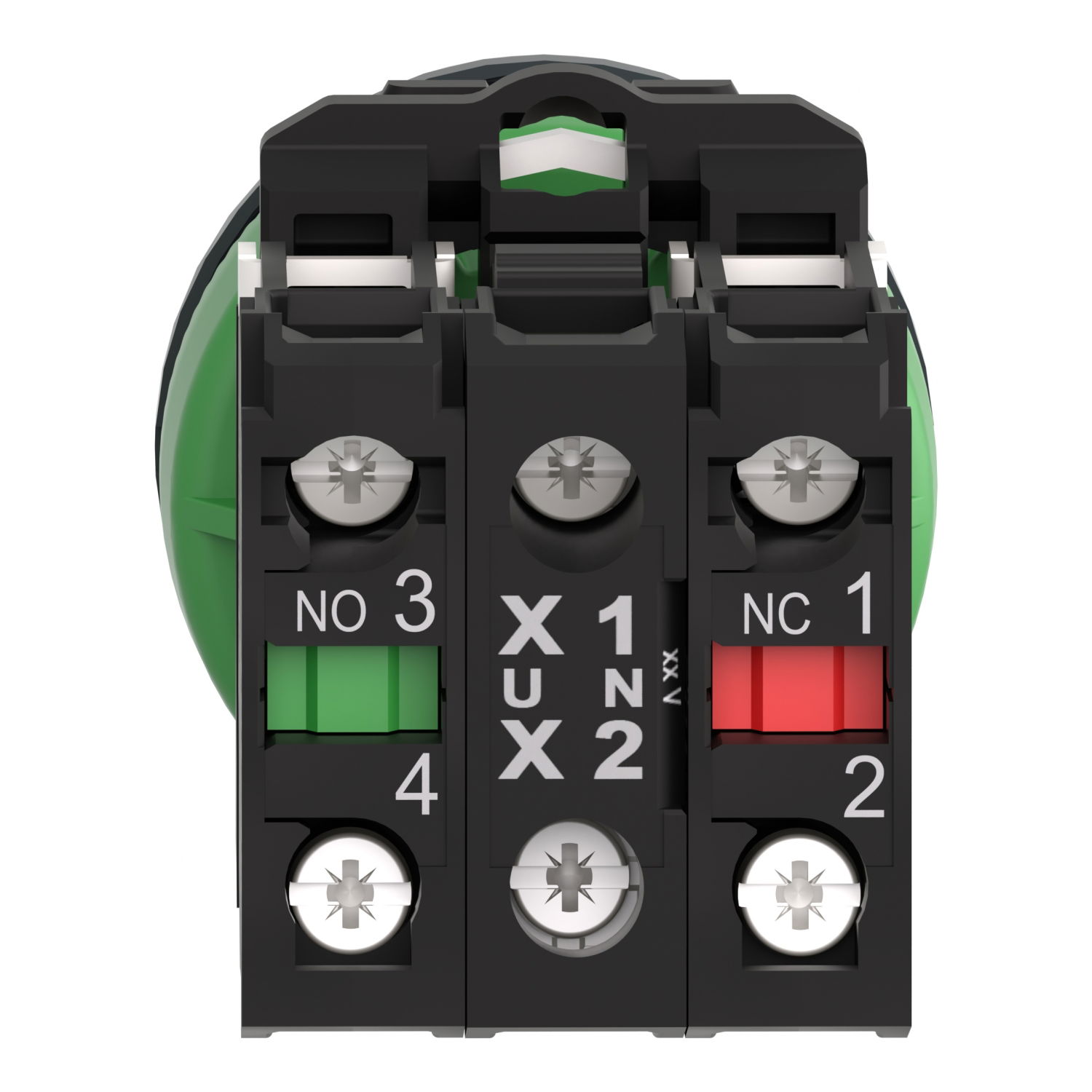

Illuminated push button, Harmony XB5,plastic, white, 30mm, universal LED, 1NO + 1NC, 230…240V AC

Illuminated push button, Harmony XB5,plastic, white, 30mm, universal LED, 1NO + 1NC, 230…240V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £48.37 excl. VAT. Voltimum+ members earn 6 points per unit.

This flush mounted illuminated pushbutton is a part of the Harmony XB5 plastic range and is a complete product. It has a mounting diameter of 30.5 mm. The rated supply voltage is 230 V to 240 V AC. Customized marking option through web customization tool in Schneider Electric website is available. Improved ergonomics and aesthetics due to flush mount design. It has a plain lens and the source of light is a universal LED. The contact type is 1NO and 1NC slow break and the connection terminal is screw clamp. The operator mechanism is spring return. The shape of the head is round and white. The bezel and the fixing collar is plastic. The weight of this pushbutton is 52 grams, height is 42 mm, and width is 36.6 mm. The simplicity of installation, flexibility, and robustness makes it suitable for the majority of industrial segments and applications. With IP66, 67, 69, and 69K, type 13 and 4X, IK03, protection against solid objects, dust, water, and shock is achieved. It is certified with EN/IEC, CE marking, UL, CSA, JIS, NEMA, and marine approvals. To name a few, flush mounted plastic circular blanking plug, metal ring, protective washer, and plastic flush mounting kit are some of the dedicated accessories to be ordered separately, available to facilitate the installation. The packaging includes 1 unit of this pushbutton. It can be easily installed to a panel cut out with the help of a cross head screwdriver. Contacts and heads are designed to prevent vibration, helping to ensure secure mounting and wiring.

Product identifiers

SKU: XB5FW31M5
EAN: 3606481361028
GTIN: 3606481361028
MPN: XB5FW31M5

Voltimum+ Loyalty Programme Loyalty points: 6

Price: £ 48.37 Excl. VAT

Categories

Sockets & Switches Wiring Accessories & Installation Light Switches

ETIM group

Low-voltage industrial components

Specifications

Transparent yes
Colour button White
Hole diameter 30.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Plastic
Suitable for lighting yes
Degree of protection (IP) IP66
Number of command positions 1
Type of electric connection Screw connection
Number of contacts as normally open contact 1

Documents

Declaration of Conformity (Sustainability)

XB5FW31M5 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

XB5FW31M5 EU RoHS Directive

Open

Declaration of Conformity (Sustainability)

XB5FW31M5 China RoHS Regulation

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

750 Series Hermetically Sealed Relay

Open
