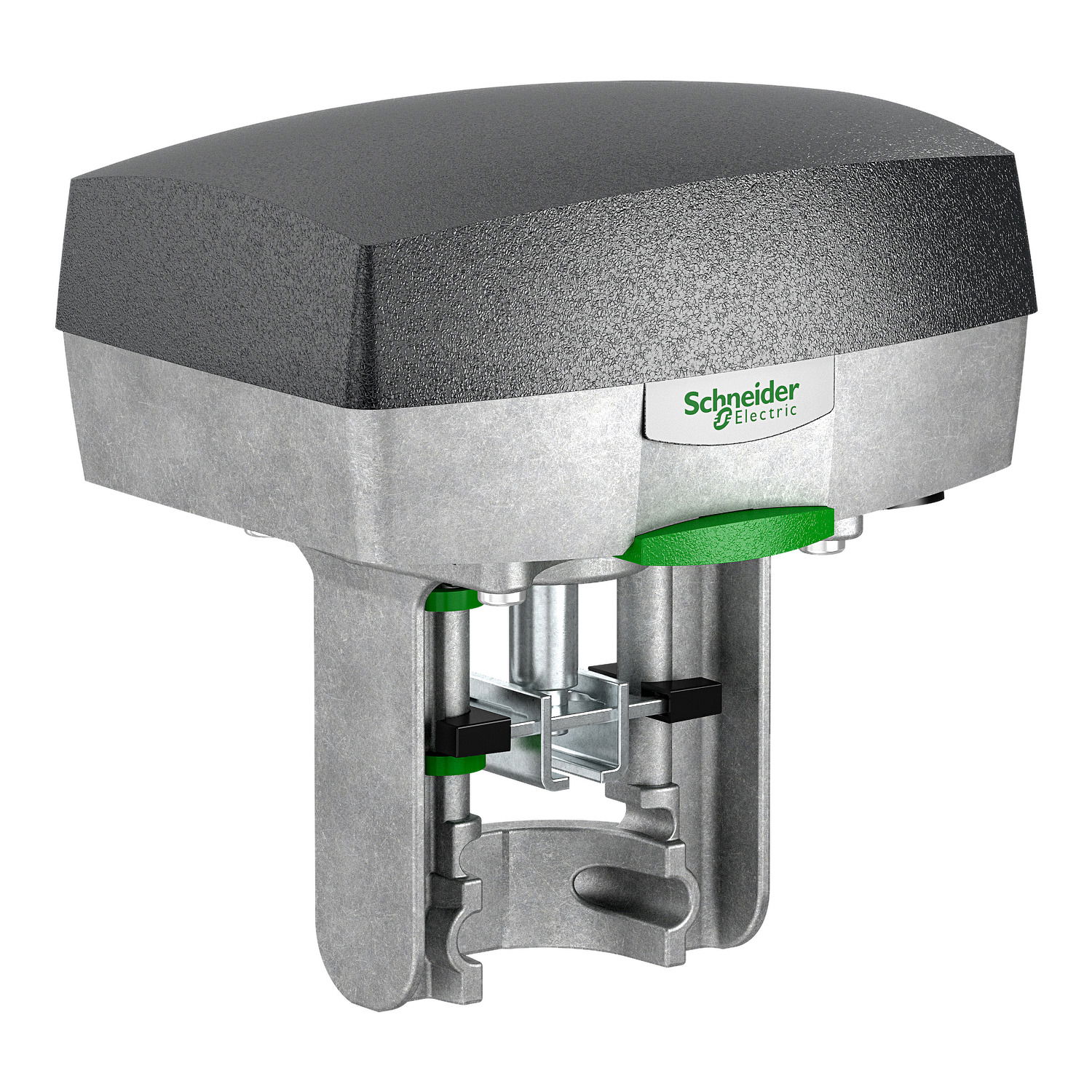

Act (MP500C): Elec, Prop, NSR, 24 VAC/VDC, No leads, 500N, Linear, IP54, SmartX

Link copied
SKU
EAN
GTIN
MPN
MP500C is an linear electro-mechanical actuator for the control of the VP22 SpaceLogic PIBCV, DN4-1. MP5C is controlled either by an increase/decrease floating signal or by a range of modulating control signals between the span of …1V. Working range and end point switches calibrate to any stroke and flow setting of the valve. Multi-signal control for either 3 point increase/decrease signal or various modulating control signals including sequencing. Supply Voltage: 24 Vac +/- 1%, 24 Vdc +/- 15%. Thrust: 5N. Enclosure rating IP52 (NEMA 2). EMC 24/18/CE.

Voltimum+ Loyalty Programme Loyalty points: 70

Price: £ 419.00 Excl. VAT

Specifications

Depth 117 mm
Model Linear
Width 172 mm
Height 123 mm
Torque -
End contacts None
Transmission -
Stroke length 35 mm
Operating time 120 s
Adjusting force 500 N
Housing material Aluminium
Auxiliary contacts yes
Ambient temperature
Max. angle of rotation -
Communications protocol -
Deactivated when closed no
Connection to stop valve Other
Max. electric power input 50 VA
Adjustable operating range yes
Regulation type modulating yes
Suitable for air accessory no
Auxiliary contacts optional no
Automatic stroke recognition yes
Potential free switch contact no
Suitable for manual operation yes
With mechanical setting indicator yes
Principle of operation safety function Other

Documents

Declaration of Conformity (Sustainability)

MP500C REACh Regulation

Open

Instruction sheet

SpaceLogic PIBCV VP220E / VP220F / VP220A Installation Instructions

Open

Product data sheet

Open

Catalog

2026 EMEA-APAC Valves & Actuators Product Catalog

Open

Declaration of Conformity (Sustainability)

MP500C EU RoHS Directive

Open

Declaration of conformity

Security Expert ACMA Declaration cover sheet letterhead

Open

Environmental Disclosure

SpaceLogic MP500C Actuator, Multi-Signal Control, Non-Spring Return, 500N

Open

Circularity Profile

SpaceLogic MP500C Actuator, Multi-Signal Control, Non-Spring Return, 500N

Open
