Schneider Electric

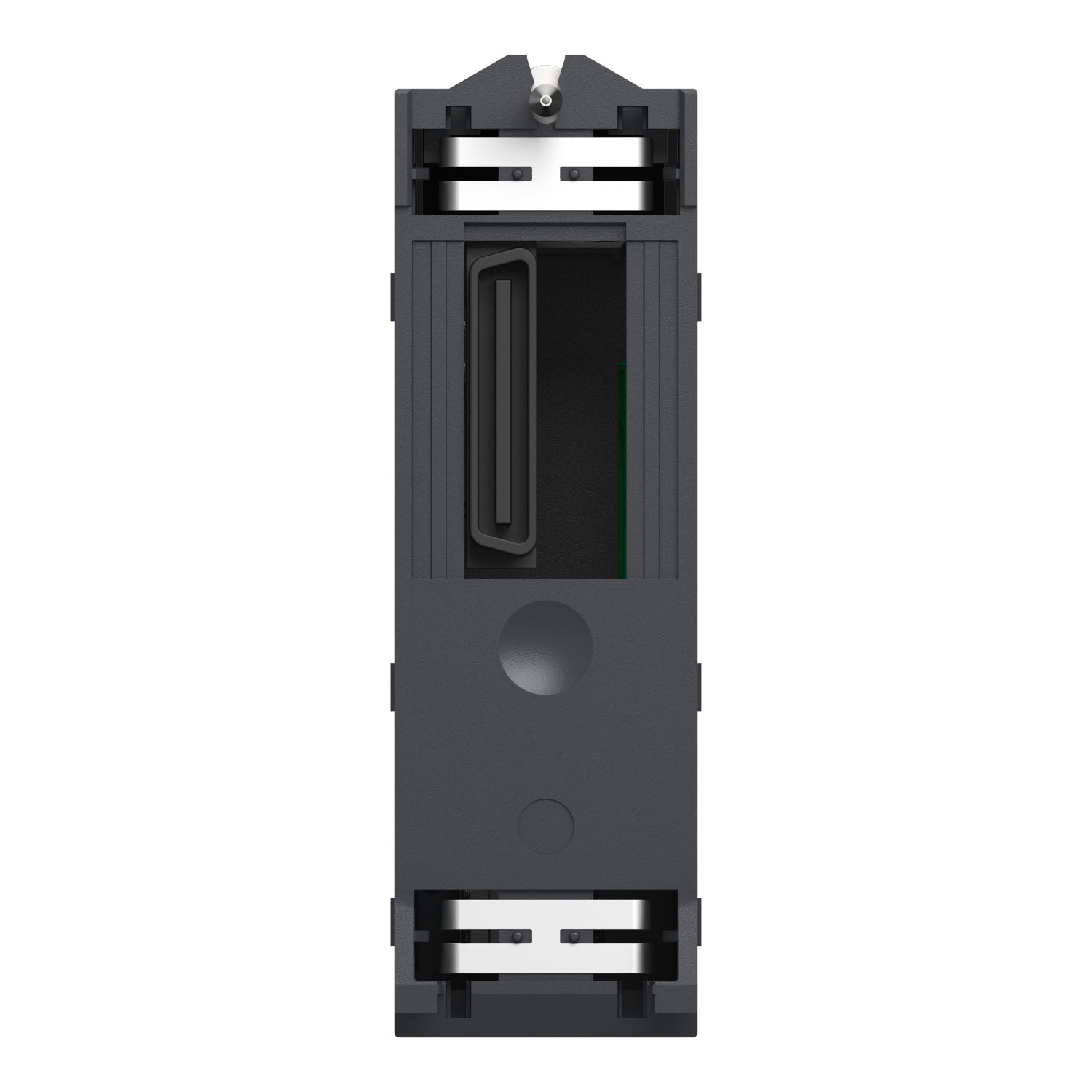

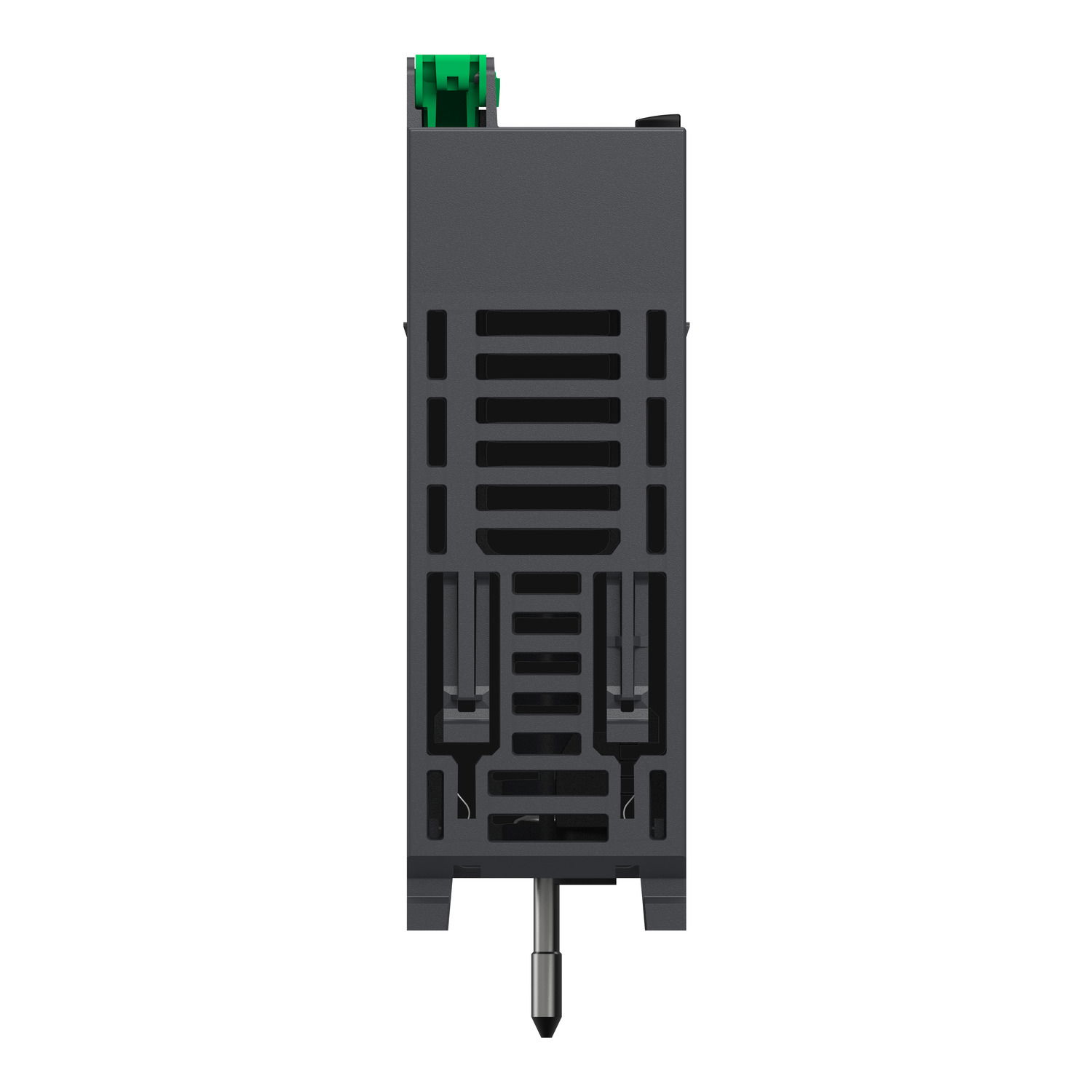

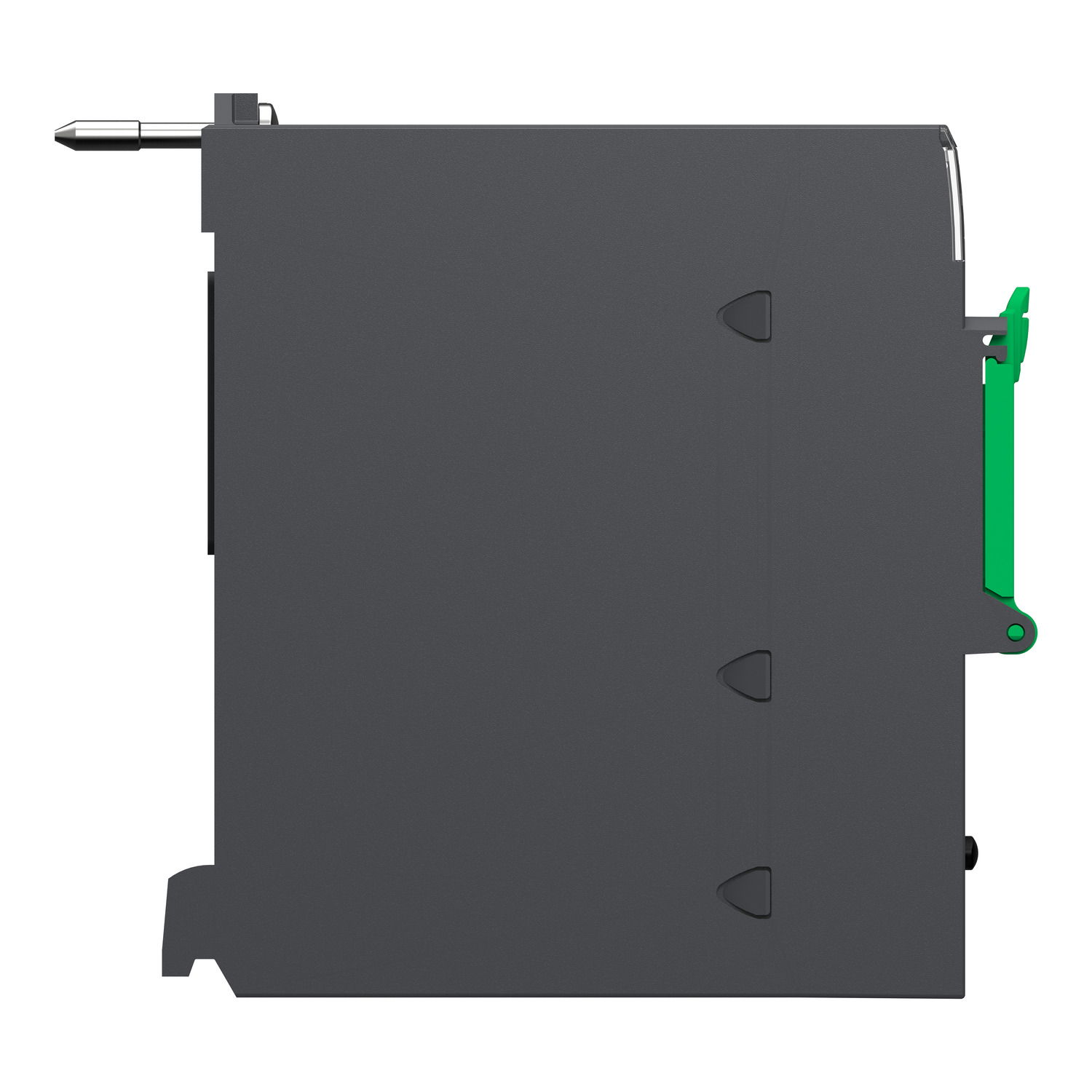

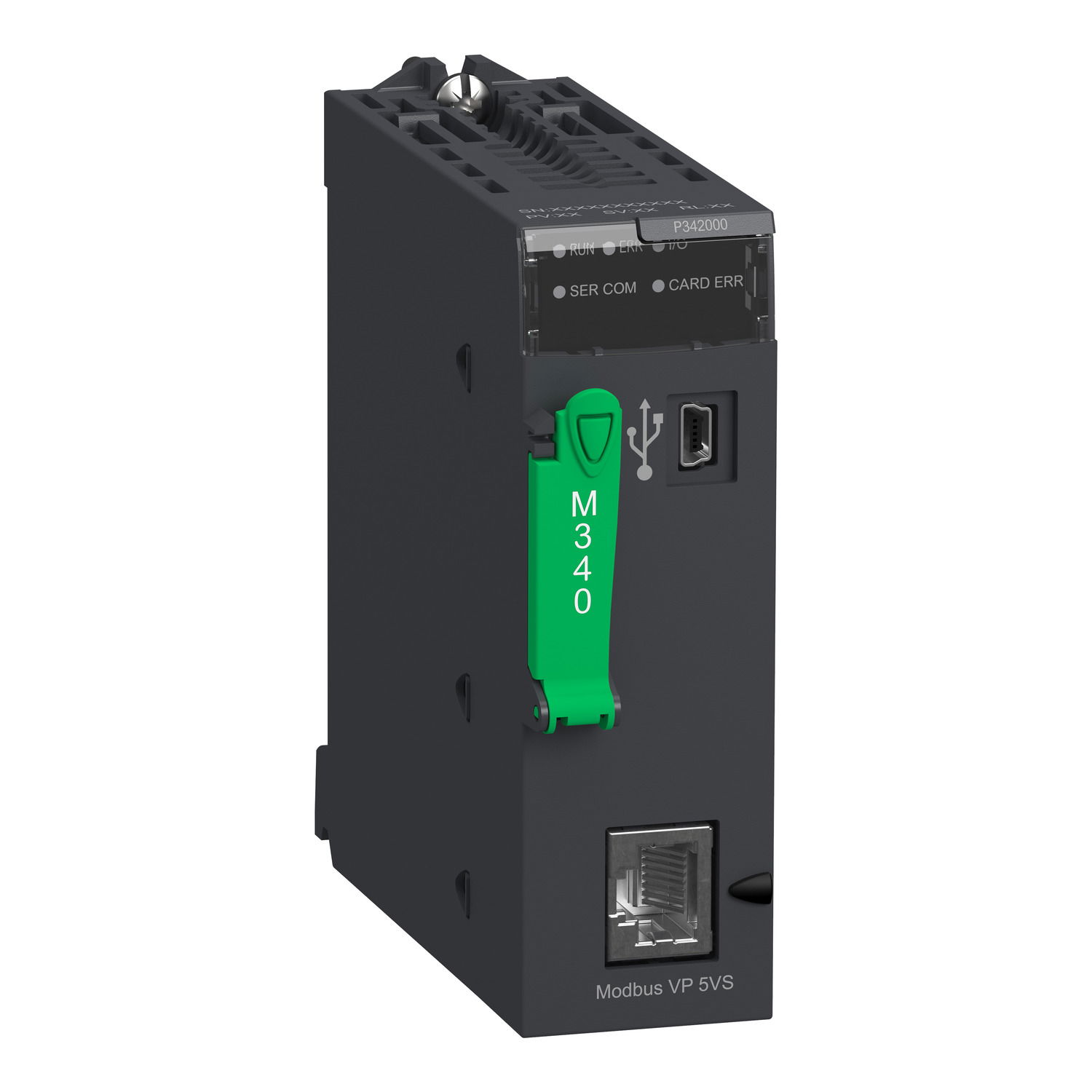

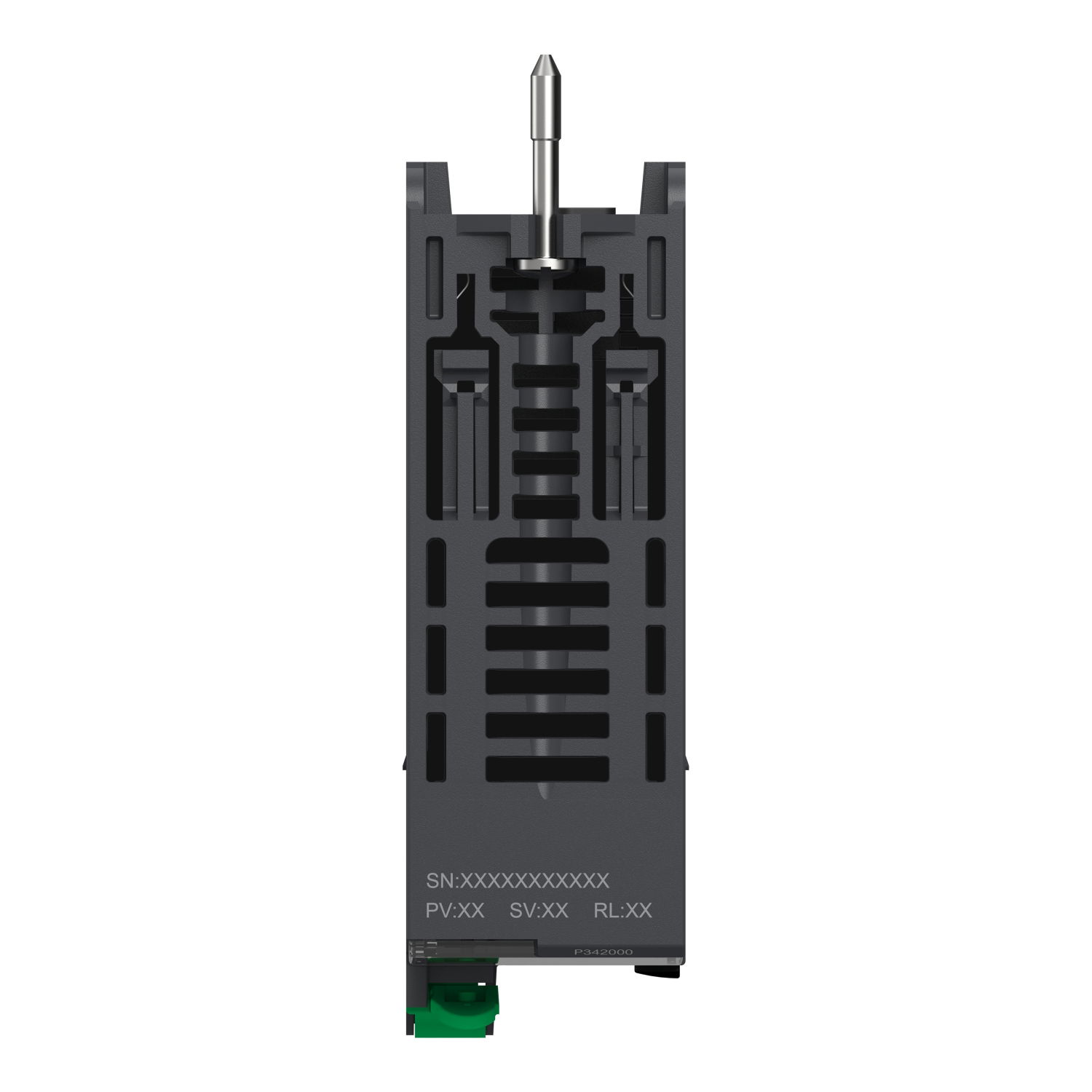

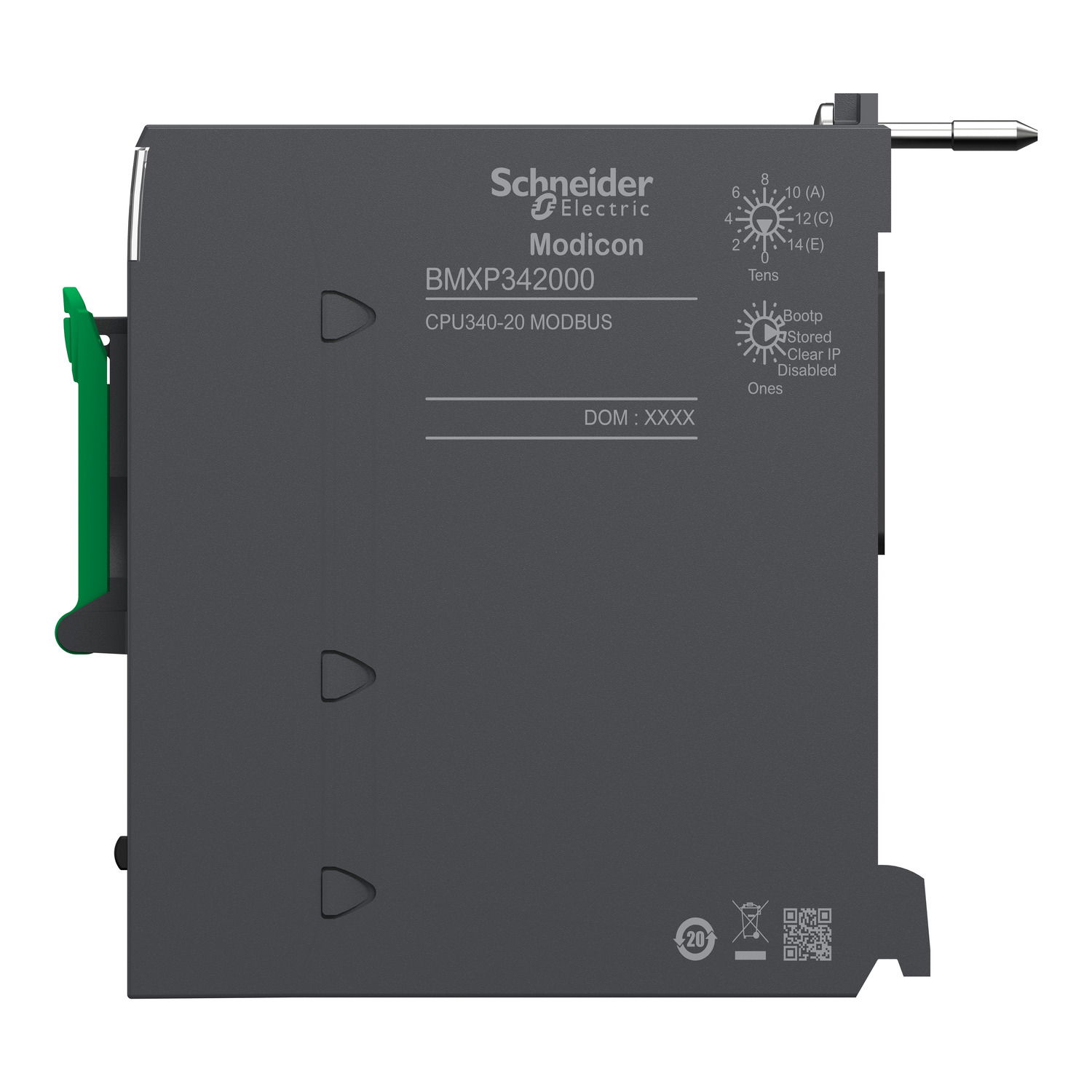

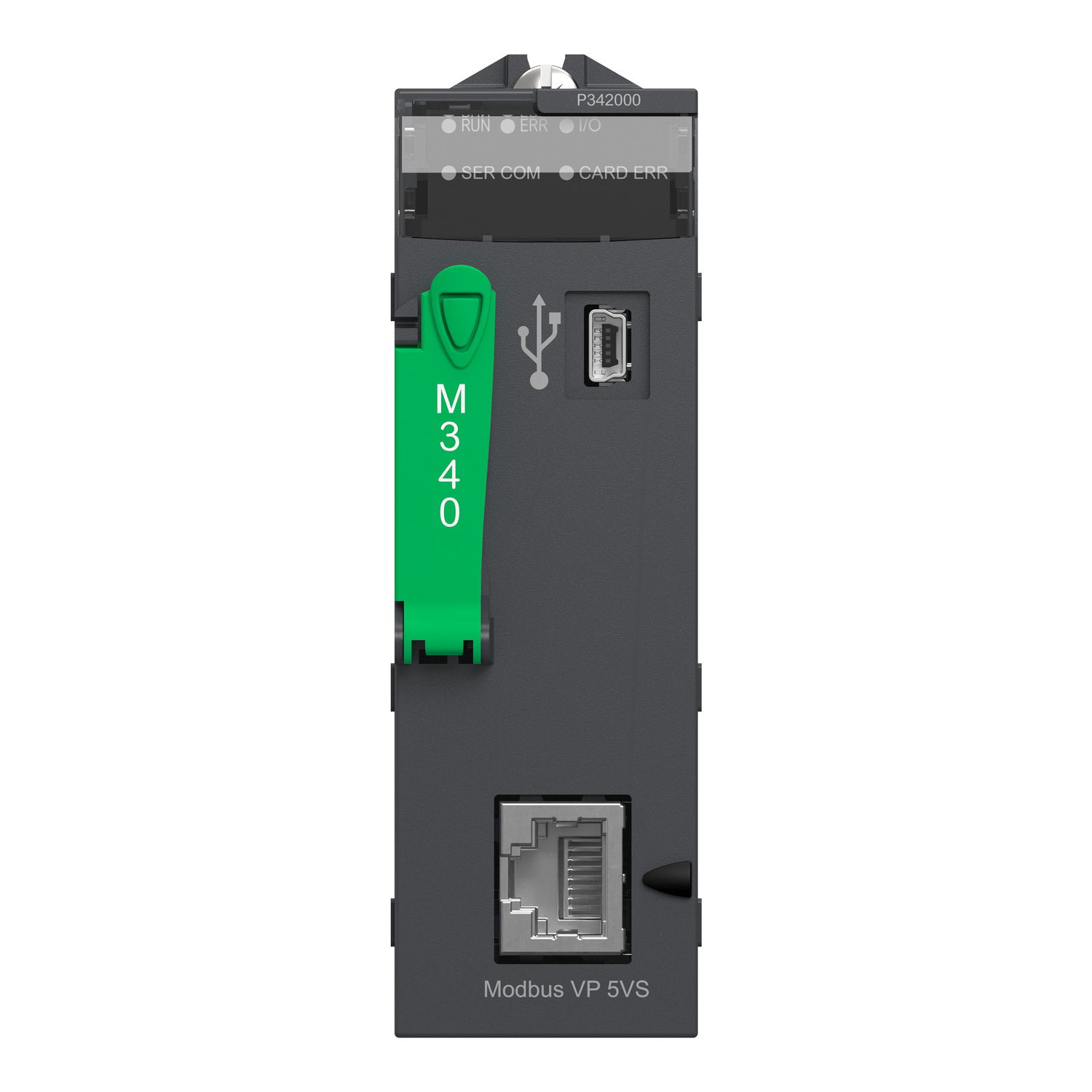

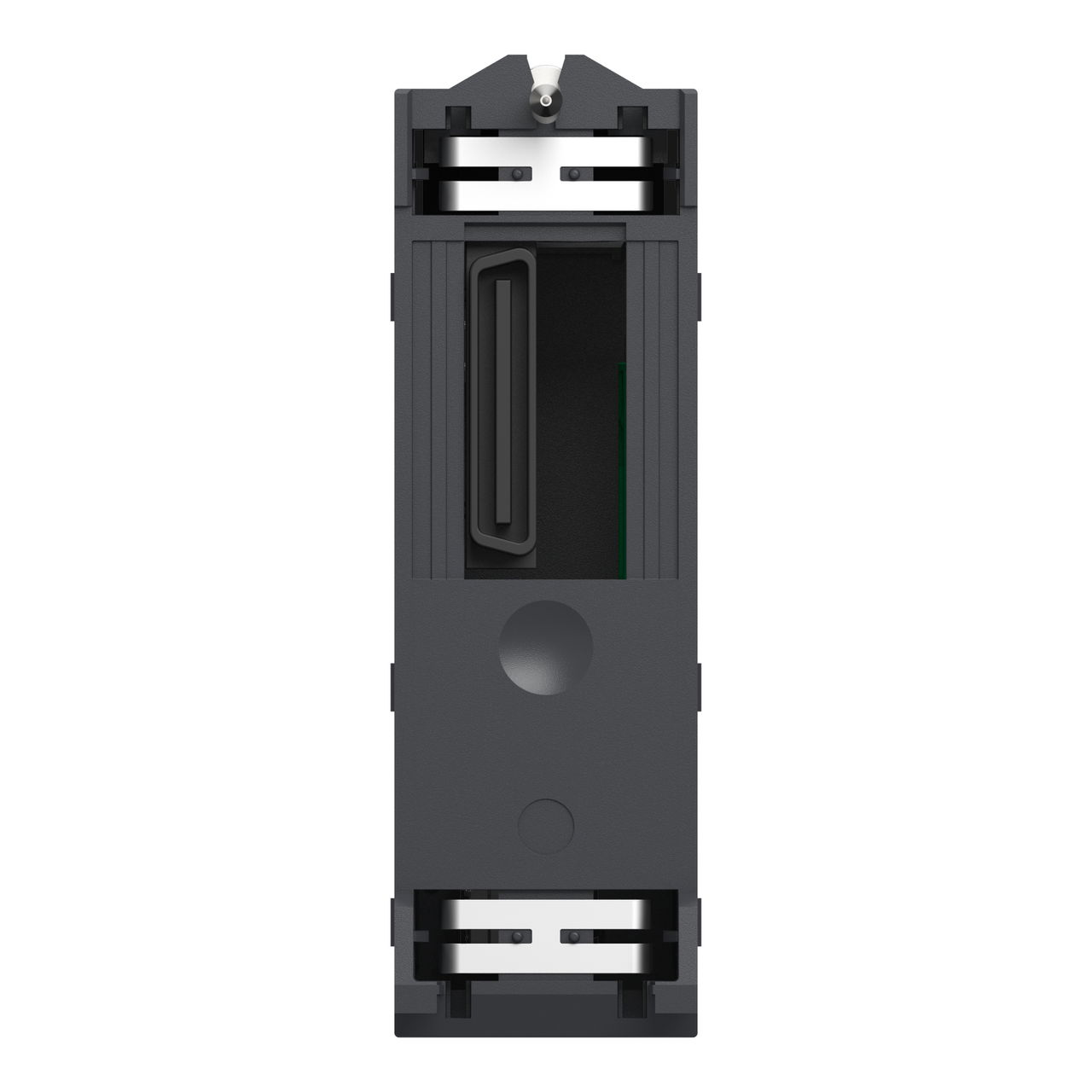

Processor module M340 - max 1024 discrete + 256 analog I/O - Modbus

Processor module M340 - max 1024 discrete + 256 analog I/O - Modbus by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £686.92 to £739.42 excl. VAT. Voltimum+ members earn 88 points per unit.

This processor module is part of the Modicon M340 range, an offer of Programmable Automation Controllers (PAC). It offers a maximum of 1 rack configuration, 36 application specific channels and 11 slots. It is a processor module with a current consumption of 72mA at 24V DC, works with internal power supply. This product is robust, high quality and based on the latest innovative technology. Communication processor module interfaces are 2 Ethernet modules and 4 AS-Interface modules. It is supplied with a memory card for backup of programs, constants, symbols and data. It is an IP20 rated product. The module has 1024 multi-rack configuration discrete I/O processor capacity and 256 multi-rack, 66 single-rack configuration analog I/O processor capacity. It supports 128kb data, 2048kb, 1792kb program internal RAM memory capacity. It weighs 0.2kg. It is suitable for process industries, renewable energies, water, cement, manufacturing, infrastructures and machines applications. This product is certified by CE. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This processor module is compatible with Modicon M340 Programmable Logic Controllers (PLC). It is delivered in 2 packages (PCE and SO2 types). Compact-shaped, Modicon M340 offers in small box flexibility and integrated functions. In the heart of process, it provides you plug and work solutions with both Schneider Electric and third party devices.

Product identifiers

SKU: BMXP342000
EAN: 3595863999266
GTIN: 3595863999266
MPN: BMXP342000

Voltimum+ Loyalty Programme Loyalty points: 88

Price range: £ 686.92 - £ 739.42 Excl. VAT

Categories

Building Controls & Automation PLCs

ETIM group

Programmable logic controllers PLC

Specifications

Depth 160 mm
Model Modular
Width 35 mm
Height 100 mm
Redundancy no
Memory size 2048 kByte
With display no
IO link master no
System accessory no
Radio standard GSM no
Radio standard UMTS no
With optical interface no
Number of relay outputs 0
Supply voltage AC 60 Hz
Radio standard Bluetooth no
Number of analogue inputs 256
Number of analogue outputs 256
SIL according to IEC 61508 None
Number of HW-interfaces USB 1
Supporting protocol for CAN no
Supporting protocol for LON no
Supporting protocol for DNP3 no
Number of interfaces PROFINET 0
Voltage type (supply voltage) DC
Number of HW-interfaces RS-232 1
Number of HW-interfaces RS-485 1
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Number of HW-interfaces wireless 0
Supporting protocol for PROFIBUS no
Appendant operation agent (Ex ib) no
Supporting protocol for DeviceNet no
Supporting protocol for PROFIsafe no
Explosion safety category for dust Other
Supporting protocol for PROFINET IO no
Supporting protocol for Data-Highway yes
Processing time (1K, binary operation) 12 ms
Supporting protocol for DeviceNet Safety no
Supporting protocol for IEC 61850 Ethernet no
Supporting protocol for Foundation Fieldbus no
Supporting protocol for AS-Interface Safety at Work no
