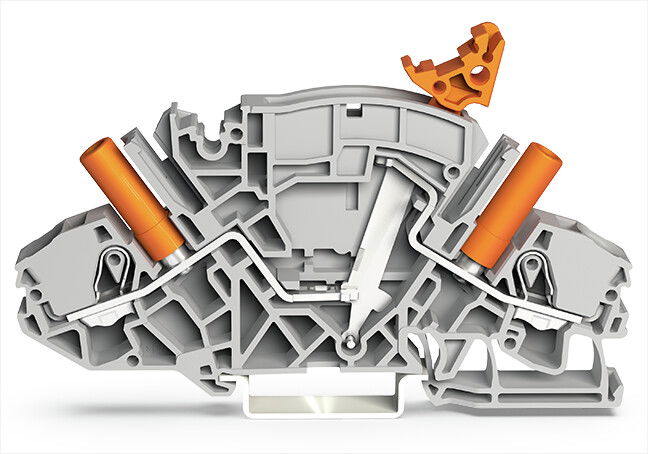

2-conductor disconnect/test terminal block e.g., current transformer circuits with receptacle for adjacent jumper with switch lever gray
Wago

2-conductor disconnect/test terminal block e.g., current transformer circuits with receptacle for adjacent jumper with switch lever gray

2-conductor disconnect/test terminal block; e.g., current transformer circuits; with receptacle for adjacent jumper with switch lever; for 4 mm Ø test plugs; for DIN-rail 35 x 15 and 35 x 7.5; 6 mm²; Push-in CAGE CLAMP®; 6,00 mm²; gray

Product identifiers

SKU: 2007-8821
EAN: 4055143074889
GTIN: 4055143074889
MPN: 2007-8821

Voltimum+ Loyalty Programme Loyalty points: 3 (x20)

Price range: £ 5.78 - £ 8.87 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 65.3
Width 8
Colour Grey
Height 99.6
EFNA0008 V0
Rated voltage 500
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Type of slitting None
Closing plate required yes
Internally connected stages no
With integrated test socket yes
Type of electrical connection 2 Spring clamp connection
Connectable conductor cross section solid-core 1 - 10
Connectable conductor cross section fine-strand with cable end sleeve 1.5 - 6
