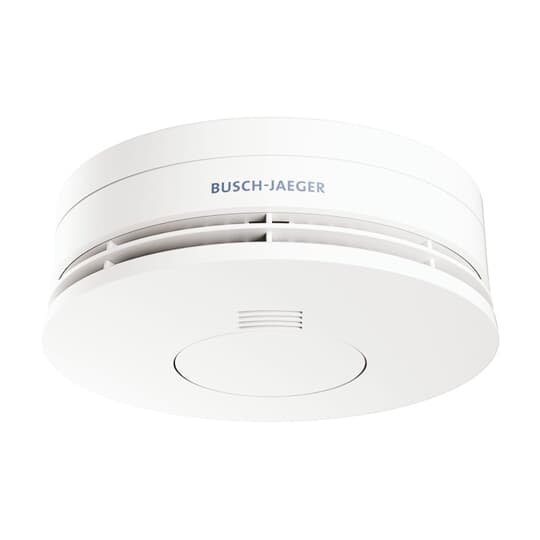

Smoke detector-Lithium + C

Link copied
SKU
EAN
GTIN
MPN
For early detection of smouldering fires and open fires with smoke build-up indoors acc. to photo-optical measuring principle (Tyndall). Suitable for the connection to external systems such as ABB-free@home® via radio module Busch-Smoke alarm detector RF in combination with the ABB-free@home® Alarm-Stick. Permanently installed lithium battery with a service life of at least 10 years. Certified by the KRIWAN Testing Center Tested according to DIN EN 14604. Audible alarm with 85 dBA at 3 m. Dismantling safety. Networkable via two-wire line for up to 20 detectors. Networkable via radio module 6828 for up to 20 detectors. "Q" certificate according to VdS 3131 / vfdb directive 14-01. Diameter: 120 mm. Height: 47.50 mm.

Voltimum+ Loyalty Programme Loyalty points: 32

Price: £ 68.37 Excl. VAT

Specifications

Width 120
Colour White
Length 47.5
Diameter 120
Loudness -
Standalone no
Cable entry -
Height/depth -
Self-adhesive -
Mounting method Surface mounting
Supply voltage DC
With backup battery -
Optical notification -
Rated switch current -
Acoustic notification -
Current supply primary Battery/accumulator
IFTTT support available no
Supply voltage AC 50 Hz
With voltage indication -
Degree of protection (IP) IP20
Operating voltage AC 50 Hz
Suitable for duct mounting -
Compatible with Amazon Alexa no
Voltage type (supply voltage) -
Networkable via radio (optional) yes
Networkable via radiografic (standard) -
Number of contacts as normally open contact -

Documents

Deeplink product page

Open

Deeplink REACH

All Articles_REACH_EN_25-2_2CKA309999E9999.pdf

Open

Dimensioned drawing

Massbild-Neuer Melder.svg

Open

Instructions for use

0073-1-8409.pdf

Open

Product data sheet

Open

Declaration RoHS

6833_01-84_ROHS_XX_V01_2CKA200000E6469.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

6833_01-84_CE_XX_V02_2CKA100000E2102.pdf

Open
