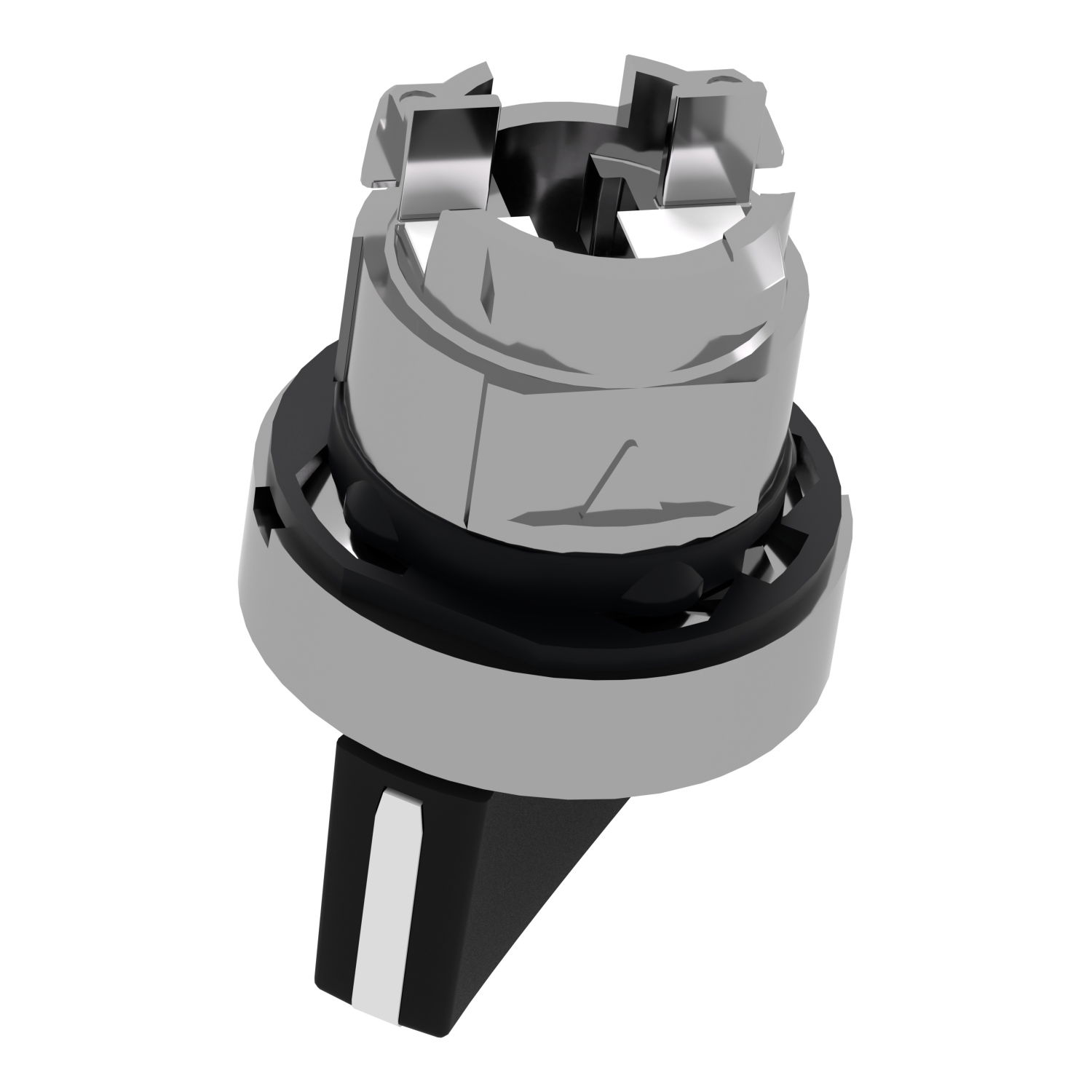

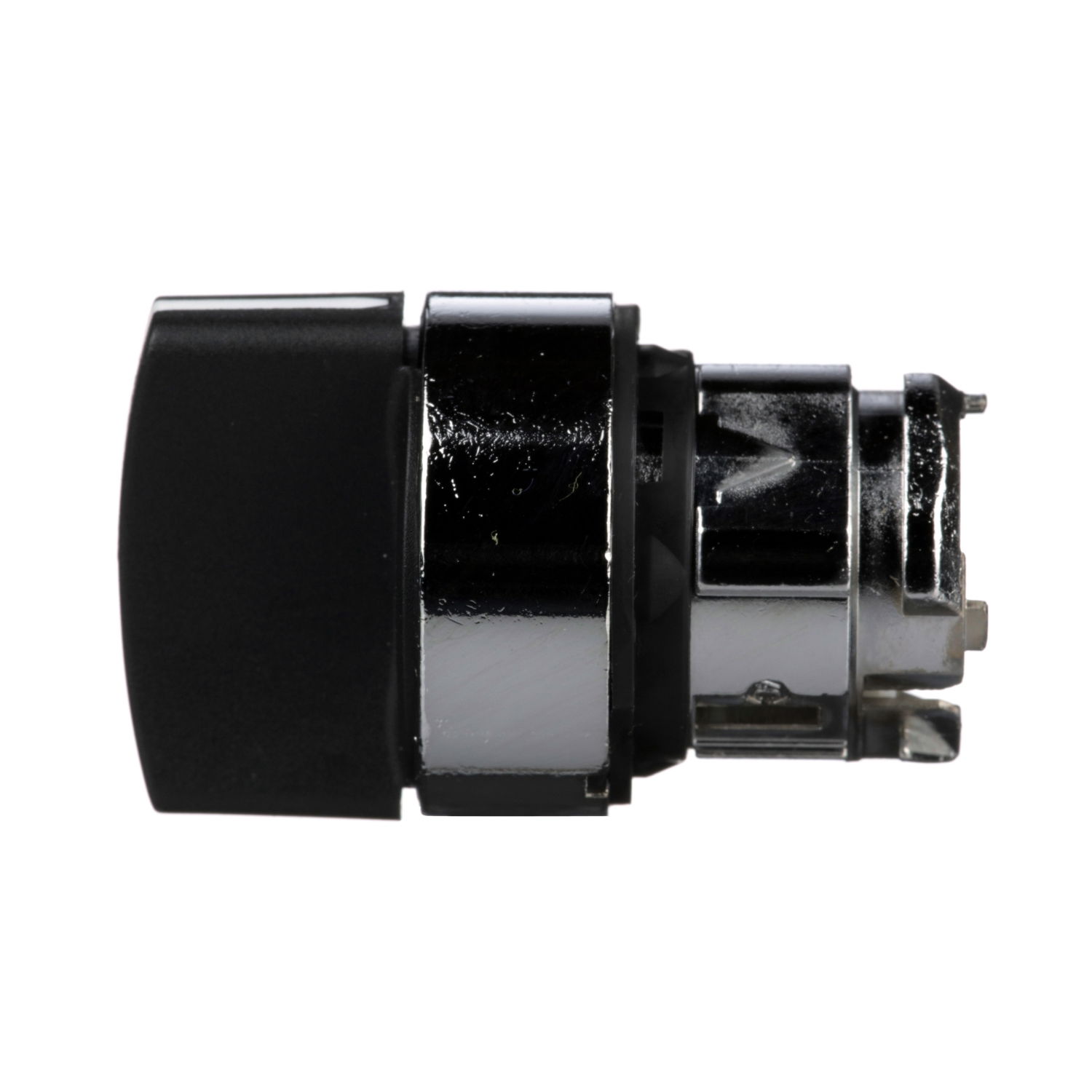

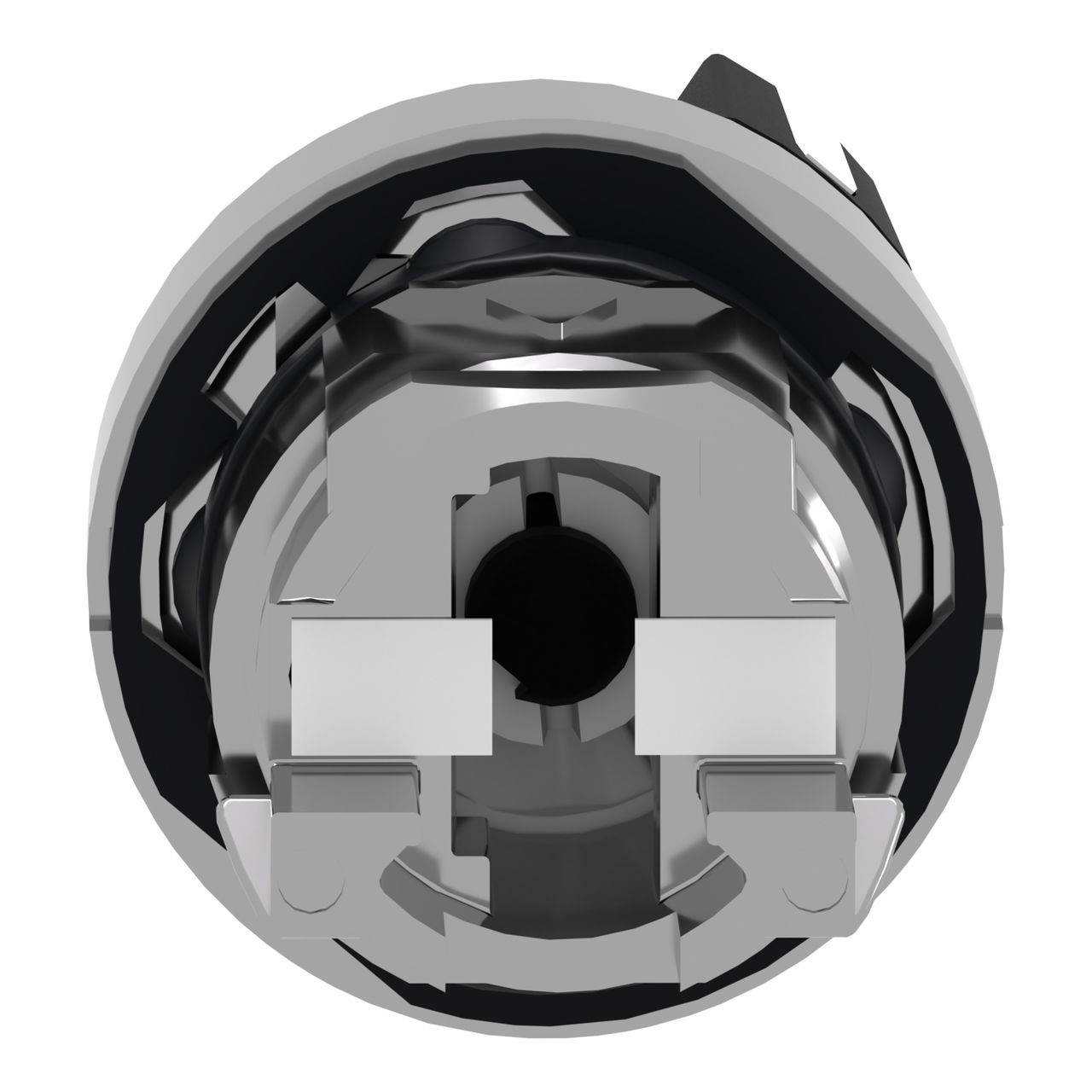

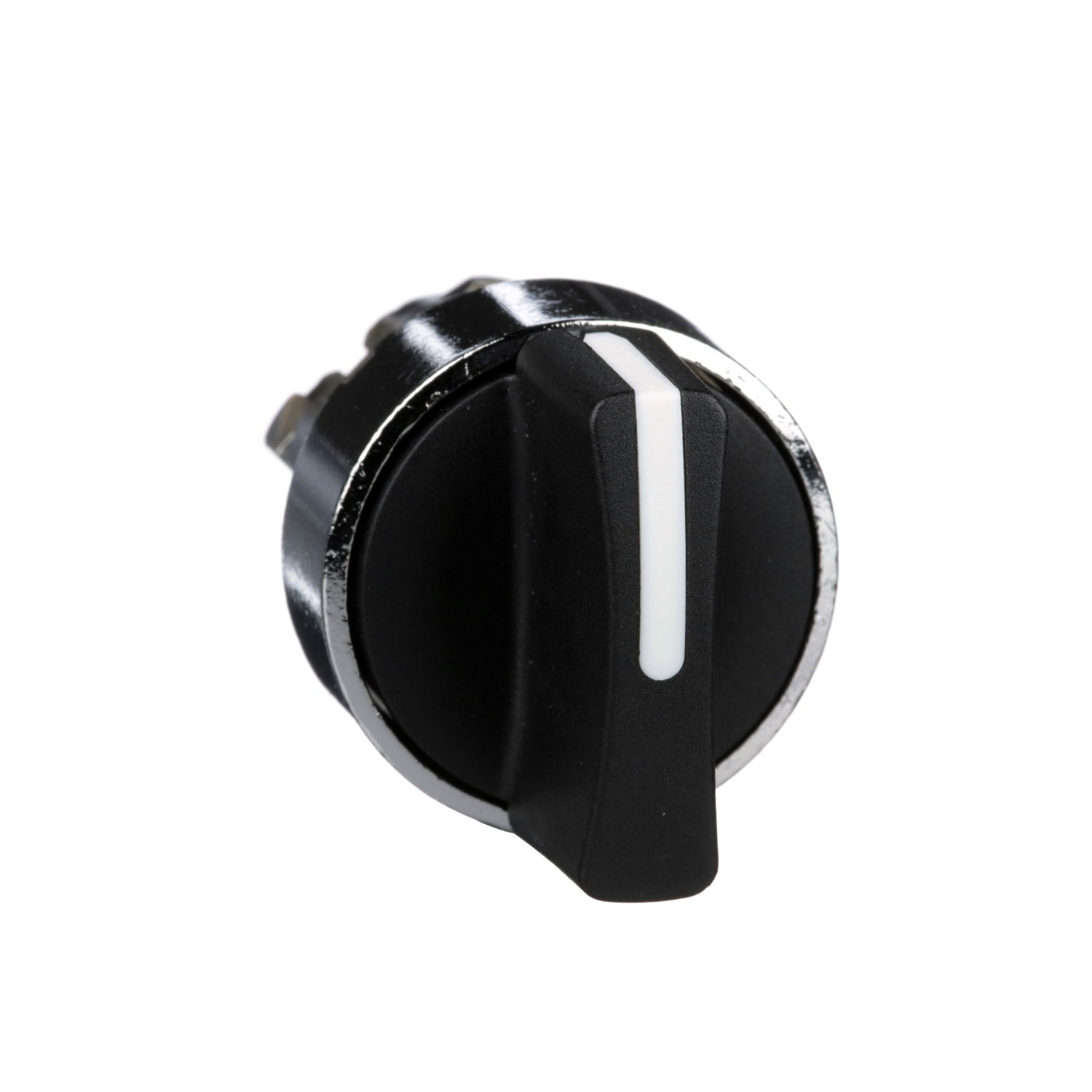

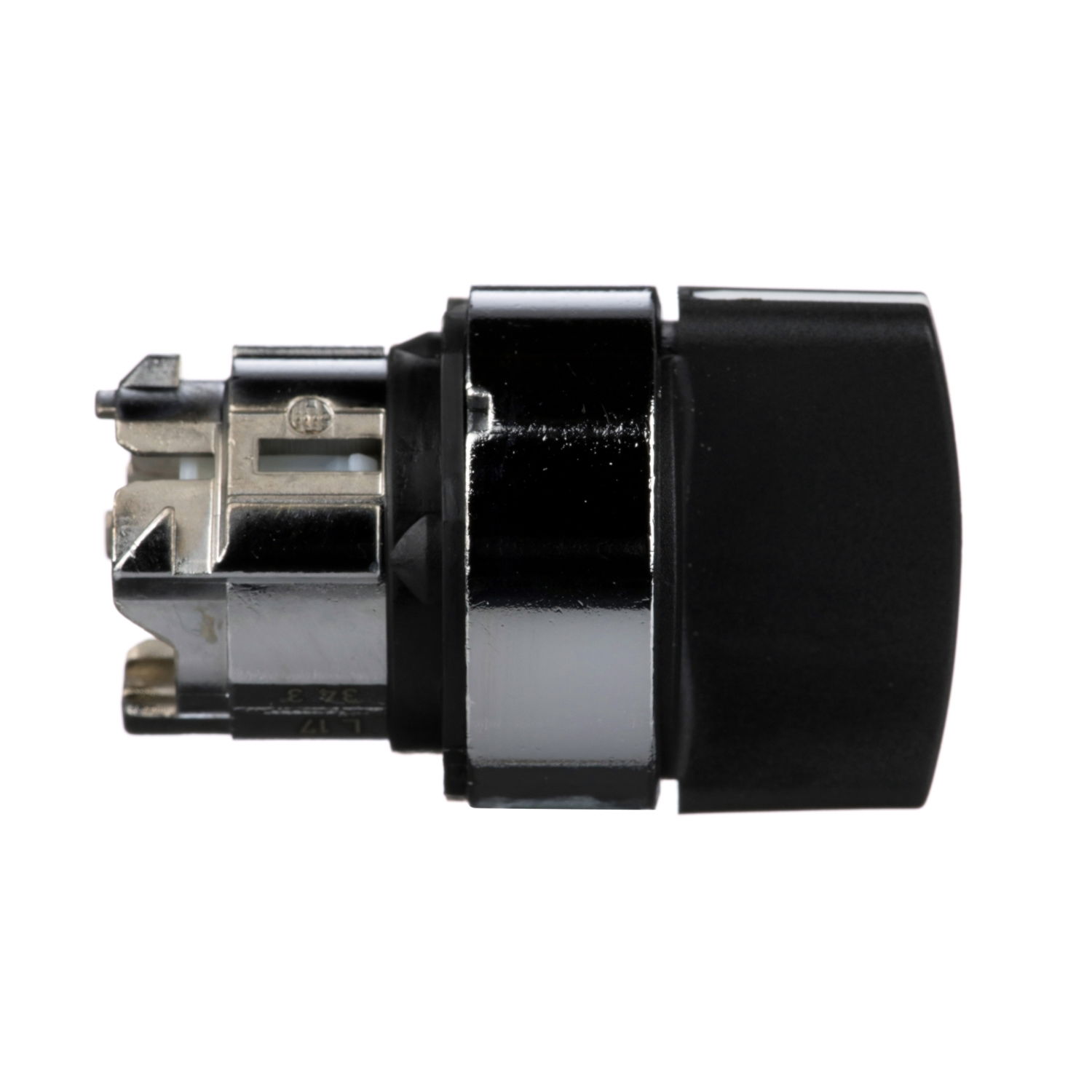

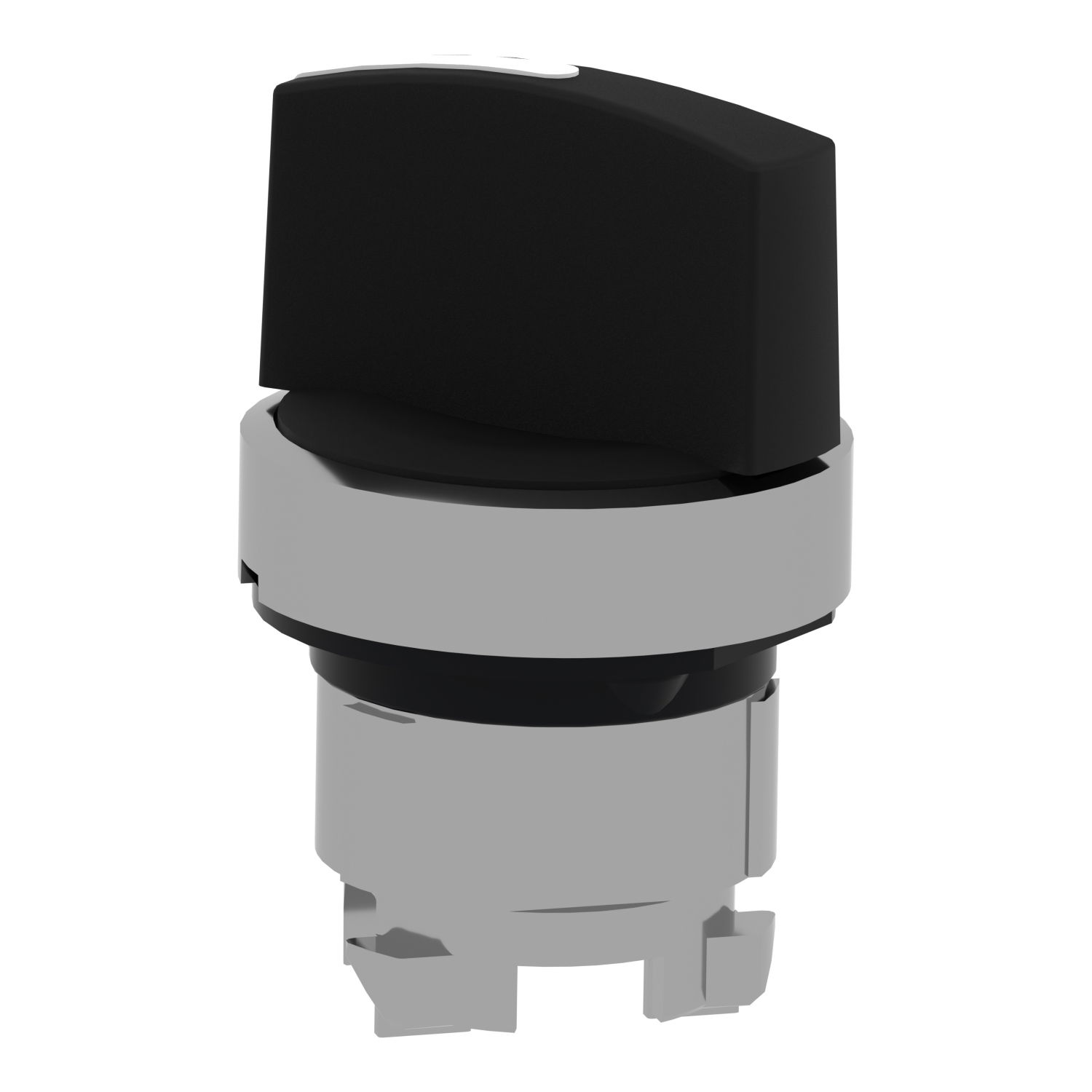

Black selector switch head Ø22 2-position stay put
This Harmony XB4, black selector switch head with standard handle has 2 positions, operates with stay-put mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.
Product identifiers
SKU: ZB4BD2
EAN: 3389110888935
GTIN: 3389110888935
MPN: ZB4BD2
Loyalty points:
5
Price range: £ 7.44 - £ 11.80 Excl. VAT
ETIM Group
Videos
Promotional video
Specifications
| Hole diameter | 22.5 mm |
| Spring-return | no |
| Width opening | - |
| Height opening | - |
| With front ring | yes |
| Colour front ring | Chrome |
| Material front ring | Metal |
| Suitable for lighting | no |
