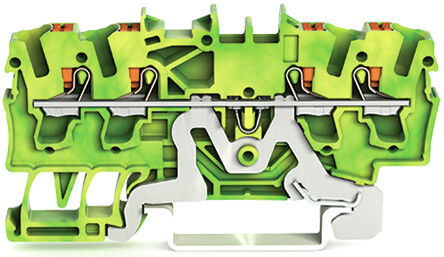

4-conductor ground terminal block with push-button 2.5 mm² green-yellow
Wago

4-conductor ground terminal block with push-button 2.5 mm² green-yellow

4-conductor ground terminal block; with push-button; 2.5 mm²; with test port; side and center marking; for DIN-rail 35 x 15 and 35 x 7.5; Push-in CAGE CLAMP®; 2,50 mm²; green-yellow

Product identifiers

SKU: 2202-1407
EAN: 4055143713917
GTIN: 4055143713917
MPN: 2202-1407

V+ Loyalty points:

7

Price range: £ 3.89 - £ 5.48 Excl. VAT

Categories

Terminal Blocks Terminals, Connectors & Interconnects

Specifications

Depth 32.9
Width 5.2
Colour Green/yellow
Height 69.9
EFNA0008 V0
Mounting method DIN rail (top hat rail) 35 mm
Number of levels 1
Operating temperature 105 - 105
Closing plate required yes
Type of electrical connection 1 Spring clamp connection
Number of clamp positions per level 4
Connectable conductor cross section multi-wired 0.25 - 2.5
Connectable conductor cross section fine-strand without cable end sleeve 0.25 - 4
