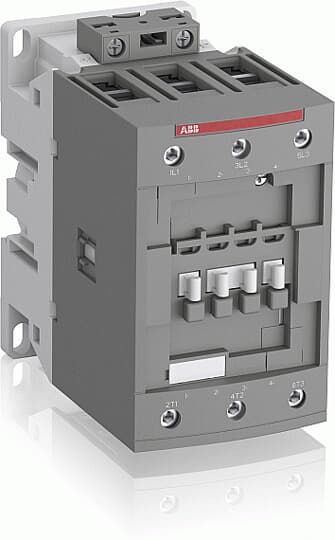

AF96-30-00-14 250-500V50/60HZ-DC Contactor

Name: AF96-30-00-14 250-500V50/60HZ-DC Contactor
Brand: ABB
SKU: 1SBL407001R1400
Availability: InStock

3x rewards on ABB Contactors at TLA

AF96-30-00-14 250-500V50/60HZ-DC Contactor by ABB is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £377.44 to £422.85 excl. VAT. Voltimum+ members earn 208 points per unit.

The AF96-30-00-14 is a 3 pole - 1000 V IEC or 600 UL contactor with screw terminals, controlling motors up to 45 kW / 400 V AC (AC-3) or 60 hp / 480 V UL and switching power circuits up to 130 A (AC-1) or 115 A UL general use. Thanks to the AF technology, the contactor has a wide control voltage range (250-500 V 50/60 Hz and DC), managing large control voltage variations, reducing panel energy consumptions and ensuring distinct operations in unstable networks. Furthermore, surge protection is built-in, offering a compact solution. AF contactors have a block type design, can be easily extended with add-on auxiliary contact blocks and an additional wide range of accessories.

Product identifiers

SKU: 1SBL407001R1400

EAN: 3471523133242

GTIN: 3471523133242

MPN: AF96-30-00-14

Loyalty points: 624

Price range: £ 377.44 - £ 422.85 Excl. VAT

Specifications

Depth	116
Width	70
Height	125.5
Modular version	no
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Rated operation power NEMA	-
Voltage type for actuating	AC/DC
Rated control supply voltage DC
Rated operation power at AC-3, 400 V	45
Rated operation power at AC-4, 400 V	-
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Rated operation current Ie at AC-1, 400 V	130
Rated operation current Ie at AC-3, 400 V	105
Rated operation current Ie at AC-4, 400 V	-
Type of electrical connection of main circuit	Screw connection
Number of normally open contacts as main contact	3
Number of normally closed contacts as main contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
