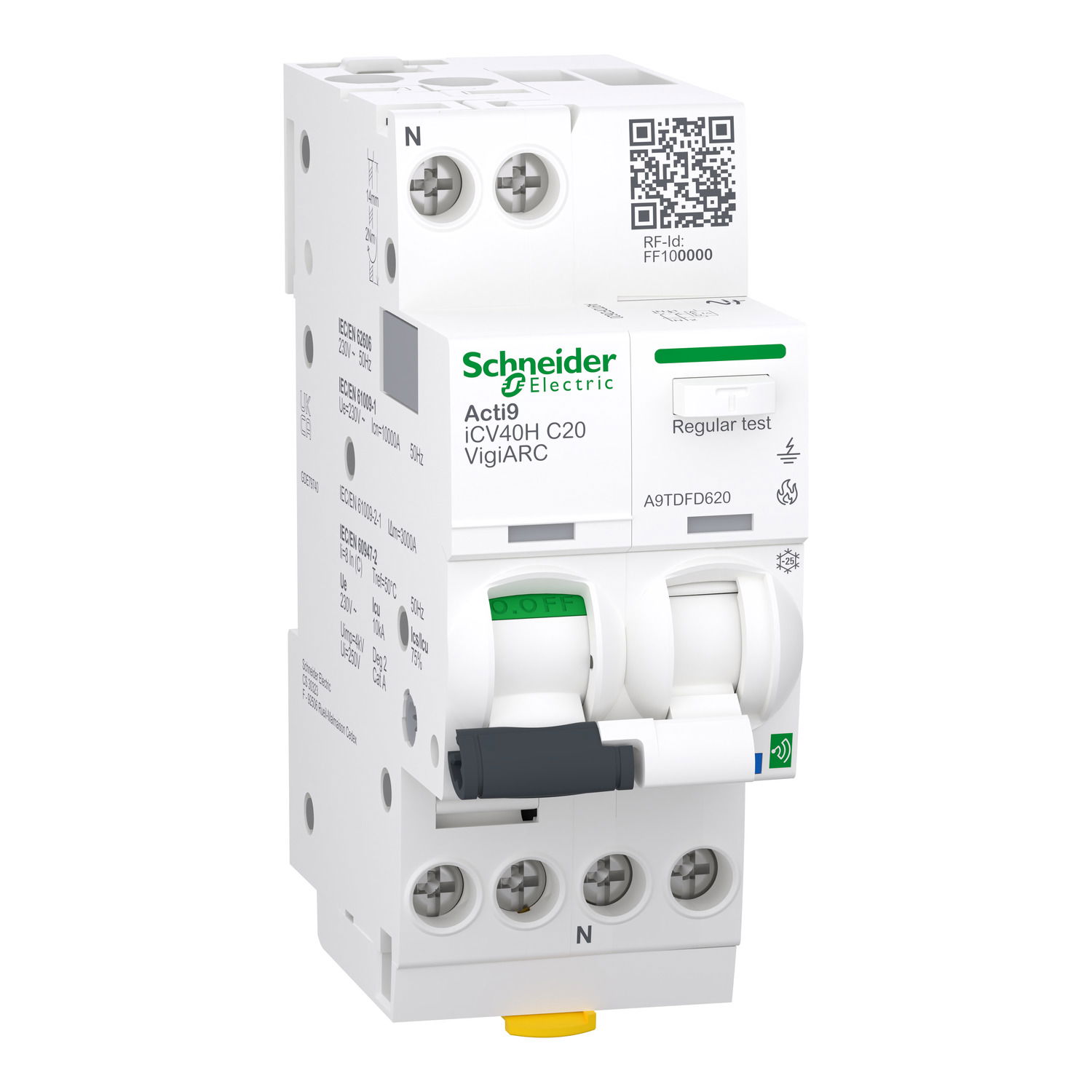

Active arc fault detection RCBO, Acti9 iCV40H ARC, 1P + N, 20 A, C curve, 30 mA, type A-SI, 10000 A

Active arc fault detection RCBO, Acti9 iCV40H ARC, 1P + N, 20 A, C curve, 30 mA, type A-SI, 10000 A by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Rexel Group and City Electrical Factors. It is currently in stock at all of them. Trade price £189.95 excl. VAT. Voltimum+ members earn 54 points per unit.

This Acti9 Active iCV40 ARC product is an arc fault detection RCBO. It is a 1P+N with 1 protected pole, 20A In rated current and C tripping curve. The earth leakage protection class is A-SI type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The rated short circuit breaking capacity goes up to 10000A at 230VAC conforming to EN/IEC 61009-2-1 standard and 10kA at 230VAC conforming to EN/IEC60947-2. This product protects against short circuit, cable overload, electrical shock by indirect contact and fire hazards. The Acti9 Active products communicate with the gateway EcoStruxure Panel Server Entry, Universal and Advanced. Its pre alarming system can prevent any overload, earth leakage and overvoltage. It can also measure the voltage, the current and the power. Its 2 unique VisiTrip indicators reduce intervention time by showing the faulty circuit and identifying quickly the type of default. It has an electrical endurance going up to 10000 cycles and a mechanical endurance going up to 20000 cycles. The Ui rated insulation voltage is 250VAC. Its limitation class 3 (according to EN/IEC60898-1) improves downstream circuit protection cost. The product can be clipped on a DIN rail. Its width is 4 pitches of 9mm. Pollution degree is 2. The product colour is white (RAL9003). The dimensions are (W) 36mm x (H) 91mm x (D)73mm. It has an IP20 degree of protection (as per IEC/EN 60529 standard) and becomes IP40 once in modular enclosure. This product is compliant with EN/IEC 60898-1, EN/IEC 60947-2, EN/IEC 62606, EN/IEC 61009-1 and EN/IEC 61009-2-1 standard.

Product identifiers

SKU: A9TDFD620
EAN: 3606481906793
GTIN: 3606481906793
MPN: A9TDFD620

Voltimum+ Loyalty Programme Loyalty points: 54

Price: £ 189.95 Excl. VAT

Categories

Switchgear & Circuit Protection Circuit Breakers RCBOs

Specifications

Frequency 50 Hz
Rated current 20 A
Rated voltage 230 V
Built-in depth 44 mm
Number of poles 2
Pollution degree 2
Rated fault current 0.03 A
Leakage current type A
Current limiting class 3
Degree of protection (IP) IP20
Width in number of modular spacings 2
Concurrently switching neutral conductor yes
Additional equipment attached at delivery Fire protection switch
Rated short-circuit breaking capacity according to IEC 60947-2 10 kA
