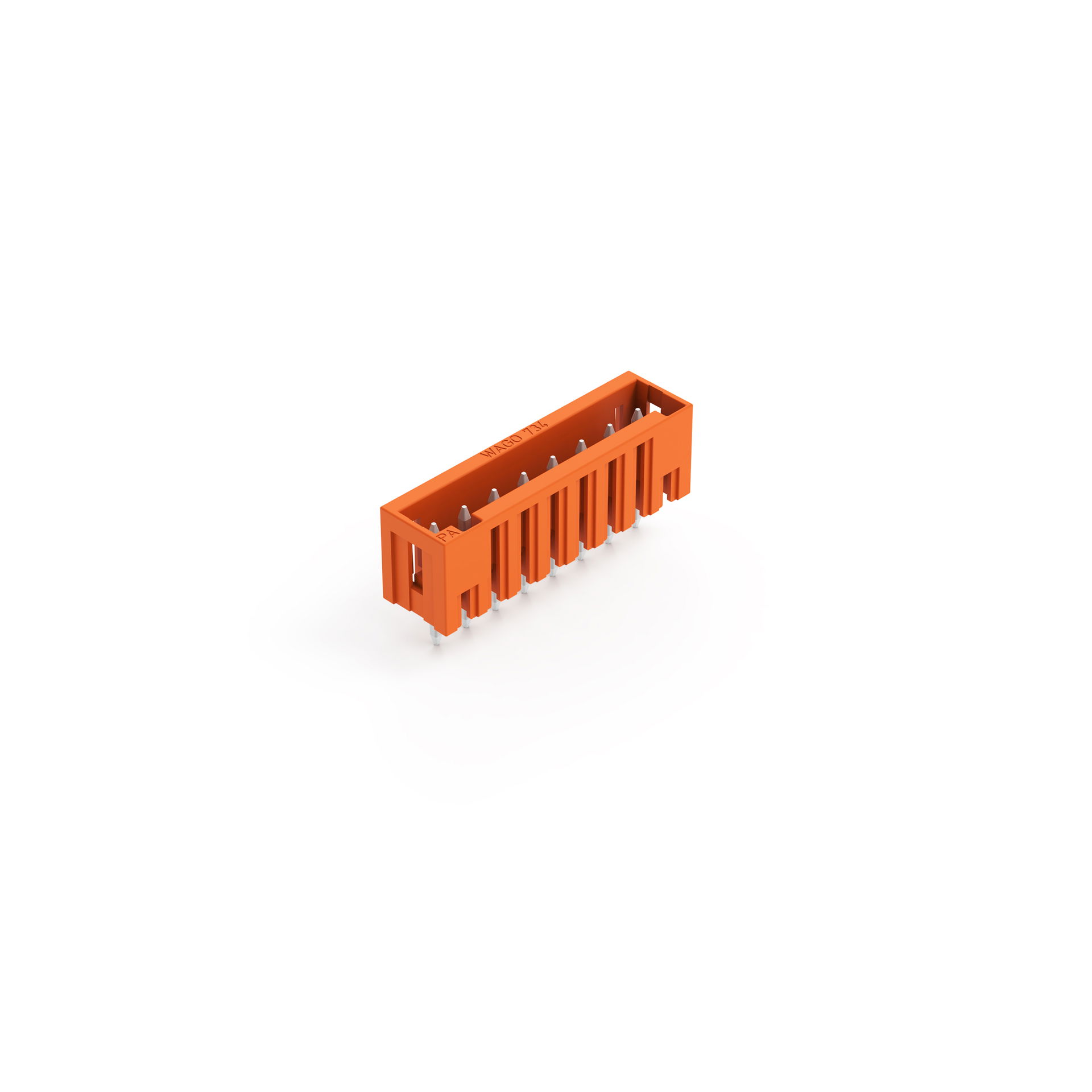

THT male header 1.0 x 1.0 mm solder pin straight orange

Name: THT male header 1.0 x 1.0 mm solder pin straight orange
Brand: Wago
SKU: 734-238
Availability: InStock

THT male header; 1.0 x 1.0 mm solder pin; straight; 100% protected against mismating; Pin spacing 3.81 mm; 8-pole; orange

Product identifiers

SKU: 734-238

EAN: 4044918847933

GTIN: 4044918847933

MPN: 734-238

Loyalty points: 4 (x100)

Price range: £ 1.91 - £ 2.63 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Length pin	4.5
Contact type	Pin
Rated voltage	160
Housing colour	Orange
Connector model	Free connector
Number of poles	8
Type of banding	None
Pollution degree	2
Rated current In	10
Angle PCB/contact	90° (upwards vertical)
Type of fastening	Solder
Type of connection	Flexible PCB-connector
Rated surge voltage	2.5
Operating temperature	-60 - 100
Over voltage category	III
Type of PCB fastening	Connecting contact
Diameter connection pin	-
Material insulation body	Thermoplastic
Modular spacing contacts	3.81
Suitable for PCB thickness	1.5
Material of contact surface	Tin
Modular spacing connections	3.81
Type of electric connection	Soldering connection
RAL-number (similar) housing	-
Number of plug-in contact rows	1
