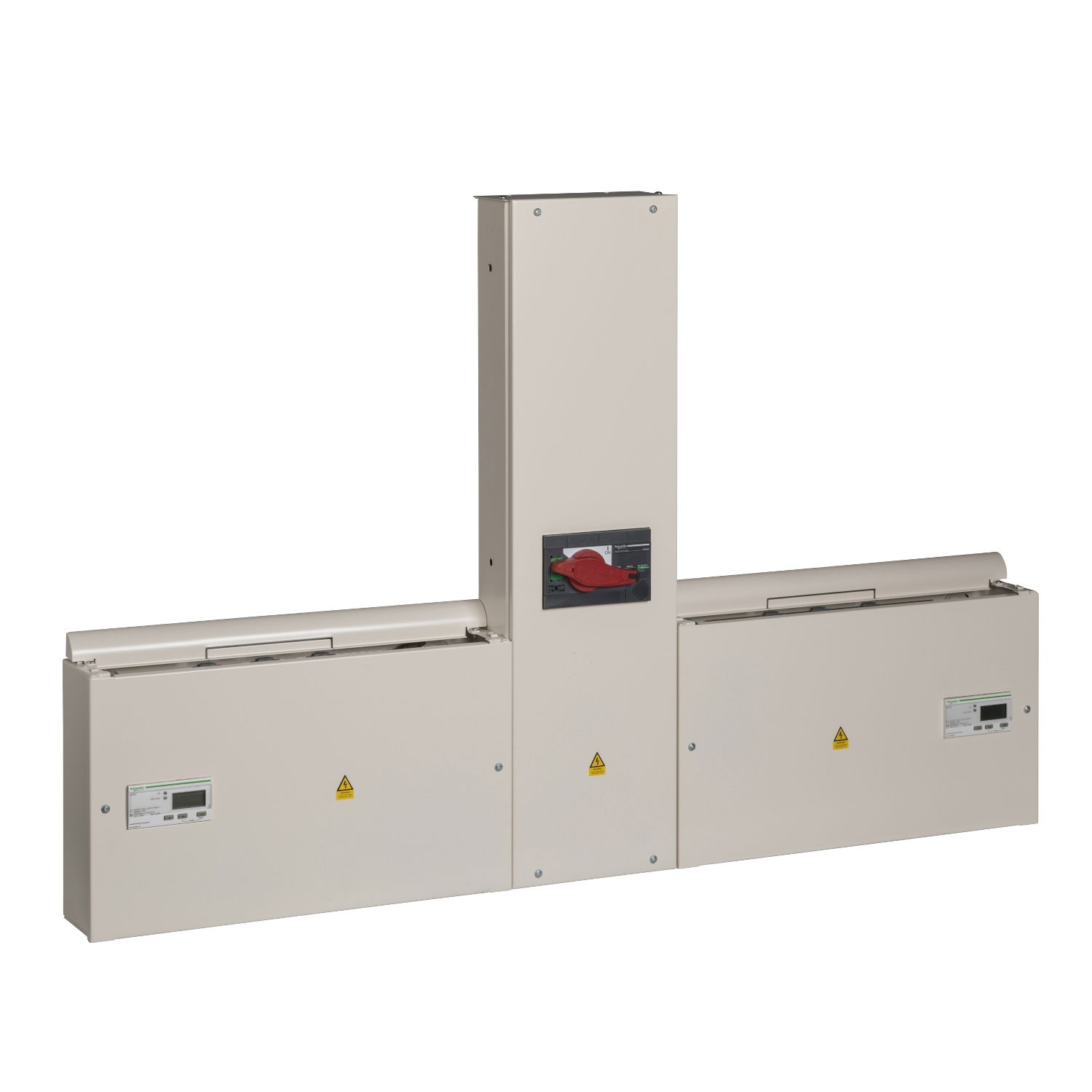

Acti9 DB - Dual metered extension enclosure - interpact SD - 160A

Link copied
SKU
EAN
GTIN
MPN

Acti9 DB - Dual metered extension enclosure - interpact SD - 160A by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Rexel Group, and currently in stock. Voltimum+ members earn 482 points per unit.

This Acti9 Isobar A product is a 4P dual metered extension enclosure, up to 160A. It is a MID 3 Phase kit Modbus communication and pulsed output product. It is suitable for standard, commercial and industrial applications. The dimensions are (W) 1150mm x (H) 270mm x (D) 132mm. It is provided with an extension box and front door is in steel. According to BS/EN 60529, the IP degree of protection is IP3x. The color of this distribution board is white (RAL9001).

Voltimum+ Loyalty Programme Loyalty points: 482

Price: £ 2,894.00 Excl. VAT

Specifications

Depth 132 mm
Width 1150 mm
Colour White
Height 270 mm
DIN-rail no
With lock no
RAL-number 9001
Cover model Closed
Inner depth -
UV resistant no
Built-in width -
Built-in height -
Type of closure Other
Type of covering Cover
Signal passing door no
Neutral terminal block no
Earthing terminal block no
Width in number of modular spacings -
