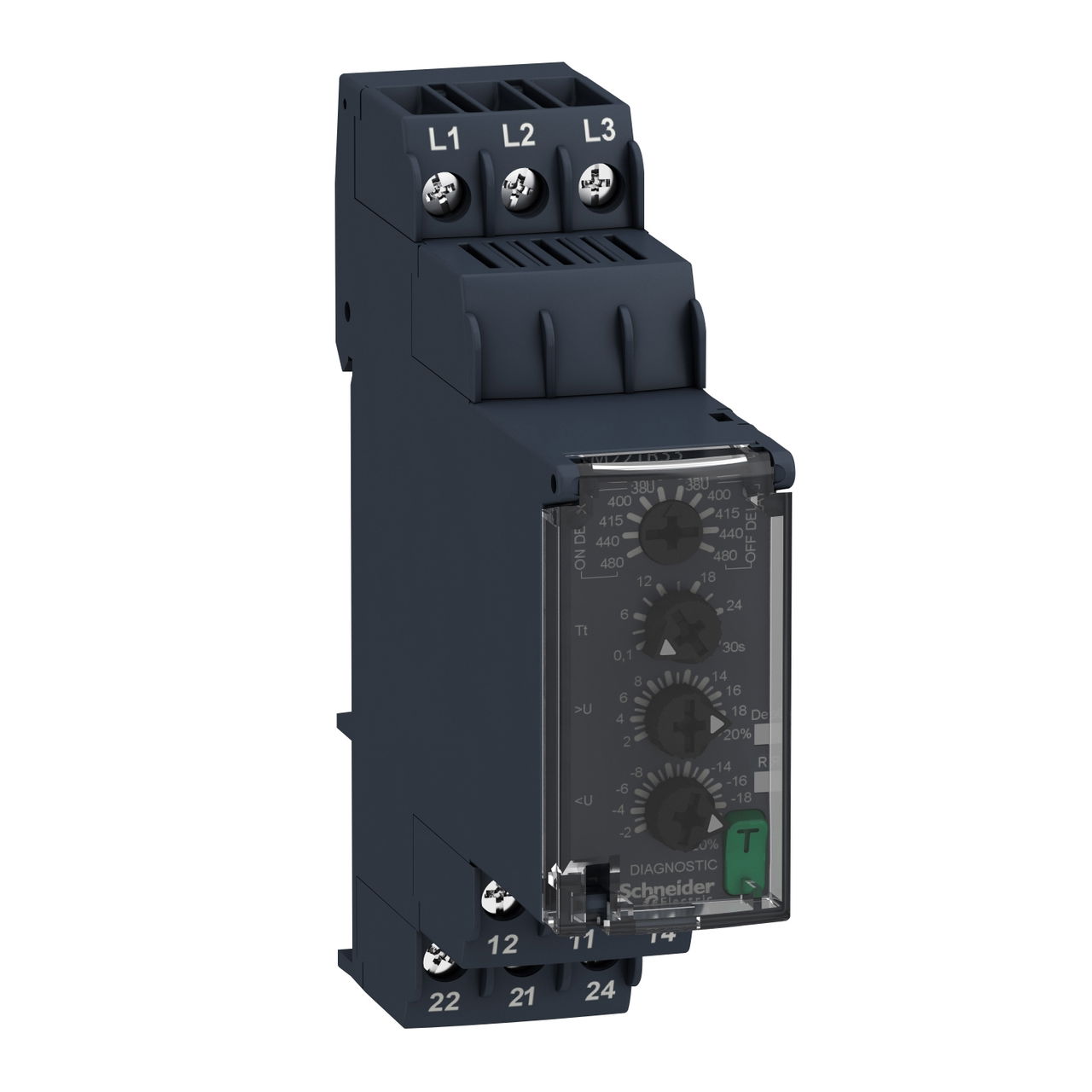

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 2 of 9

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 3 of 9

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 4 of 9

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 5 of 9

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 6 of 9

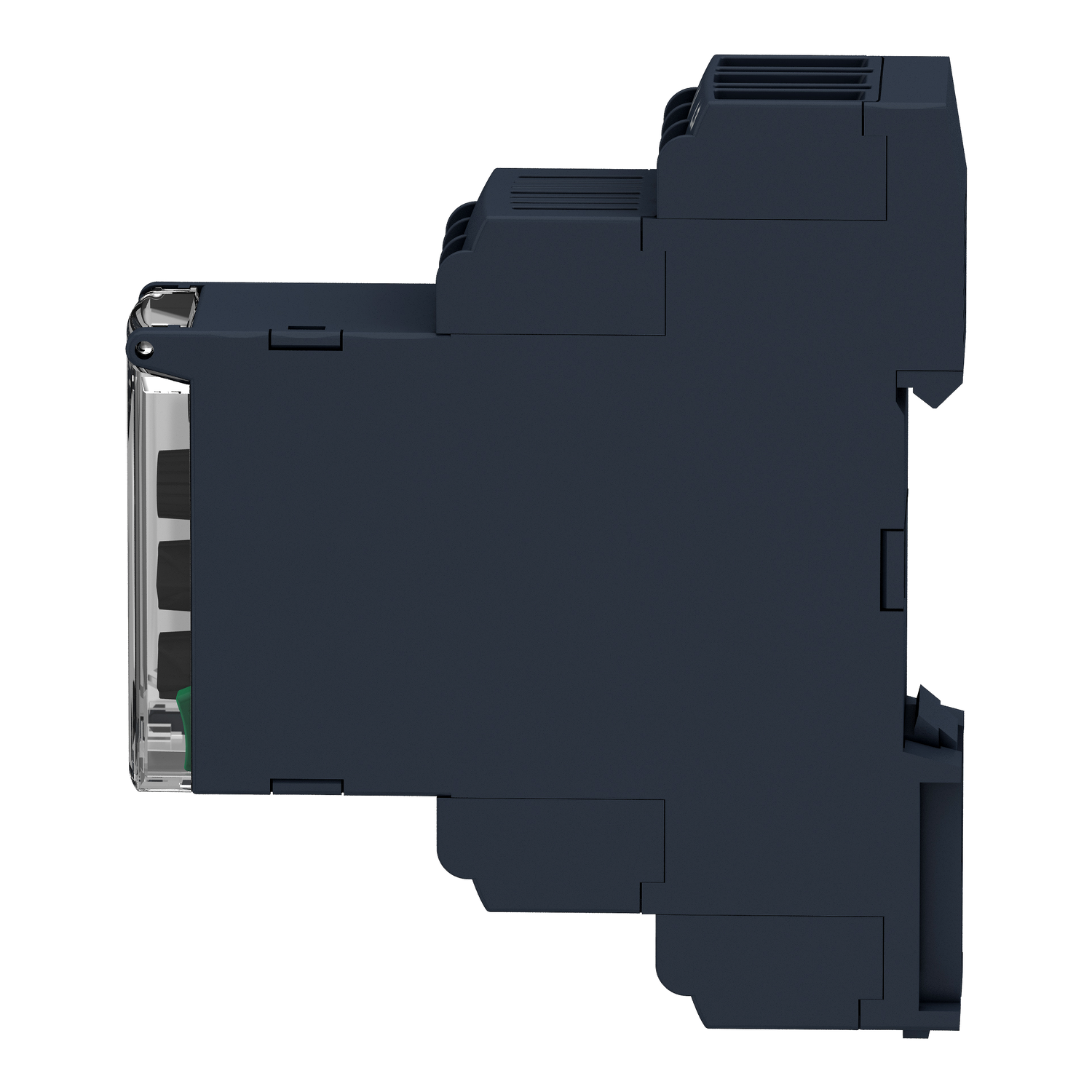

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 7 of 9

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC – Image 8 of 9

1 / 9

Popularity Top 60%

Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC

Name: Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC
Brand: Schneider Electric
SKU: RM22TR33
Availability: InStock

Modular 3-phase control relay, 8 A, 2 CO, 380...480 V AC by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £91.09 to £146.21 excl. VAT. Voltimum+ members earn 19 points per unit.

This Harmony RM22-TR relay allows monitoring of phase and undervoltage/overtage in 3-phase networks. This modular multi function 3-phase control relay is ideal for monitoring of electrical values in industrial and building control panels. It applies to a wide type of industrial automation applications such as hoisting, packaging, lifts, textile, water. It has one of market slim form-factors with 22.5mm width, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a diagnostic button, sealable cover, simple and precise settings with screw trimmers. It provides automatic shutdown management and fault information to user for a quick fault identification and troubleshooting. multi function controller for wide choice selected in hard-wired logic automated systems, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0

Product identifiers

SKU: RM22TR33

EAN: 3606480792199

GTIN: 3606480792199

MPN: RM22TR33

Loyalty points: 19

Price range: £ 91.09 - £ 146.21 Excl. VAT

Specifications

Depth	73 mm
Width	22.5 mm
Height	90 mm
Supply voltage DC
Operating voltage DC
Rated switch current	-
With detachable clamps	no
Phase failure detection	yes
Supply voltage AC 50 Hz
Supply voltage AC 60 Hz
Voltage measuring range
Phase sequence monitoring	yes
Operating voltage AC 50 Hz
Operating voltage AC 60 Hz
Phase imbalance monitoring	no
Type of electric connection	Screw connection
Max. permitted off-delay time	30 s
Voltage type (supply voltage)	-
External power supply required	-
Min. adjustable off-delay time	0.1 s
Function over voltage detection	yes
Function under voltage detection	yes
Voltage type (operating voltage)	-
Max. permitted delay-on energization time	30 s
Number of contacts as change-over contact	2
Min. adjustable delay-on energization time	0.1 s
Number of contacts as normally open contact	0
Number of contacts as normally closed contact	0
