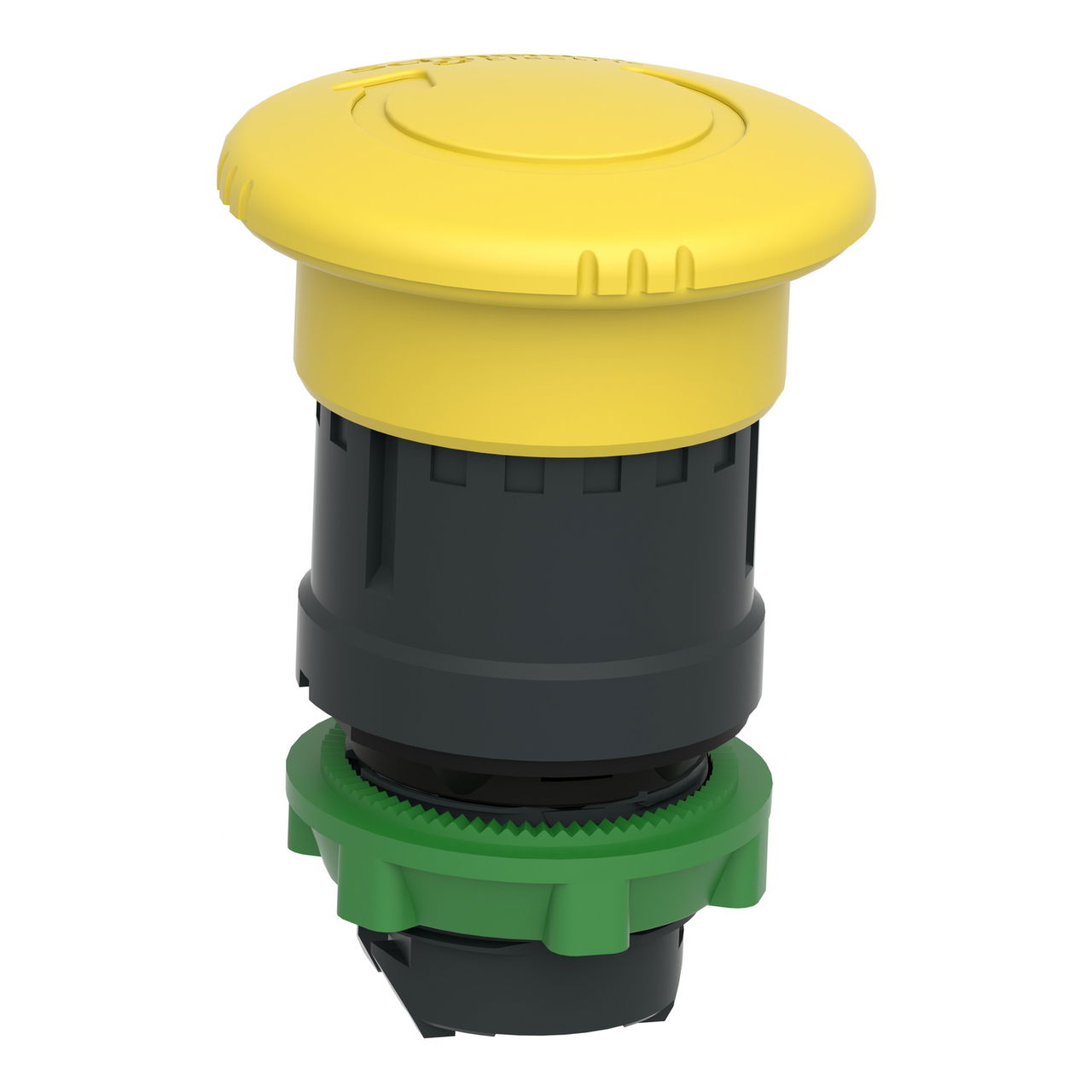

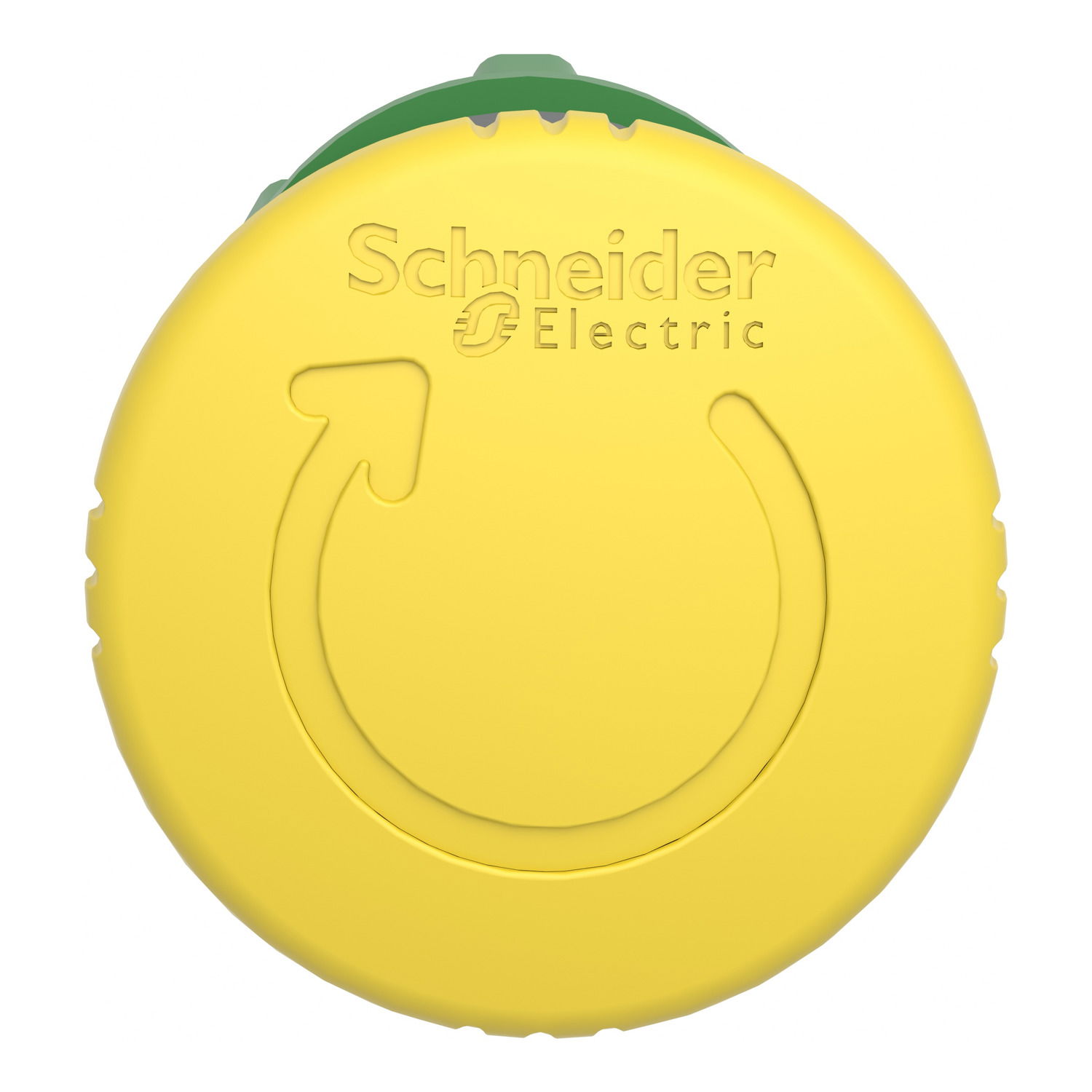

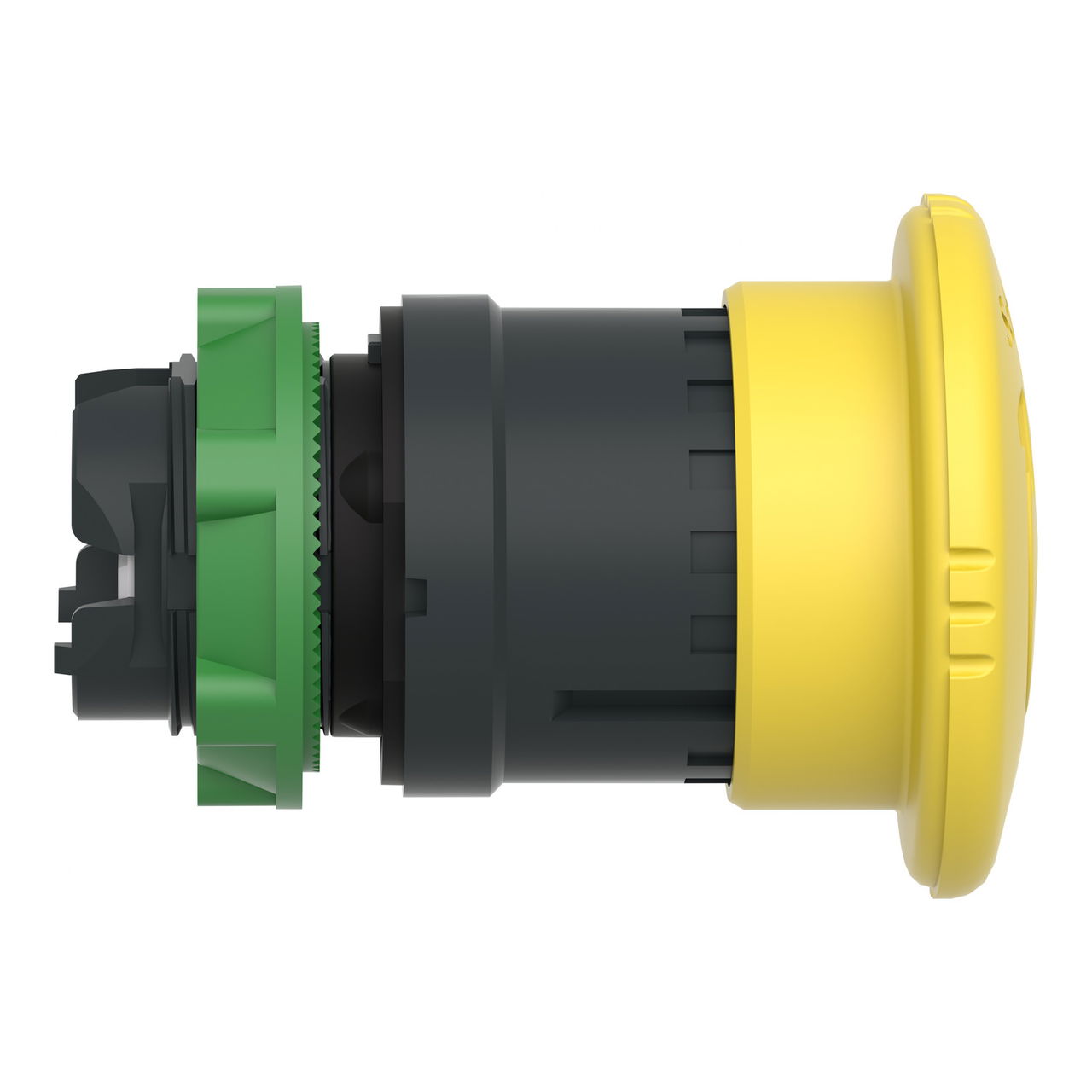

Yellow Ø40 mushroom pushbutton head Ø22 latching turn release

Link copied
SKU
EAN
GTIN
MPN

Yellow Ø40 mushroom pushbutton head Ø22 latching turn release by Schneider Electric is listed by 4 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 1 more. It is currently in stock at 2 of them. Trade prices range from £22.69 to £22.92 excl. VAT. Voltimum+ members earn 3 points per unit.

This yellow 40mm mushroom shaped push button head is ideal when quick actions are required. It fits for a process or machine to function correctly or where operator movements require highest ergonomy. It is easily combined with Harmony range of contact blocks to perform a large variety of control functions. It is clearly distinguishable visually at a distance thanks to a prominent 40mm mushroom shape. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66. It makes it ideal for operation in harsh environments.

Voltimum+ Loyalty Programme Loyalty points: 3

Price range: £ 22.69 - £ 22.92 Excl. VAT

Specifications

Diameter cap 40 mm
Colour button Yellow
Hole diameter 22.5 mm
Spring-return no
Width opening -
With lighting no
Height opening -
Type of button High
Unlocking method Turn-release
Material front ring Plastic
Suitable for lighting no
Degree of protection (IP) IP66
Suitable for emergency stop no

Documents

Declaration of Conformity (Sustainability)

ZB5AS55 REACh Regulation

Open

Instruction sheet

XB4-XB5 - Mounting, Instruction Sheet

Open

Product data sheet

Open

Catalog

Discover the Harmony XB5 plastic Control and signaling units catalog

Open

Declaration of Conformity (Sustainability)

ZB5AS55 EU RoHS Directive

Open

Declaration of conformity

XB4B, XB5A/D/E/K, Control and signaling units, XD4P, XD5P Joystick Controllers

Open

Environmental Disclosure

Harmony XB5 Pilot Light

Open

Circularity Profile

Harmony XB5 Pilot Light

Open
