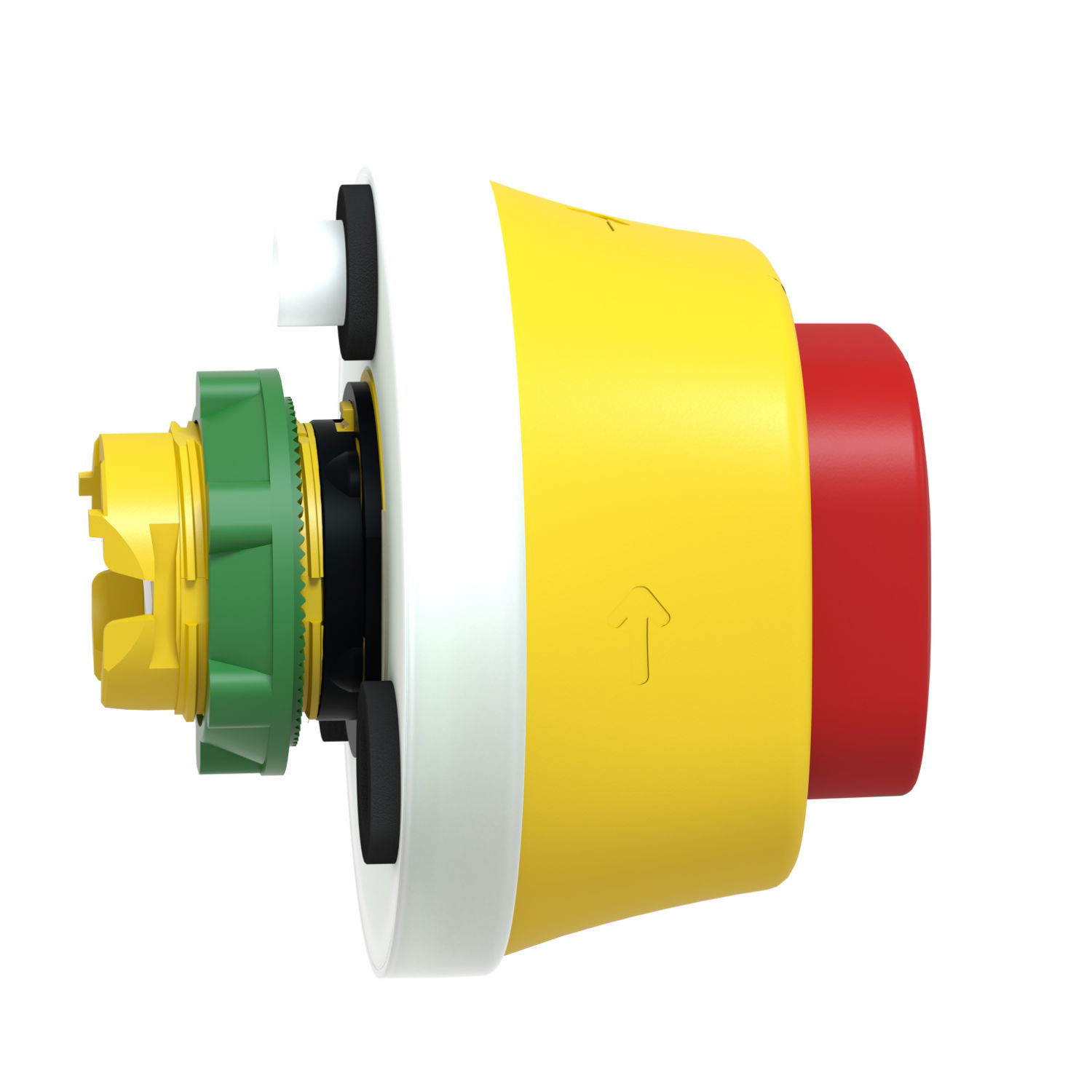

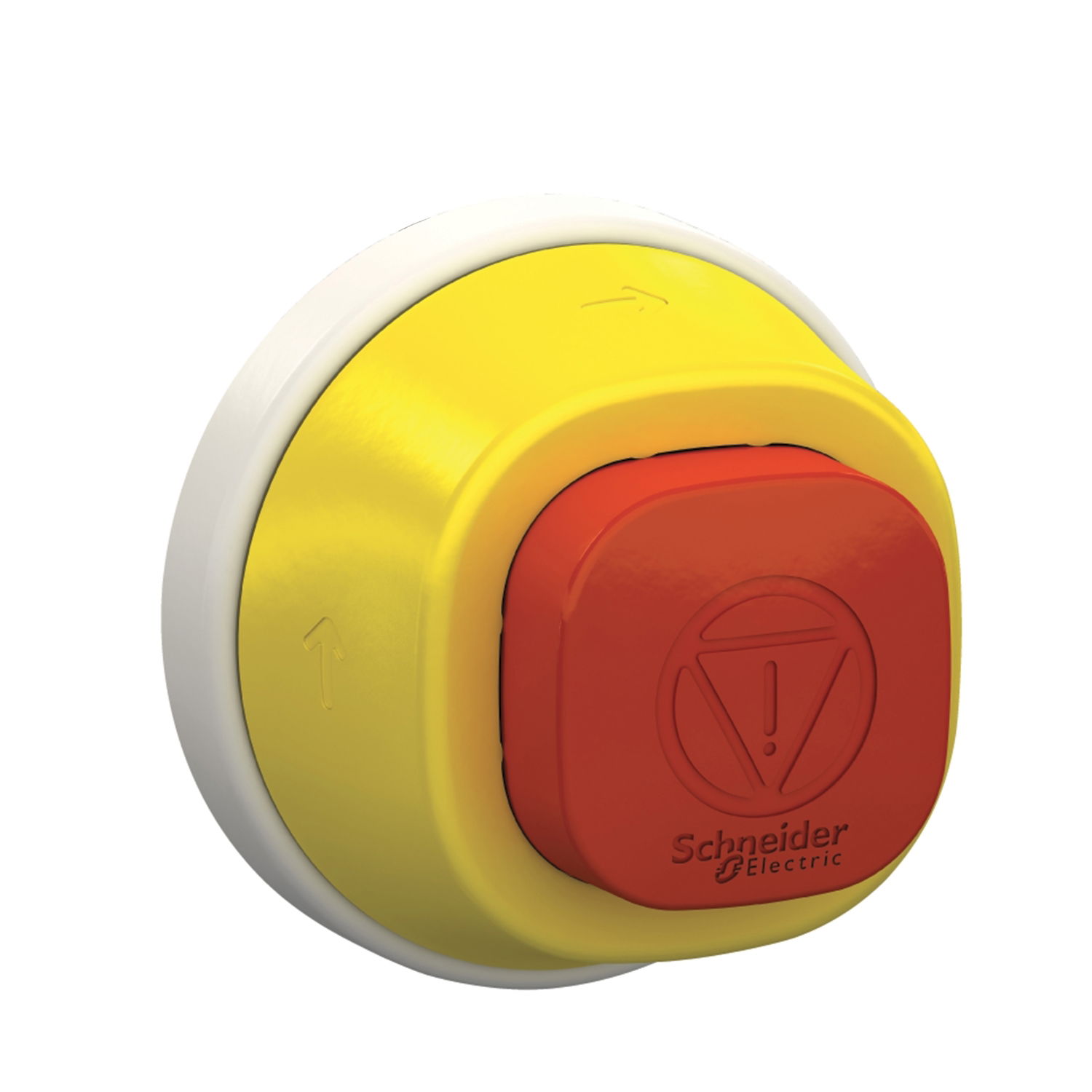

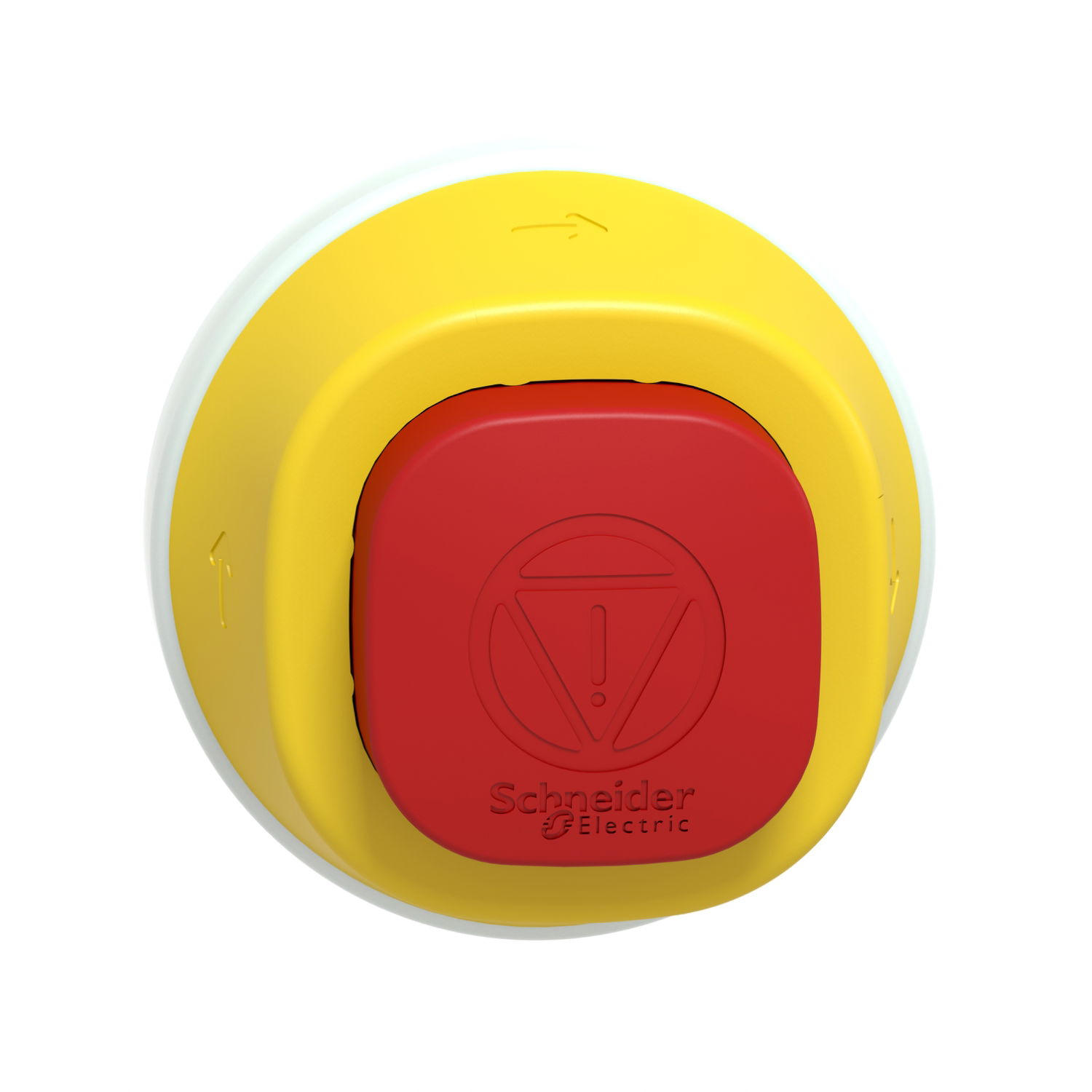

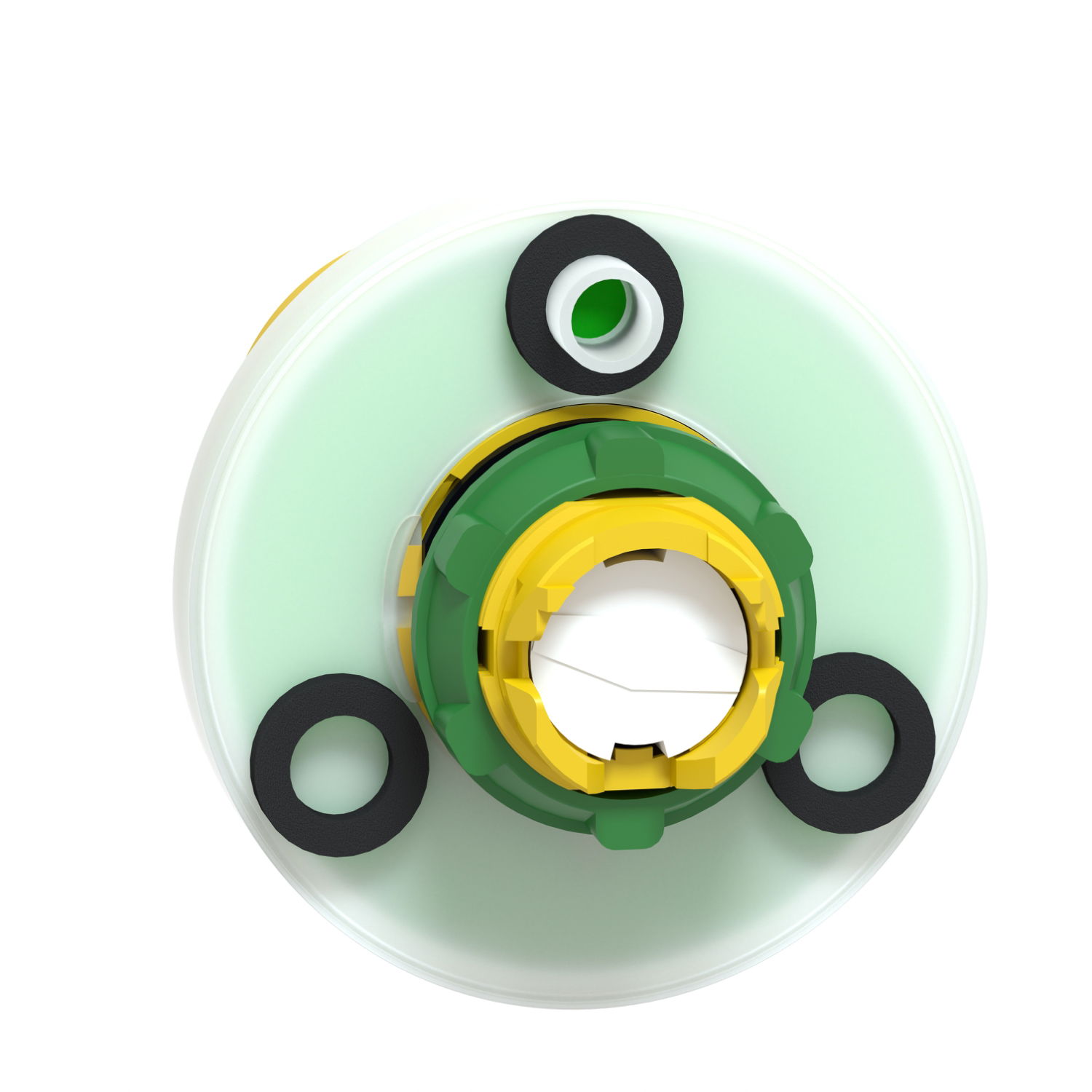

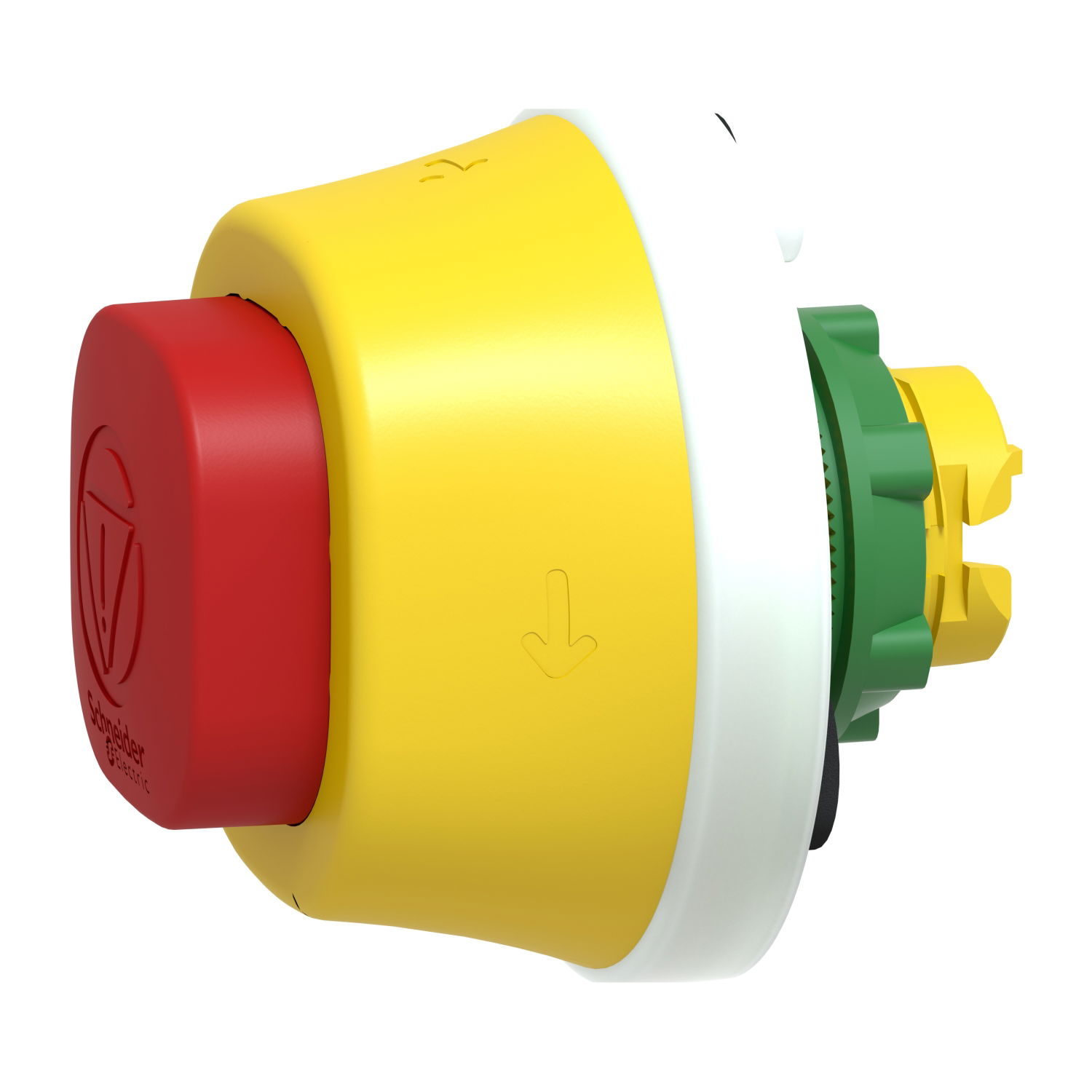

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC – Image 2 of 8

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC – Image 3 of 8

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC – Image 4 of 8

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC – Image 5 of 8

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC – Image 6 of 8

1 / 8

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC

Name: Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC
Brand: Schneider Electric
SKU: ZB5AS84W2G
Availability: InStock

Harmony XB5, Illuminated emergency stop head, plastic, red, Ø22, trigger latching turn to release, red LED, 110...120 V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £106.49 excl. VAT. Voltimum+ members earn 6 points per unit.

This emergency stop / shutdown button head is easily combined with contact blocks and installed into standard 22mm diameter cut-outs. It comes with antimicrobial characteristics. It is clearly distinguishable visually at a distance thanks to a clear color and a prominent 32mm red square push button. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67, IP69 / IP69K, making it ideal for operation in harsh environments.

Product identifiers

SKU: ZB5AS84W2G

EAN: 3606489744953

GTIN: 3606489744953

MPN: ZB5AS84W2G

Loyalty points: 6

Price: £ 106.49 Excl. VAT

Specifications

Diameter cap	40 mm
Colour button	Red/green
Hole diameter	22.5 mm
Spring-return	no
Width opening	-
With lighting	yes
Height opening	-
Type of button	High
With front ring	yes
Unlocking method	Turn-release
Colour front ring	Black
Material front ring	Plastic
Supply voltage lamp	-
Suitable for lighting	yes
Construction type lens	Round
Degree of protection (IP)	IP66
Degree of protection (NEMA)	4X
Suitable for emergency stop	yes
Switching function latching	yes
