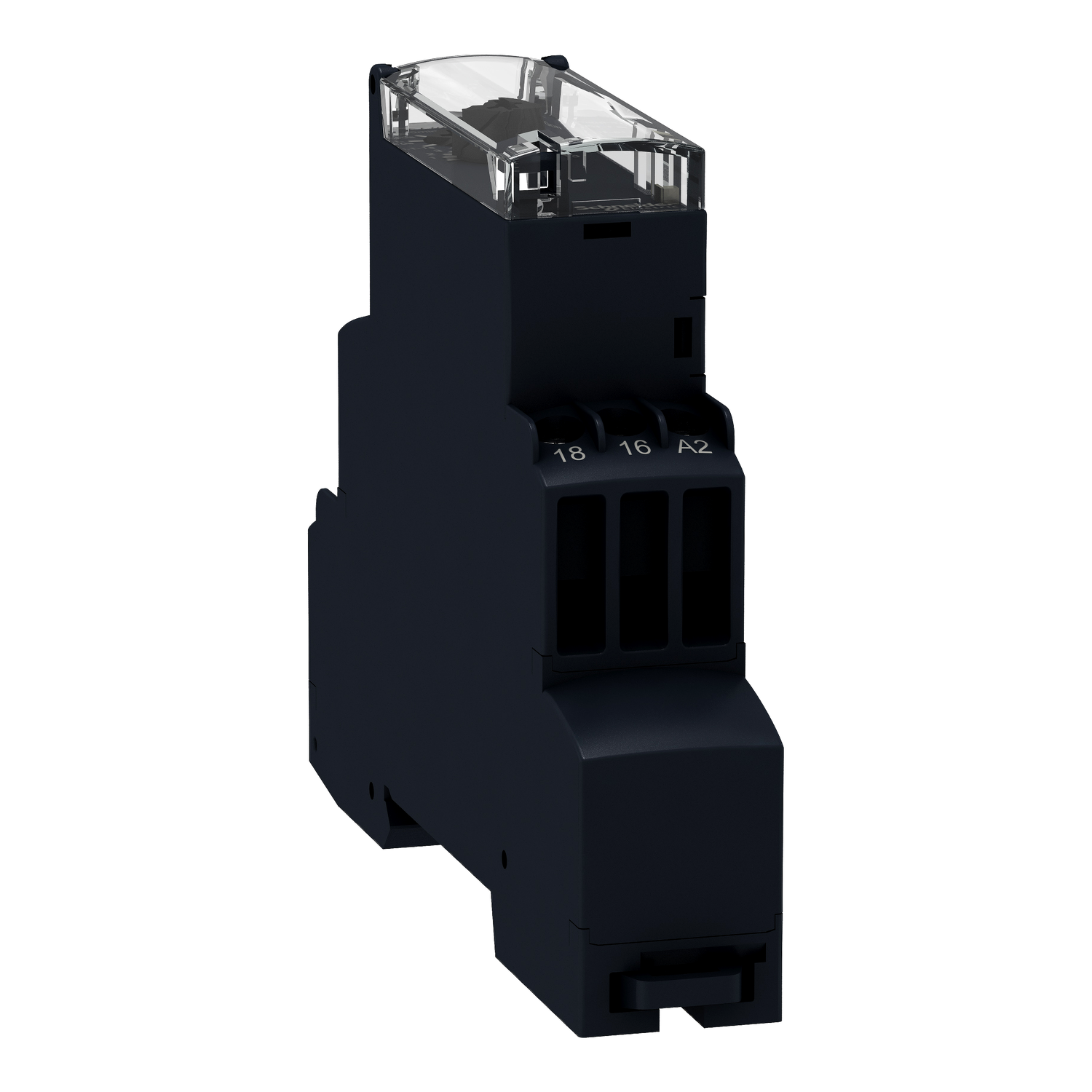

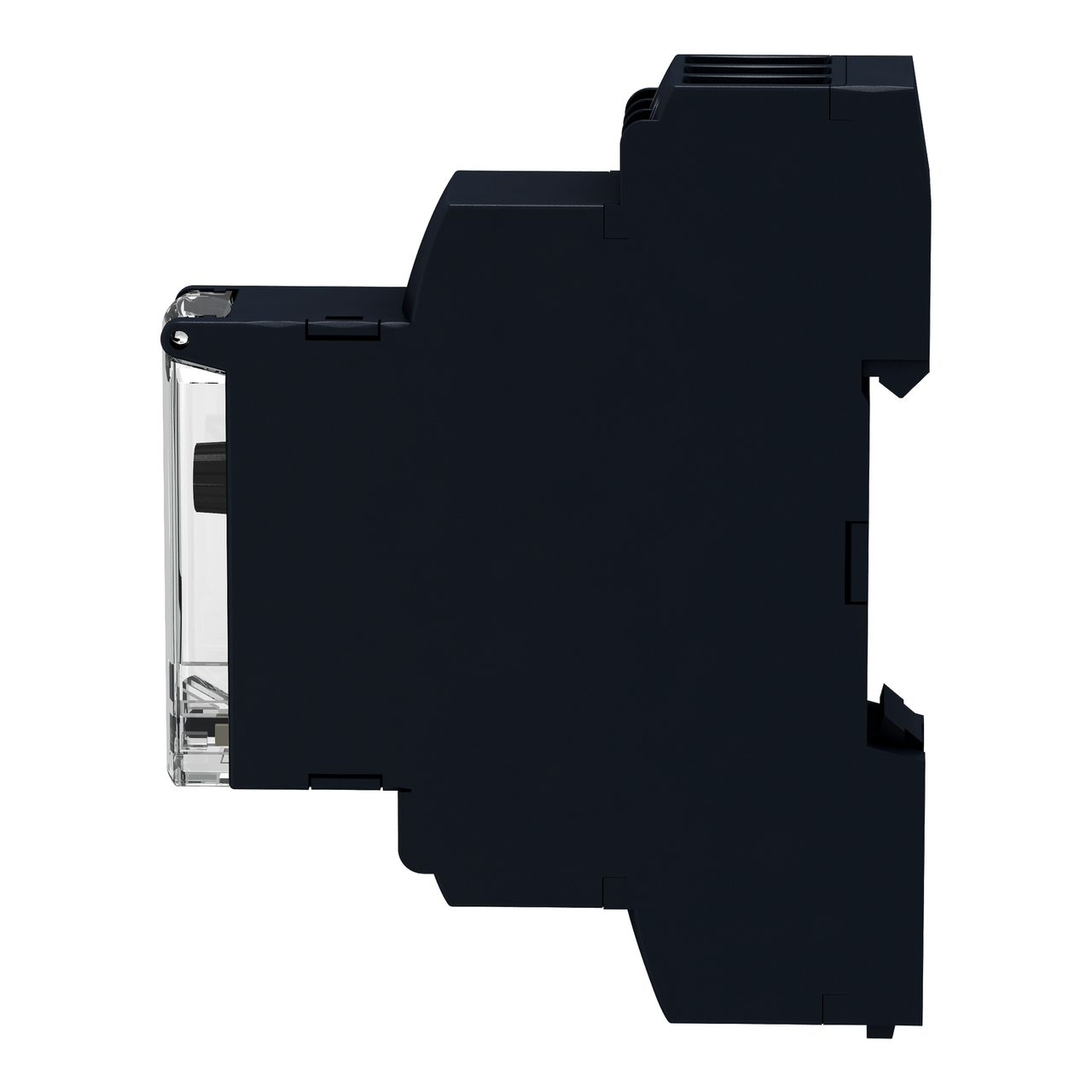

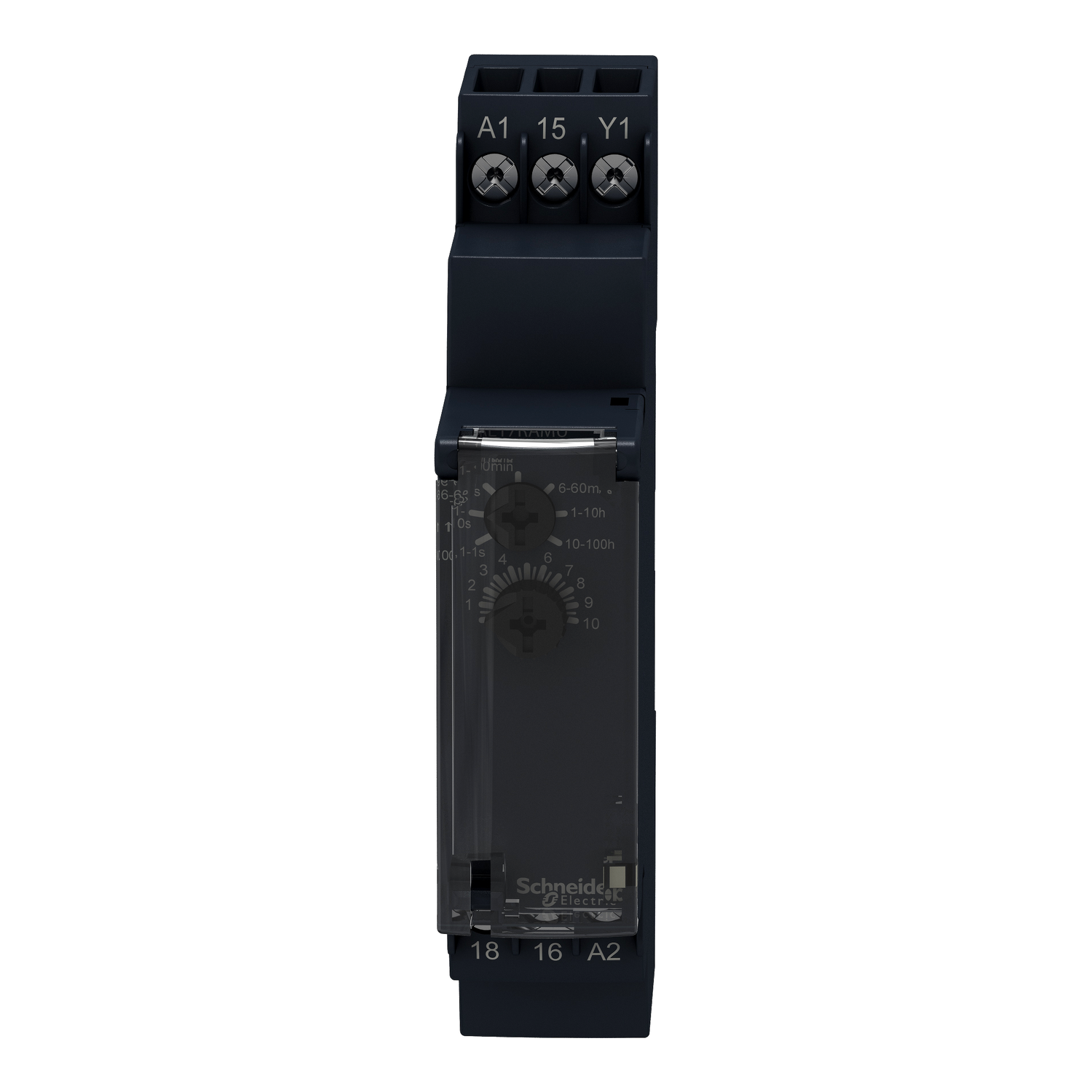

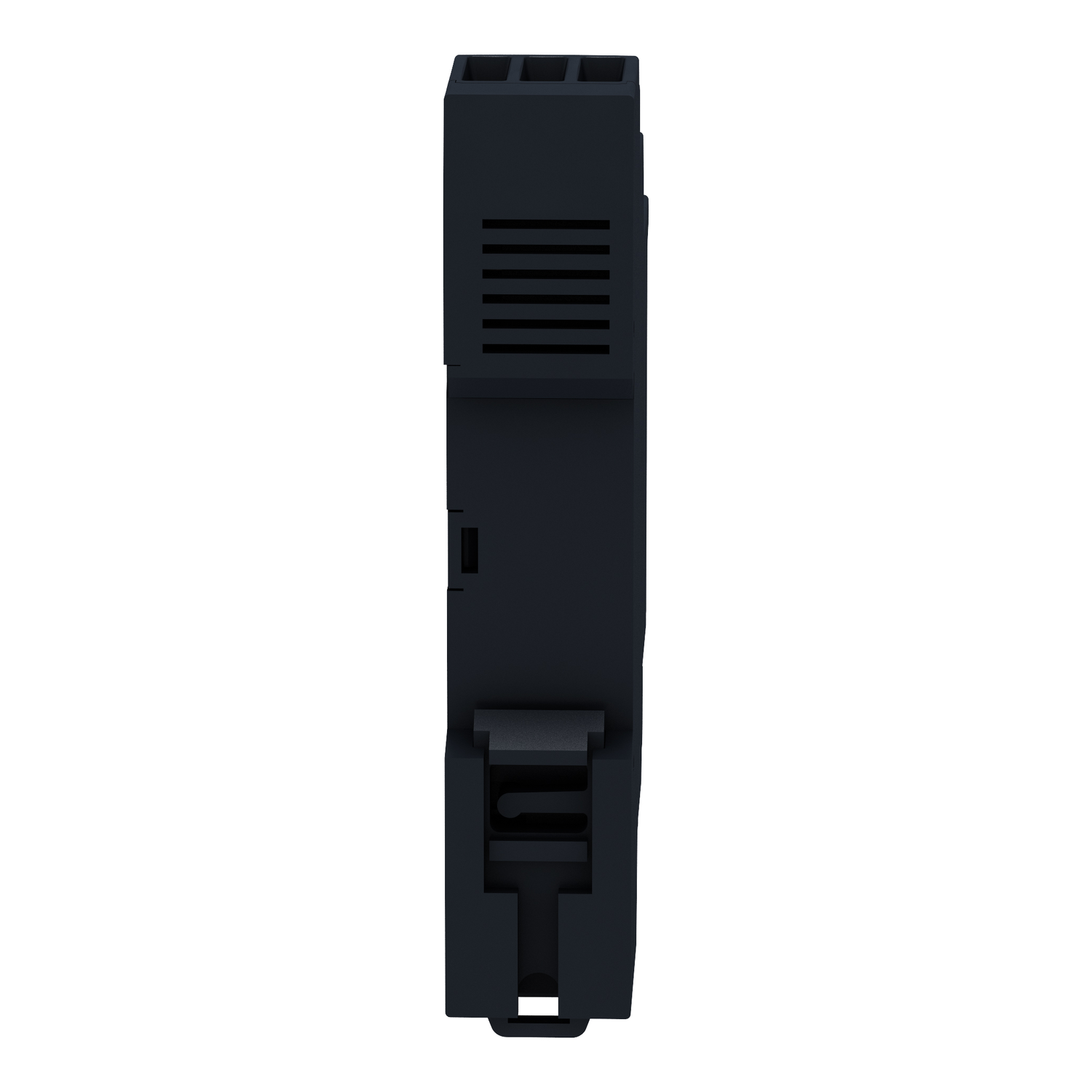

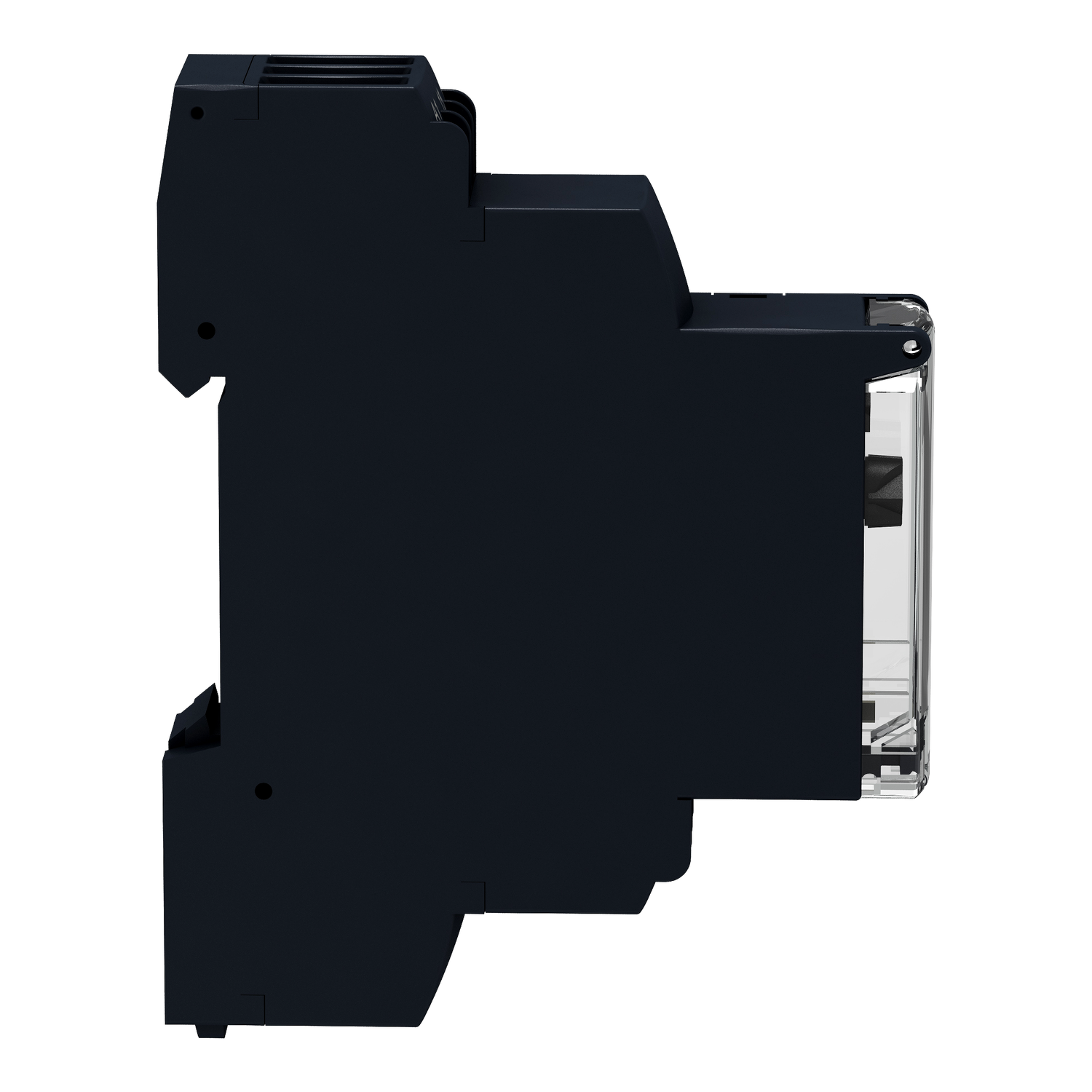

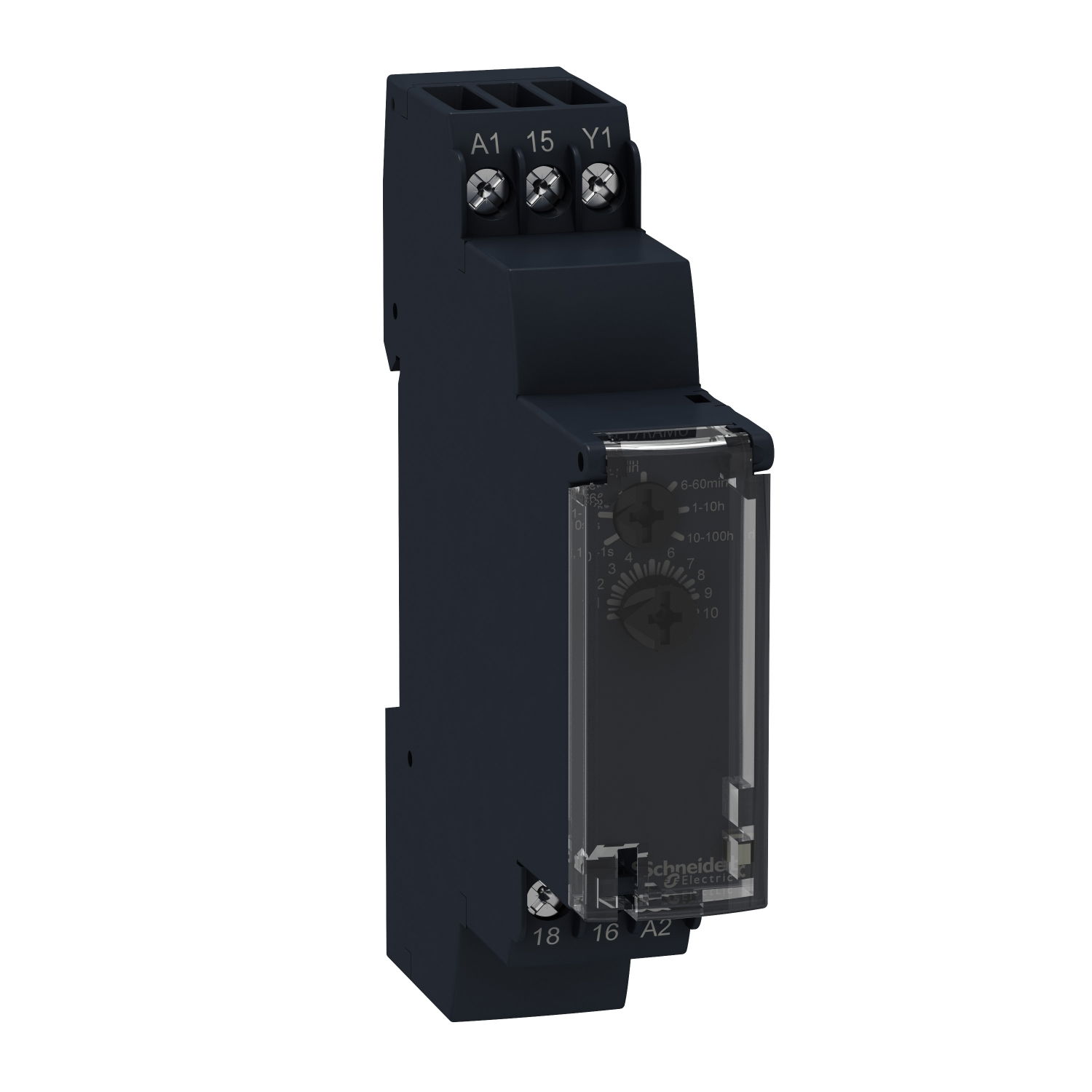

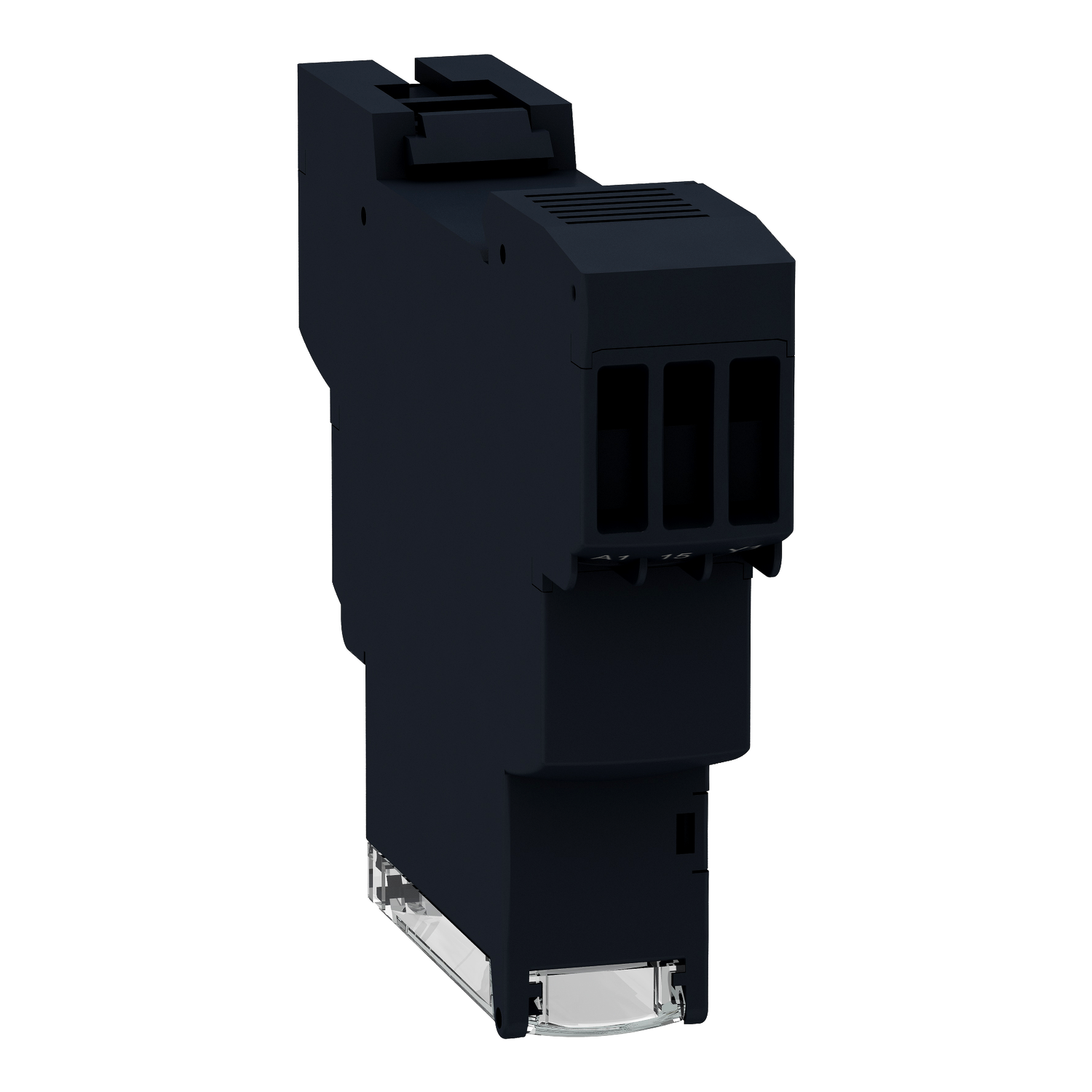

Modular timing relay, 8 A, 1 CO, 1 s..100 h, on delay, 24...240 V AC
This Harmony RE17R timing relay can be set between 0.1 seconds and 100 hours, has an output rating of 8A, is 17.5mm wide and can be supplied with 24 V DC, 24 to 240 V AC. It also has 1 changeover contact SPDT (single pole double throw). It has one of market slimmest form-factors, allowing for a flexible and easy installation on DIN rail, using the same space as any modular 1-pole DIN device. It also offers a sealable cover, simple and precise settings with rotary trimmers. This timer offers pause and summation control signals. Single function timer for a simple integration in hard-wired logic schematics, ideal for refurbishment of old installations without using a PLC. 0 0 0 0 0 0 0 0 0 0 0 0 0
Product identifiers
SKU: RE17RAMU
EAN: 3606480552670
GTIN: 3606480552670
MPN: RE17RAMU
Loyalty points: 16
Price range: £ 25.13 - £ 39.35 Excl. VAT
Categories
Features
|
Depth
|
72 mm
|
|
Width
|
17.5 mm
|
|
Height
|
90 mm
|
|
Time range
|
|
|
Nominal current
|
8 A
|
|
Material contact
|
-
|
|
Function star-delta
|
FALSE
|
|
Complete with socket
|
-
|
|
Operating voltage DC
|
|
|
Max. starting current
|
-
|
|
Function pulse shaping
|
FALSE
|
|
Degree of protection (IP)
|
IP20
|
|
Remote operation possible
|
FALSE
|
|
With semiconductor output
|
FALSE
|
|
Material of contact insert
|
-
|
|
Operating voltage AC 50 Hz
|
|
|
Operating voltage AC 60 Hz
|
|
|
Suitable as remote control
|
FALSE
|
|
Voltage type for actuating
|
AC/DC
|
|
Material of contact surface
|
-
|
|
Suitable for front mounting
|
-
|
|
Type of electric connection
|
Screw connection
|
|
Function delay-on energization
|
TRUE
|
|
Rated control supply voltage DC
|
|
|
Voltage type (operating voltage)
|
-
|
|
Function delay on de-energization
|
FALSE
|
|
Pluggable on auxiliary contact block
|
FALSE
|
|
Outputs, reversible delayed/undelayed
|
FALSE
|
|
Rated control supply voltage AC 50 Hz
|
|
|
Rated control supply voltage AC 60 Hz
|
|
|
Function floating contact on energization
|
FALSE
|
|
Function floating contact on de-energization
|
FALSE
|
|
Clock function, starting with pause, variable
|
FALSE
|
|
Clock function, starting with pulse, variable
|
FALSE
|
|
Suitable for DIN rail (top hat rail) mounting
|
TRUE
|
|
Number of outputs, delayed, change-over contact
|
1
|
|
Number of outputs, delayed, normally open contact
|
0
|
|
Number of outputs, undelayed, change-over contact
|
1
|
|
Function flashing, starting with pause, fixed time
|
FALSE
|
|
Function flashing, starting with pulse, fixed time
|
FALSE
|
|
Relay technology category according to IEC 61810-7
|
-
|
|
Number of outputs, delayed, normally closed contact
|
0
|
|
Number of outputs, undelayed, normally open contact
|
0
|
|
Number of outputs, undelayed, normally closed contact
|
0
|
