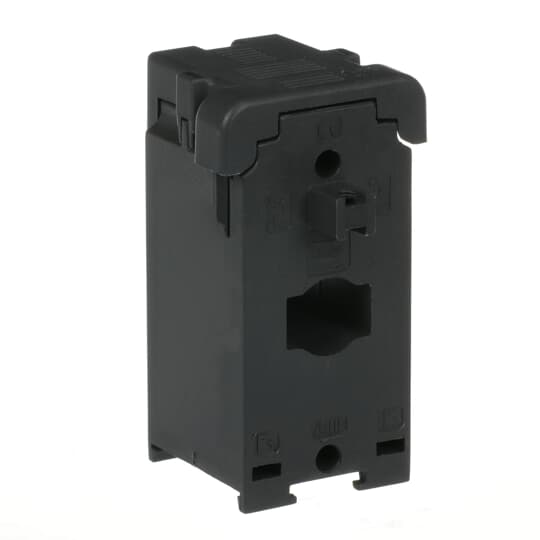

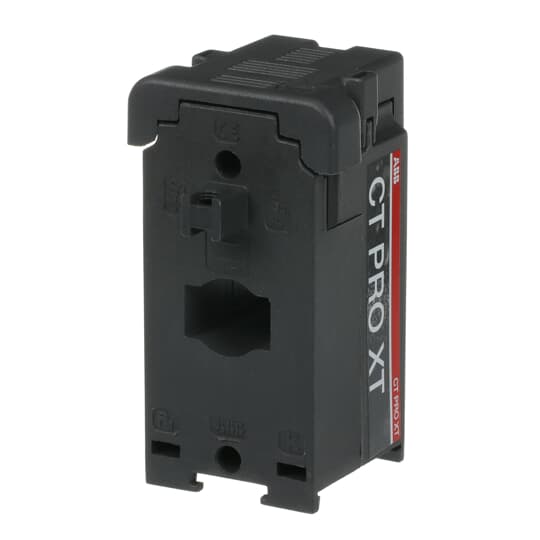

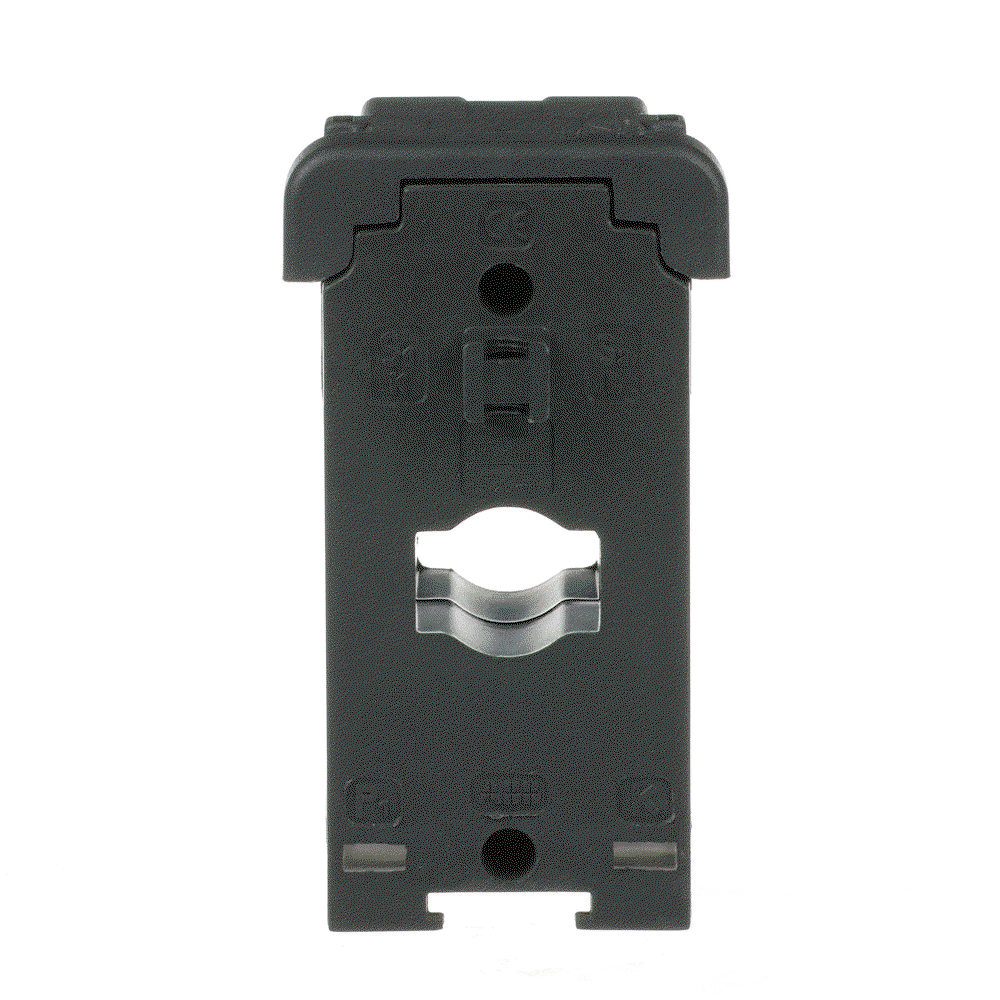

CT PRO XT 50 Current transformer

Name: CT PRO XT 50 Current transformer
Brand: ABB
SKU: 2CSG225755R1101
Availability: InStock

CT PRO XT 50 is used to transform primary currents to../5A secondary currents for c.a. measurement instruments

Product identifiers

SKU: 2CSG225755R1101

EAN: 8012542257554

GTIN: 8012542257554

MPN: CT PRO XT 50

Price: £ 19.51 Excl. VAT

Specifications

Model	Through-feed current converter
Calibrated	yes
Snap mounting	no
Width opening
Accuracy class	3
Height opening
Opening diameter	-
With copper rail	no
Power consumption	-
Secondary connection	Screw connection
Rated primary current	50
Rated secondary current	5
With contact protection	yes
Number of primary inputs	1
Overcurrent limiting factor	FS 5
Rated secondary apparent power	160

Deeplink product page
Deeplink REACH
Instructions for use
Product data sheet
Declaration RoHS
Declaration DOC CE (Declaration of conformity CE)
