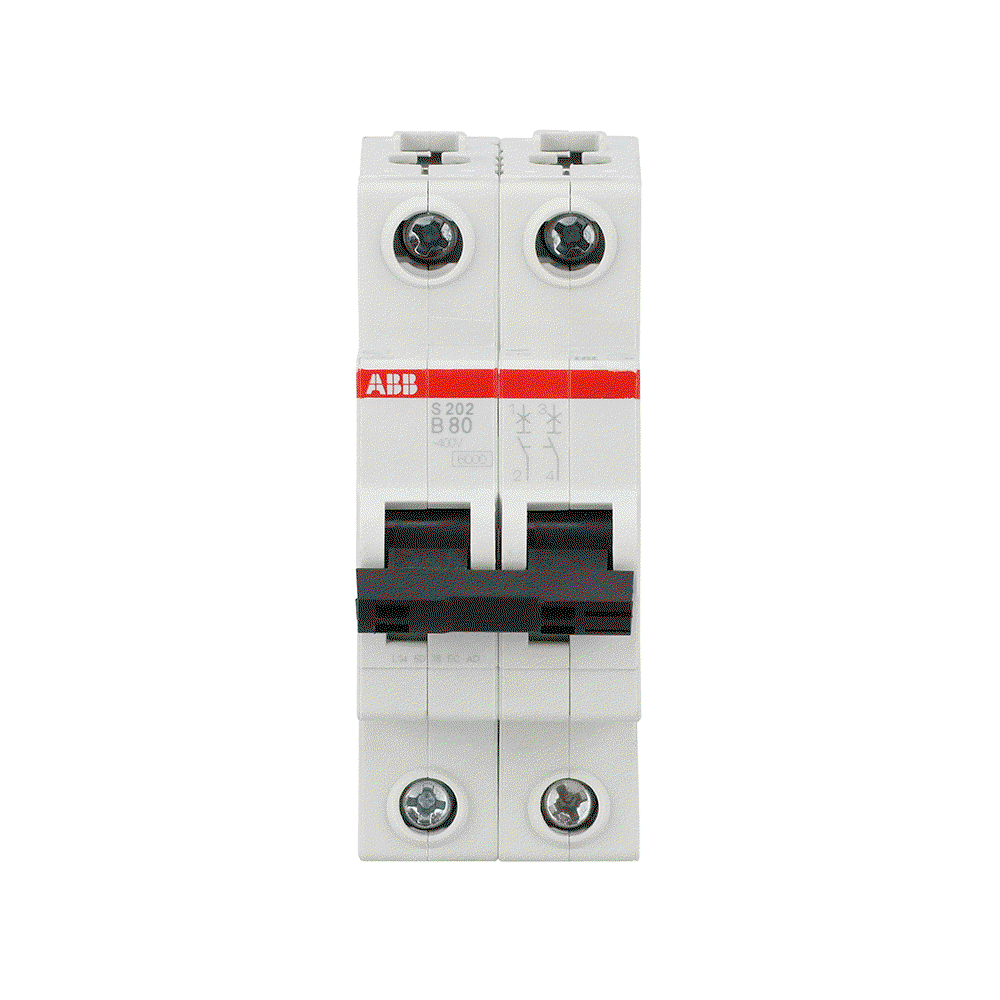

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA

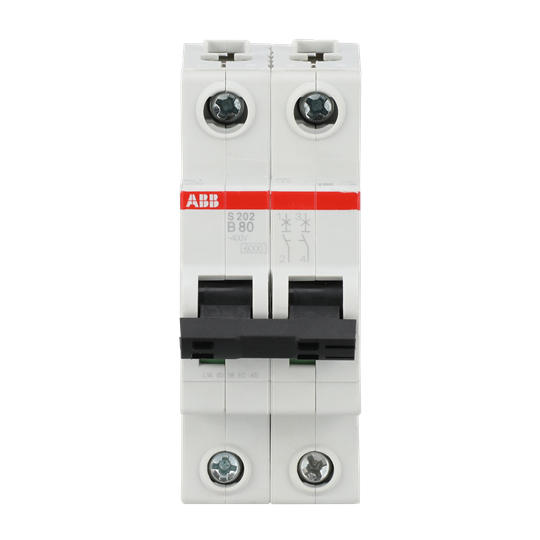

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA – Image 2 of 4

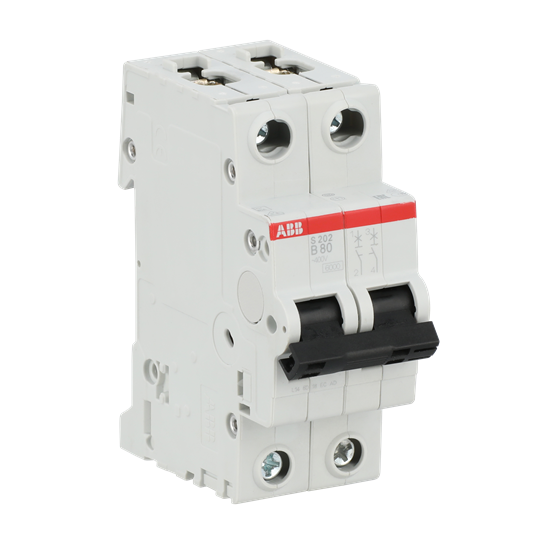

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA – Image 3 of 4

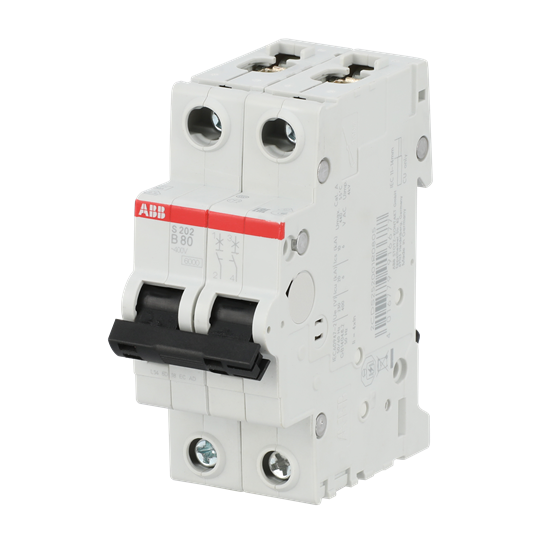

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA – Image 4 of 4

1 / 4

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA

Name: Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA
Brand: ABB
SKU: 2CDS252001R0805
Availability: InStock

Miniature Circuit Breaker - S200 80-100A - 2P - 80 A - B - (AC) 6 kA by ABB is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £109.62 excl. VAT. Voltimum+ members earn 54 points per unit.

S202-B80 Miniature Circuit Breake B-Char., 6kA, 80A, 2P

Product identifiers

SKU: 2CDS252001R0805

EAN: 4016779916677

GTIN: 4016779916677

MPN: S202-B80

Loyalty points: 54

Price: £ 109.62 Excl. VAT

Specifications

Frequency
Power loss	16.2
Voltage type	AC
Rated current	80
Rated voltage	400
Built-in depth	69
Explosion-proof	no
Pollution degree	3
Over voltage category	3
Current limiting class	3
Release characteristic	B
Number of poles (total)	2
Degree of protection (IP)	IP20
Number of protected poles	2
Flush-mounted installation	no
Rated insulation voltage Ui	440
Additional equipment possible	yes
Width in number of modular spacings	2
Ambient temperature during operating
Rated impulse withstand voltage Uimp	4
Concurrently switching neutral conductor	no
Connectable conductor cross section solid-core
Connectable conductor cross section multi-wired
Rated short-circuit breaking capacity Icn according to EN 60898 at 230 V	6
Rated short-circuit breaking capacity Icn according to EN 60898 at 400 V	6
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 230 V	-
Rated short-circuit breaking capacity Icu according to IEC 60947-2 at 400 V	-
