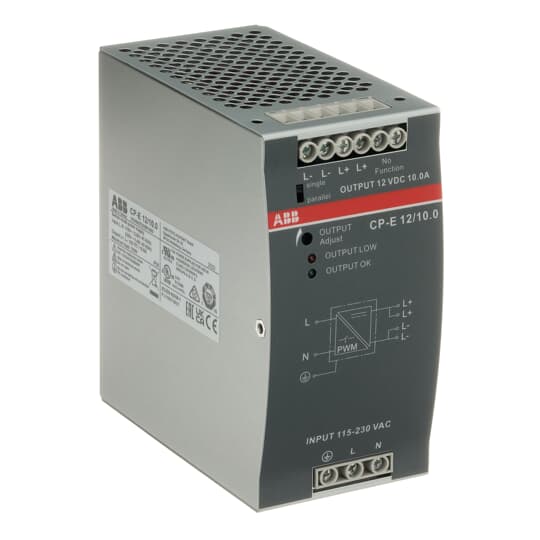

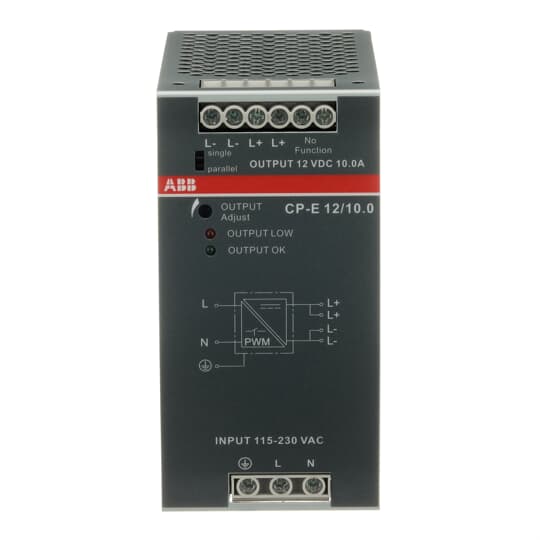

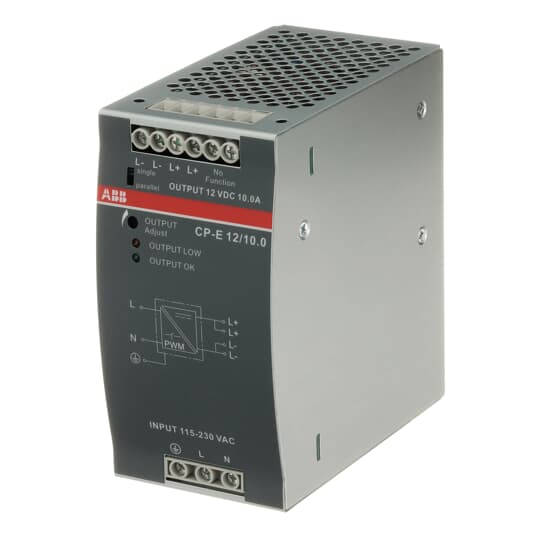

CP-E 12/10.0 Power supply In:115/230VAC Out: 12VDC/10A
The CP-E 12/10.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 120 W, rated output current is 10 A at an output voltage of 12 V DC. The output voltage is adjustable within a range of 11.4 to 14.5 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel. A redundancy unit is available as accessory.
Product identifiers
SKU: 1SVR427035R1000
EAN: 4016779669719
GTIN: 4016779669719
MPN: CP-E 12/10.0
Loyalty points:
92
Price: £ 167.32 Excl. VAT
Categories
Features
|
Depth
|
123.6 mm
|
|
Width
|
63.2 mm
|
|
Height
|
123.6 mm
|
|
EFI00008
|
-
|
|
EFI00040
|
-
|
|
EFI00049
|
-
|
|
EFI00332
|
-
|
|
EFI00846
|
-
|
|
Stabilized
|
yes
|
|
Power output
|
120 W
|
|
Built-in width
|
63.2 mm
|
|
Built-in height
|
123.6 mm
|
|
Modular version
|
no
|
|
Power consumption
|
143 VA
|
|
Short-circuit-proof
|
yes
|
|
Max. output current 1
|
-
|
|
Max. output current 2
|
|
|
Max. output current 3
|
|
|
Wall mounting possible
|
no
|
|
Rated supply voltage DC
|
210 - 375 V
|
|
Direct mounting possible
|
no
|
|
Degree of protection (IP)
|
IP20
|
|
Output voltage stabilized
|
yes
|
|
SIL according to IEC 61508
|
None
|
|
Suitable for rail mounting
|
yes
|
|
Degree of protection (NEMA)
|
1
|
|
Type of electric connection
|
Screw connection
|
|
1st secondary output voltage
|
12 - 12 V
|
|
2nd secondary output voltage
|
|
|
3rd secondary output voltage
|
|
|
Secondary voltage adjustable
|
no
|
|
Rated supply voltage AC 50 Hz
|
90 - 132 V
|
|
Rated supply voltage AC 60 Hz
|
90 - 132 V
|
|
Suitable for safety functions
|
no
|
|
Voltage type (supply voltage)
|
AC/DC
|
|
Nominal value output current 1
|
10 A
|
|
Nominal value output current 2
|
|
|
Nominal value output current 3
|
|
|
Nominal value output voltage 1
|
12 V
|
|
Nominal value output voltage 2
|
|
|
Nominal value output voltage 3
|
|
|
Width in number of modular spacings
|
-
|
|
Performance level according to EN ISO 13849-1
|
None
|
