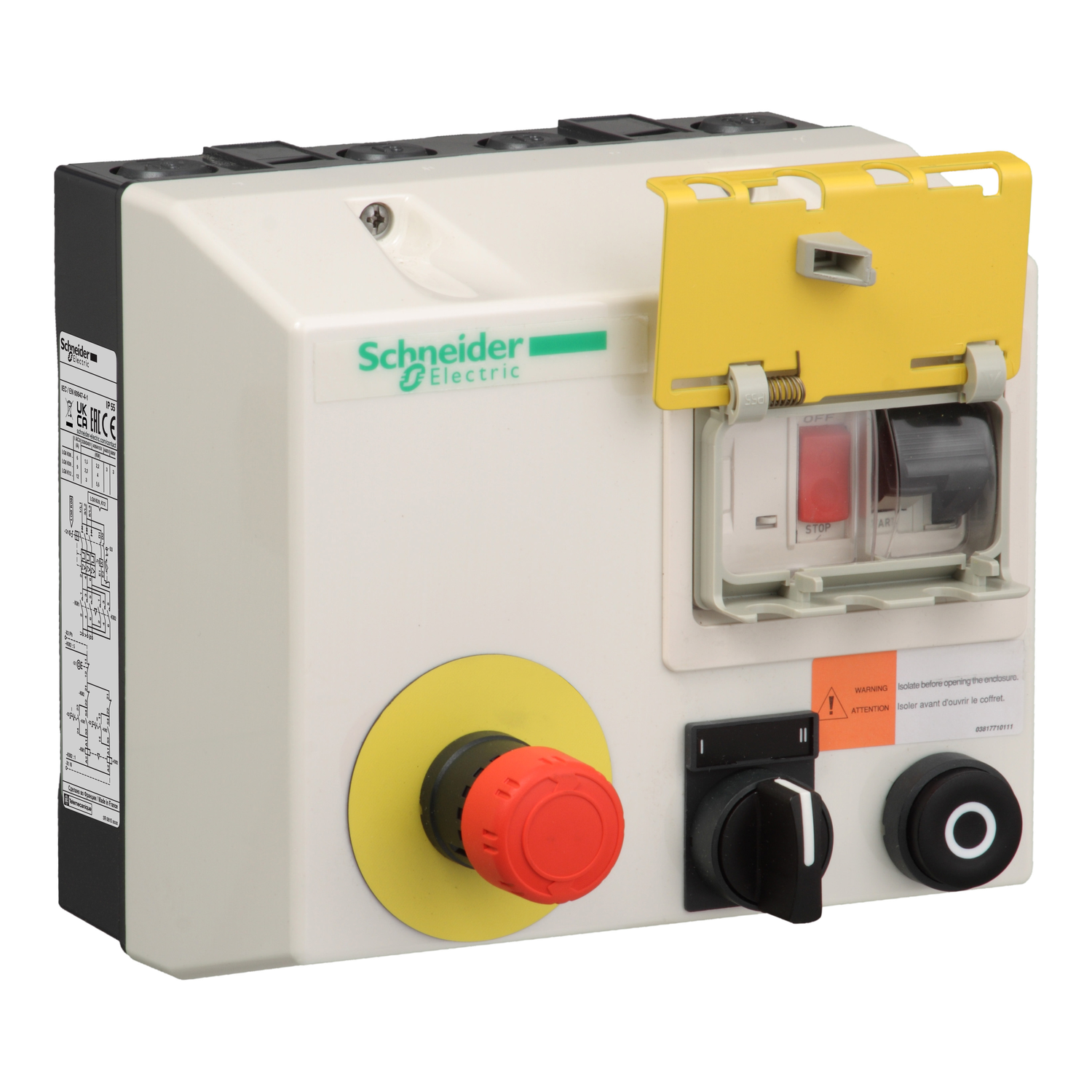

TeSys LG - enclosed DOL reversing starter - 6...10 A - 380/400 V AC coil

TeSys LG - enclosed DOL reversing starter - 6...10 A - 380/400 V AC coil by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £534.66 excl. VAT. Voltimum+ members earn 66 points per unit.

"TeSys Control enclosed starter with contactor and thermal magnetic circuit breaker, for control of 3-phase motors 4kW@400V AC-3 in reversing safety applications." "Polycarbonate enclosure for surface mounting with screw fixing, 2 knock-outs for cable glands on top and bottom, ensuring IP55 protection." "Including 2 LC1K prewired contactors and 1 GV2ME thermal magnetic circuit breaker with mushroom emergency stop and 1 “Stop” black pushbutton + 1 2-position spring return selector switch “I – II” and 1 GVAX undervoltage release module." "It includes a contactor LC1D with a control circuit 380V 50/60Hz already prewired between the power phases," "and a thermal magnetic circuit breaker GV2ME with thermal setting range 6-10A," It conforms to IEC 60204-1 and IEC 60947-4-1,

Product identifiers

SKU: LG8K09Q714
EAN: 3389110657395
GTIN: 3389110657395
MPN: LG8K09Q714

Voltimum+ Loyalty Programme Loyalty points: 66

Price: £ 534.66 Excl. VAT

Specifications

Depth 177 mm
Width 175 mm
Height 165 mm
With fuse no
Release class CLASS 10
With transformer no
Power consumption -
Type of motor starter Reversing starter
Degree of protection (IP) IP55
Rated operation current Ie 9 A
Voltage type for actuating AC
Degree of protection (NEMA) -
Suitable for emergency stop yes
Supporting protocol for CAN no
Supporting protocol for Modbus no
Supporting protocol for TCP/IP no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet no
Rated power, 460 V, 60 Hz, 3-phase 4 kW
Supporting protocol for EtherNet/IP no
Supporting protocol for SafetyBUS p no
Supporting protocol for Data-Highway no
Rated control supply voltage AC 50 Hz
Rated operation current at AC-3, 400 V 9 A
Supporting protocol for DeviceNet Safety no
Ambient temperature, upper operating limit 40 °C
Temperature compensated overload protection yes
Rated operation power at AC-3, 230 V, 3-phase 1.5 kW
Supporting protocol for AS-Interface Safety at Work no
Rated conditional short-circuit current, type 2, 230 V -
Number of auxiliary contacts as normally closed contact 0
Rated conditional short-circuit current, type 1, 600 Y/347 V -
