Regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A
1 / 7
Popularity
Top 60%
More about Popularity
Among the top 60% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales.
Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.
Regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A
Regulated SMPS - 1 or 2-phase - 100..500 V - 24 V - 10 A by Schneider Electric is listed by 6 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Farnell, RS Components and 3 more. It is currently in stock at all of them. Trade prices range from £205.91 to £808.41 excl. VAT. Voltimum+ members earn 40 points per unit.

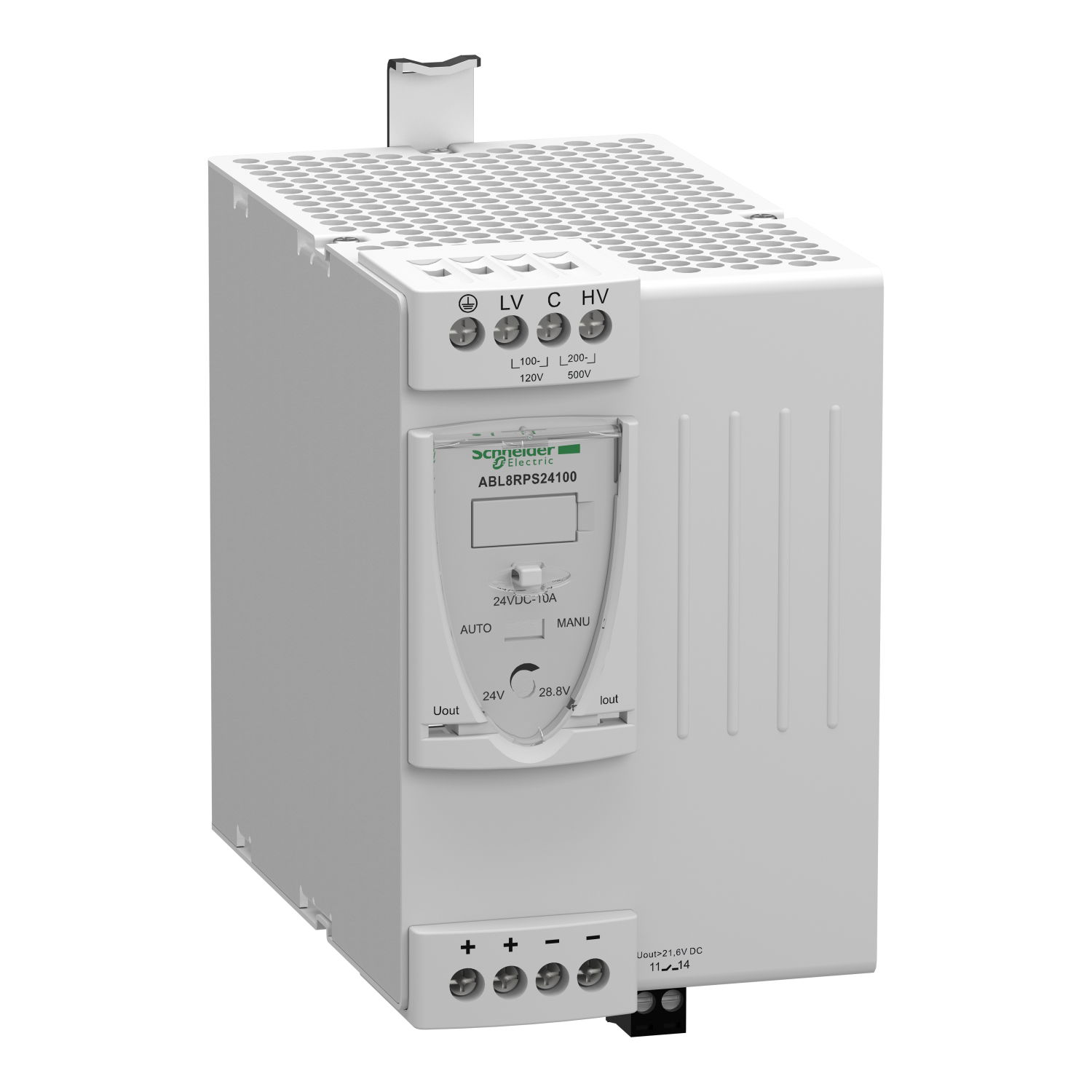

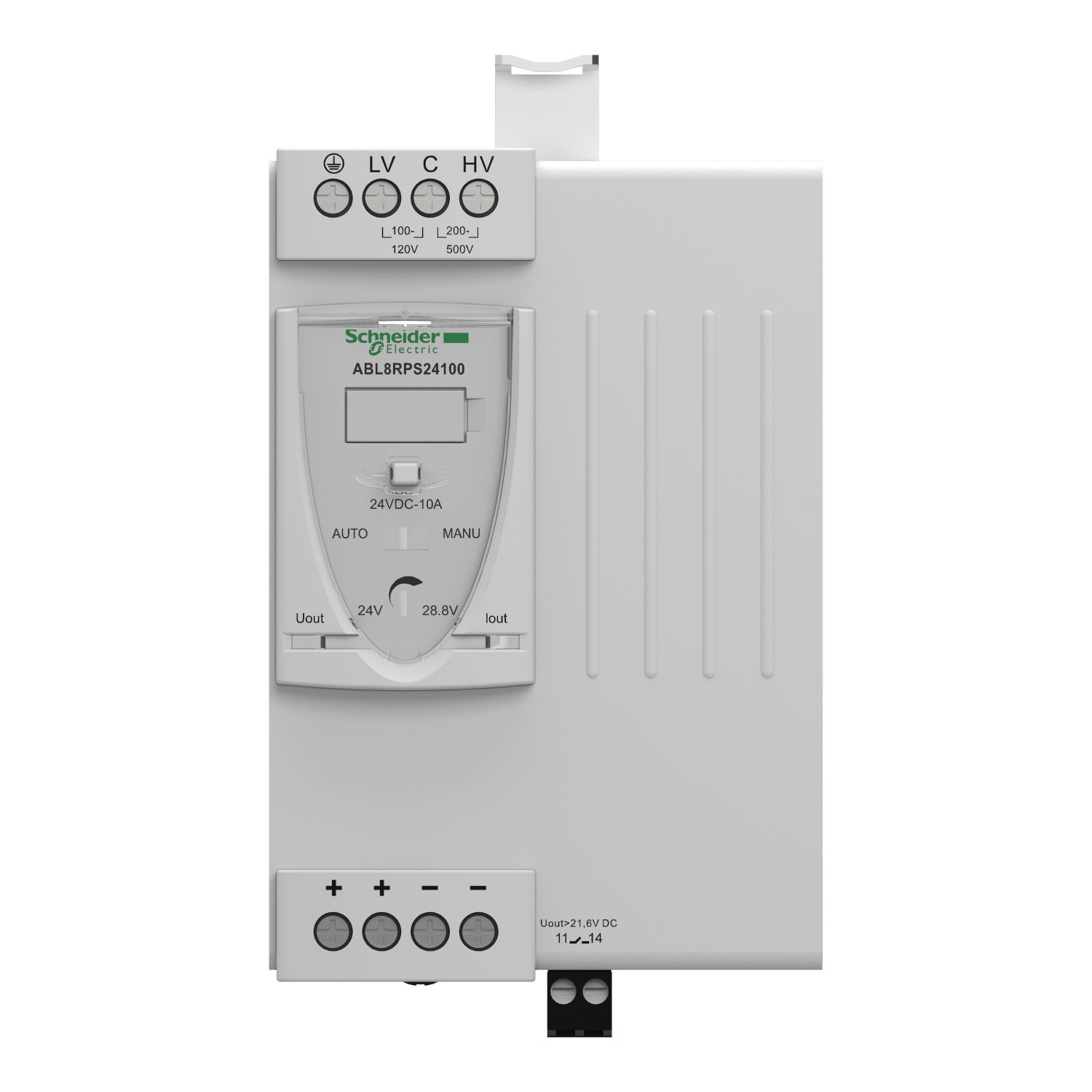

This ABL8 regulated switch mode power supply (SMPS) supplies direct current voltage. It has a rated input of 100V to 500V AC, a rated output current of 10A at 24V DC and a rated power output of 240W. It is ideal for supplying DC voltage necessary for automation equipment designed for applications in industrial, commercial and residential applications such as conveying, packaging, control, food & beverage, mining, oil & gas and water. It is also equipped with a PFC (Power Factor Correction) filter. It has LED diagnostics indicator available in the front for troubleshooting instantly. Automatic reset allows short-term faults to be cleared and systems to restart without the need to disturb on-duty maintenance engineers. It installs on DIN rail and is 85mm-wide. It weighs 1,000kg. It is a power supply for industrial use, rail mounting. It conforms to UL 508, CSA C22.2 No 60950-1 standards. The GB2CD08, GB2CD12, GV2RT07 and GV2ME07 thermal magnetic circuit breakers are recommanded for its protection. It has LED diagnostics indicator available in the front for troubleshooting instantly. It installs on DIN rail. It brings energy to your automated systems. Designed for simple machines and applications, modular power supplies are primarily appreciated for their extreme compactness.
Product identifiers
SKU: ABL8RPS24100
EAN: 3389119405621
GTIN: 3389119405621
MPN: ABL8RPS24100
Loyalty points:
40
Price range: £ 205.91 - £ 808.41 Excl. VAT
Categories
ETIM group
Specifications
| Depth | 145 mm |
| Width | 86 mm |
| Height | 143 mm |
| Stabilized | yes |
| Power output | 240 W |
| Built-in width | - |
| Built-in height | - |
| Modular version | no |
