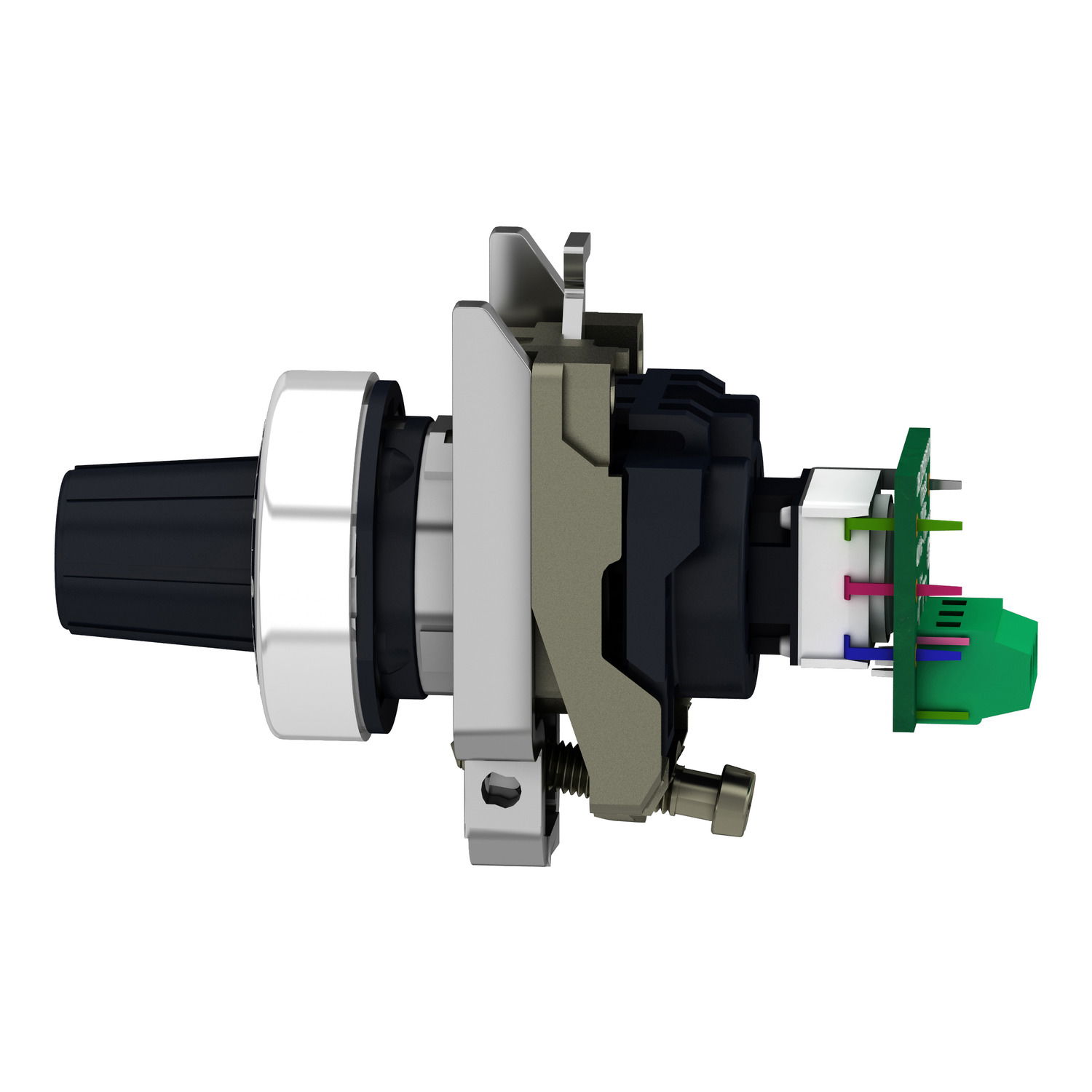

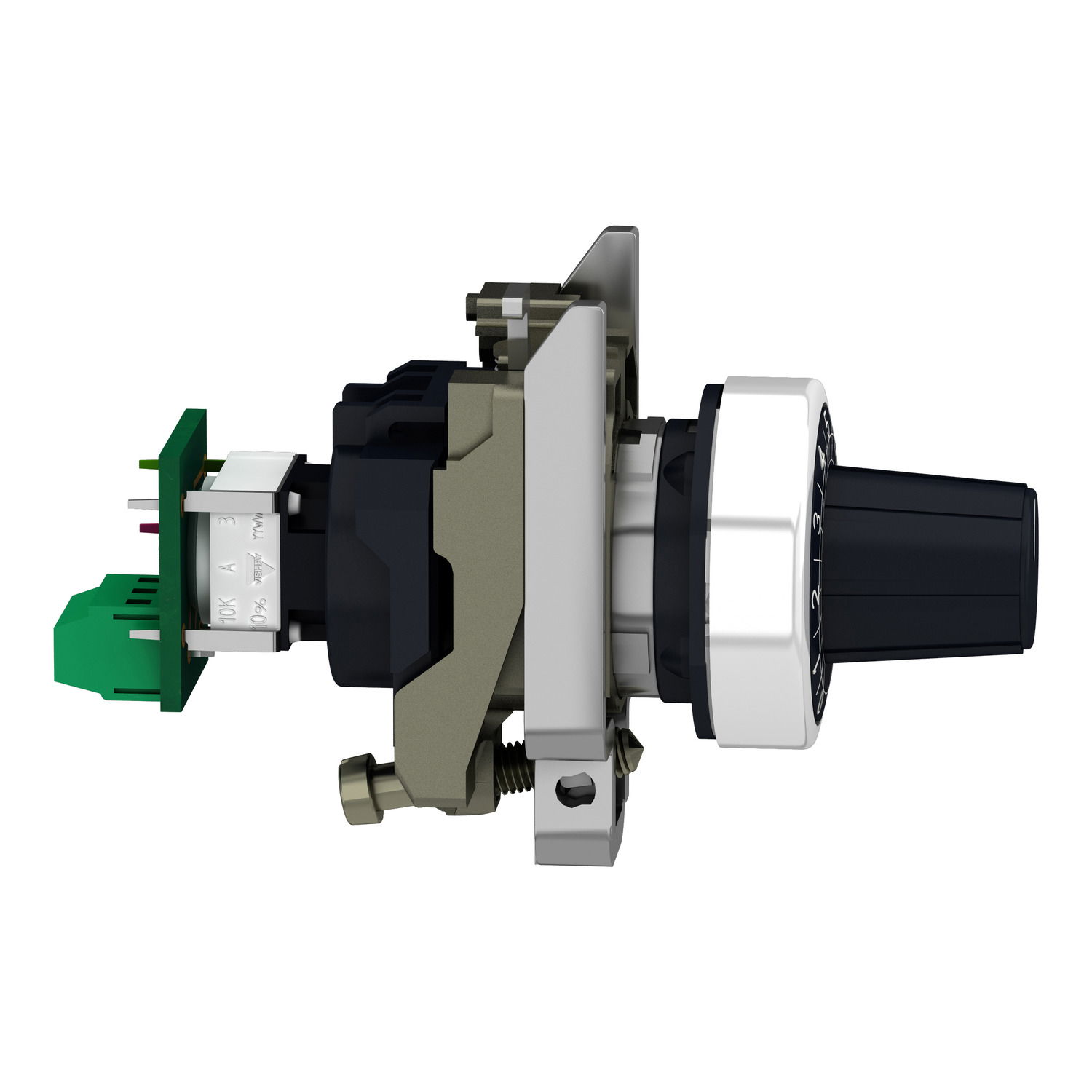

Complete potentiometer, metal, Ø22, 1K

Complete potentiometer, metal, Ø22, 1K by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 2 more. It is currently in stock at 4 of them. Trade prices range from £51.05 to £87.68 excl. VAT. Voltimum+ members earn 11 points per unit.

This Harmony XB4 potentiometer has a resistance of 1kΩ. It has a metal bezel. This potentiometer provides an external interface for controlling key parameters of automation components like drives and inverters. It is easily installed into standard 22mm diameter cut-outs and connected with simple screw-clamp connections. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 IP69 IP69K, making it ideal for operation in harsh environments. It is ideal for analog control (like speed control of motor) via the voltage or resistor input of variable speed drives.

Product identifiers

SKU: XB4BD912R1K
EAN: 3606480984990
GTIN: 3606480984990
MPN: XB4BD912R1K

Voltimum+ Loyalty Programme Loyalty points: 11

Price range: £ 51.05 - £ 87.68 Excl. VAT

Categories

Resistors Electronic Components

ETIM group

Low-voltage industrial components

Specifications

Resistance 1000 Ohm
Hole diameter 22.5 mm
Power consumption 1 W
Number of revolutions
Degree of protection (IP) IP66
Degree of protection (NEMA) 4X
Type of electric connection Other
