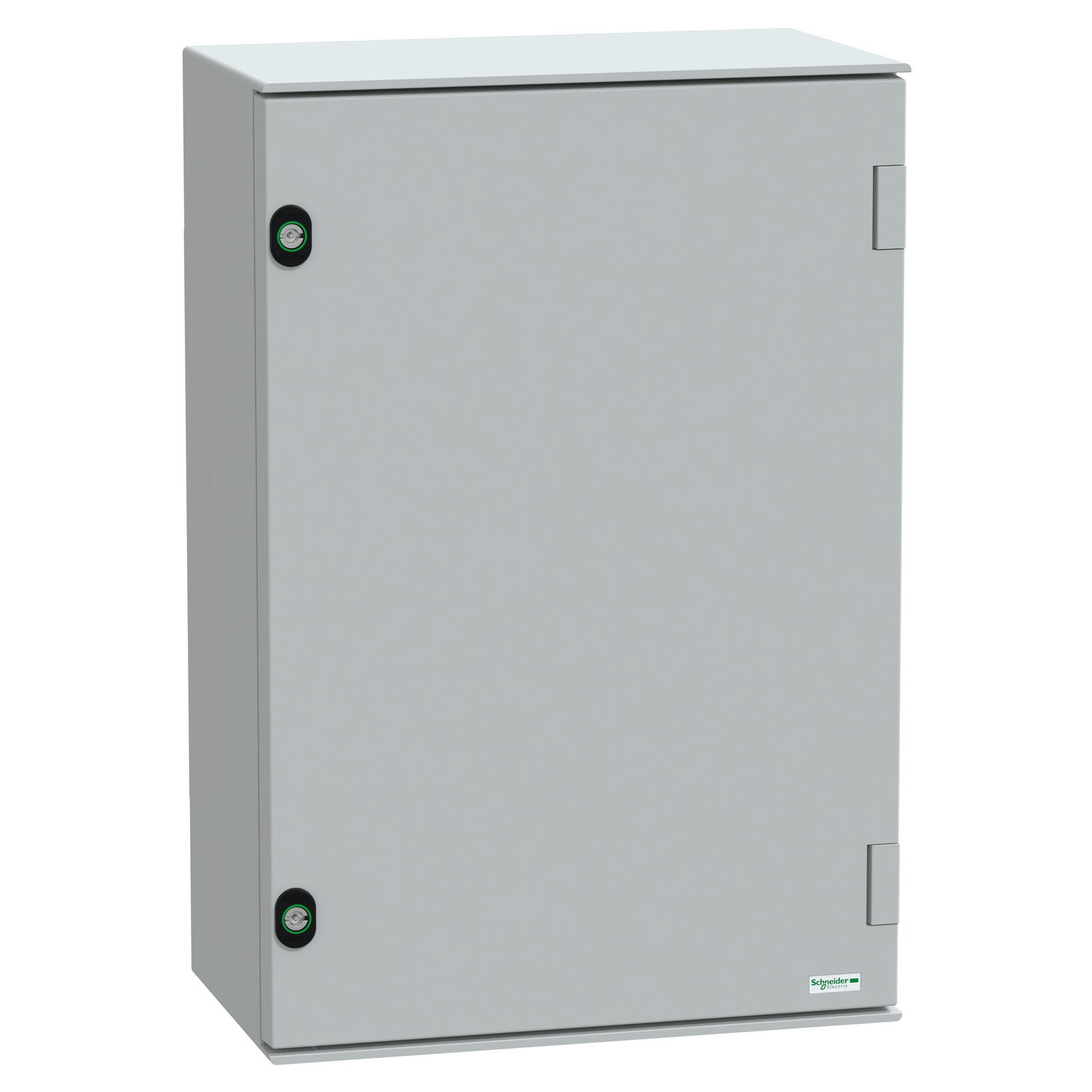

Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm

Name: Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm
Brand: Schneider Electric
SKU: NSYPLM64G
Availability: InStock

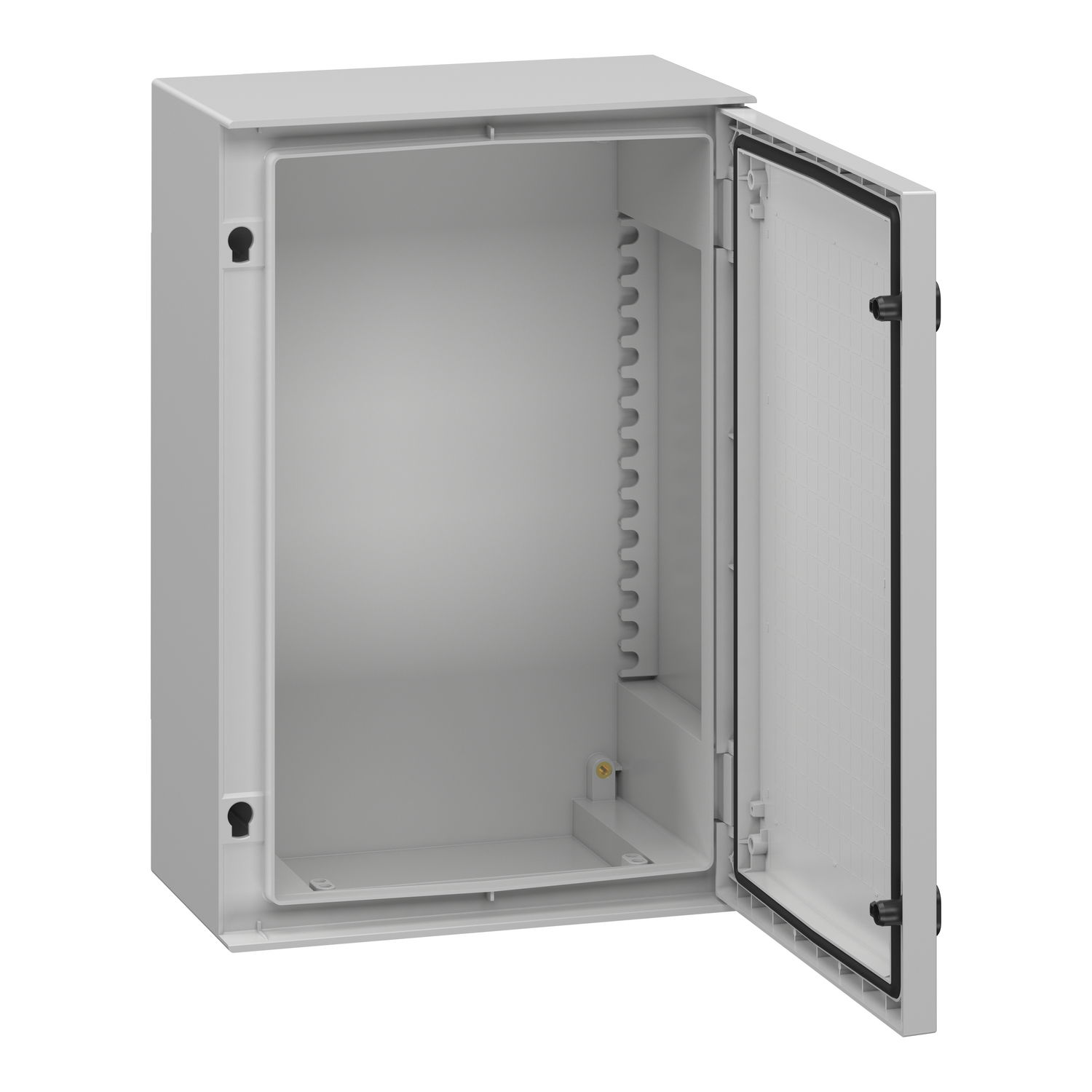

PanelSeT PLM wall-mounting polyester enclosure monobloc. 647 x 436 x 250 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Product identifiers

SKU: NSYPLM64G

EAN: 3606480776632

GTIN: 3606480776632

MPN: NSYPLM64G

Loyalty points:
75

Price range: £ 135.49 - £ 190.06 Excl. VAT

ETIM Group

Control cabinet systems

Videos

Promotional video

Specifications

Depth	250 mm
Width	436 mm
Colour	Grey
Height	647 mm
Material	Plastic
Couplable	no
With door	yes
RAL-number	7035
With cover	no
EMC-version	no
Corner model	no
Freestanding	no
Pitched roof	no
Pre-stamping	no
Pole fastening	yes
With rear door	no
Impact strength	IK10
Number of doors	1
Number of locks	2
Material quality	Polyester
With glazed door	no
Surface finishing	Untreated
Transparent cover	no
With mounting plate	no
Intermediate mounting	no
With ventilation door	no
Degree of protection (IP)	IP66
Floor standing wall model	-
Number of connector holes	0
Suitable for wall built-in	yes
Suitable for wall mounting	yes
Degree of protection (NEMA)	4X
Suitable for outdoor set-up	yes
Suitable for metrical mounting	-
Mounting plate depth-adjustable	yes
Max. permissible load of the door(s) according to IEC 62208	94 N
Max. permissible load of the enclosure according to IEC 62208	463 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890	-
Max. permissible load of the mounting plate according to IEC 62208	283 N
