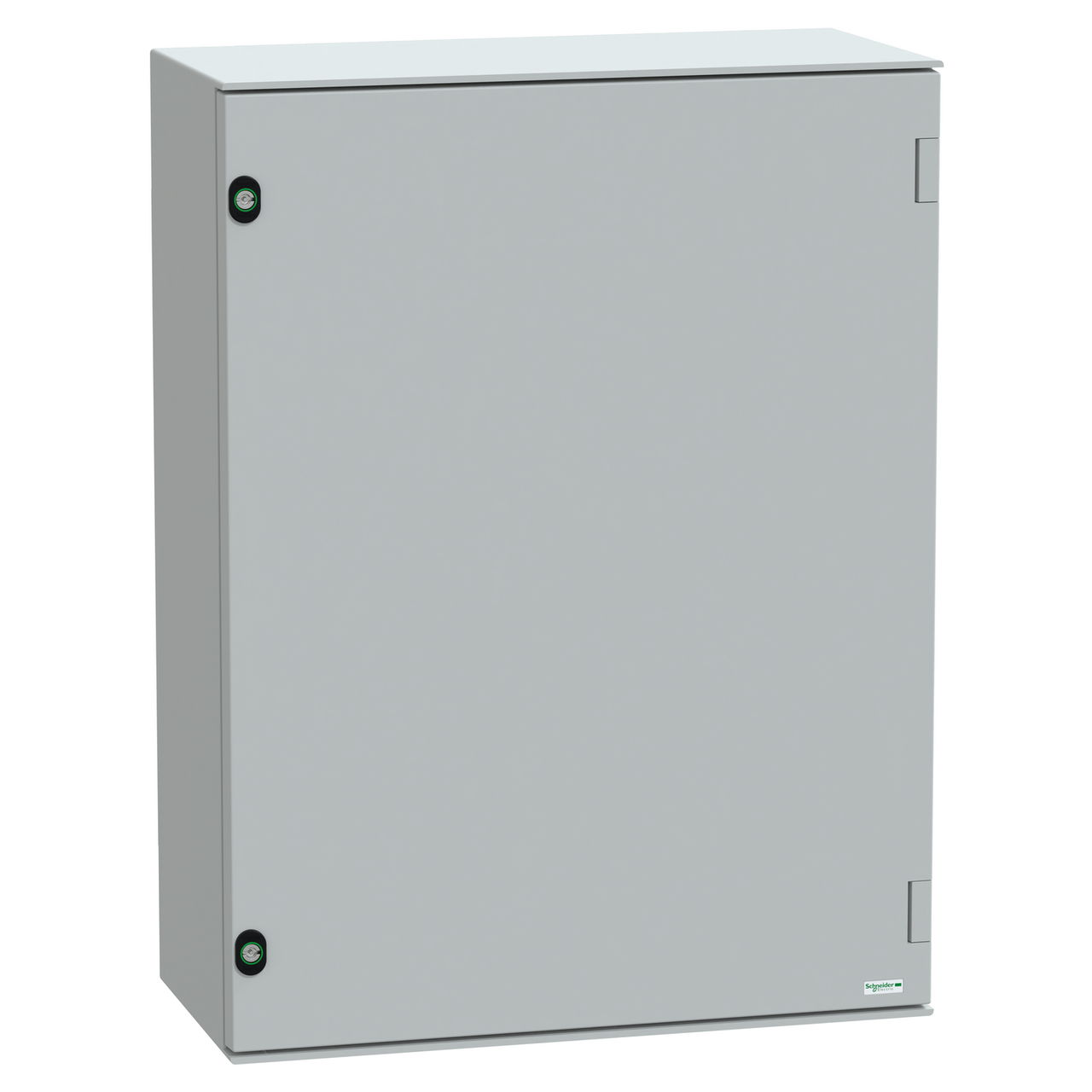

Wall-mounting enclosure polyester monobloc IP66 H847xW636xD300mm

Wall-mounting enclosure polyester monobloc IP66 H847xW636xD300mm

PanelSeT PLM wall-mounting polyester enclosure monobloc. 847 x 636 x 300 mm. Built-in canopy, one piece moulded with notches in the rear. Without mounting plate. 2 locks (3 mm double-bar lock). Accessible front. Polyester reinforced with fibreglass. Grey RAL 7035. IP66, IK10, NEMA (13,4X) 960°C fire resistance.

Product identifiers

SKU: NSYPLM86G
EAN: 3606480776755
GTIN: 3606480776755
MPN: NSYPLM86G

Voltimum+ Loyalty Programme Loyalty points: 148

Price range: £ 276.05 - £ 373.78 Excl. VAT

Videos

Promotional video

Specifications

Depth 300 mm
Width 636 mm
Colour Grey
Height 847 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model -
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting -
Max. permissible load of the door(s) according to IEC 62208 184 N
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -
