Schneider Electric
Popularity Top 30% More about Popularity
Among the top 30% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

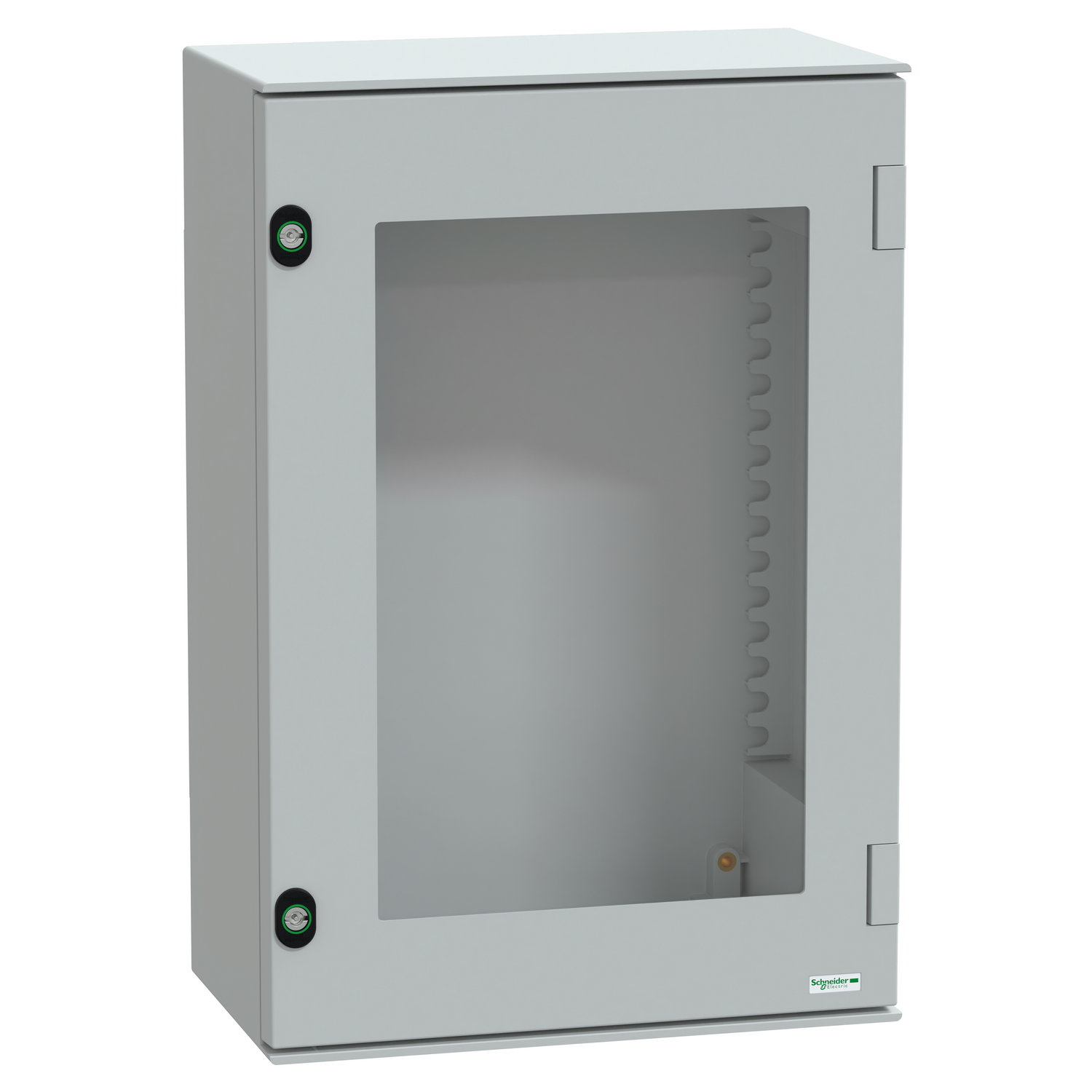

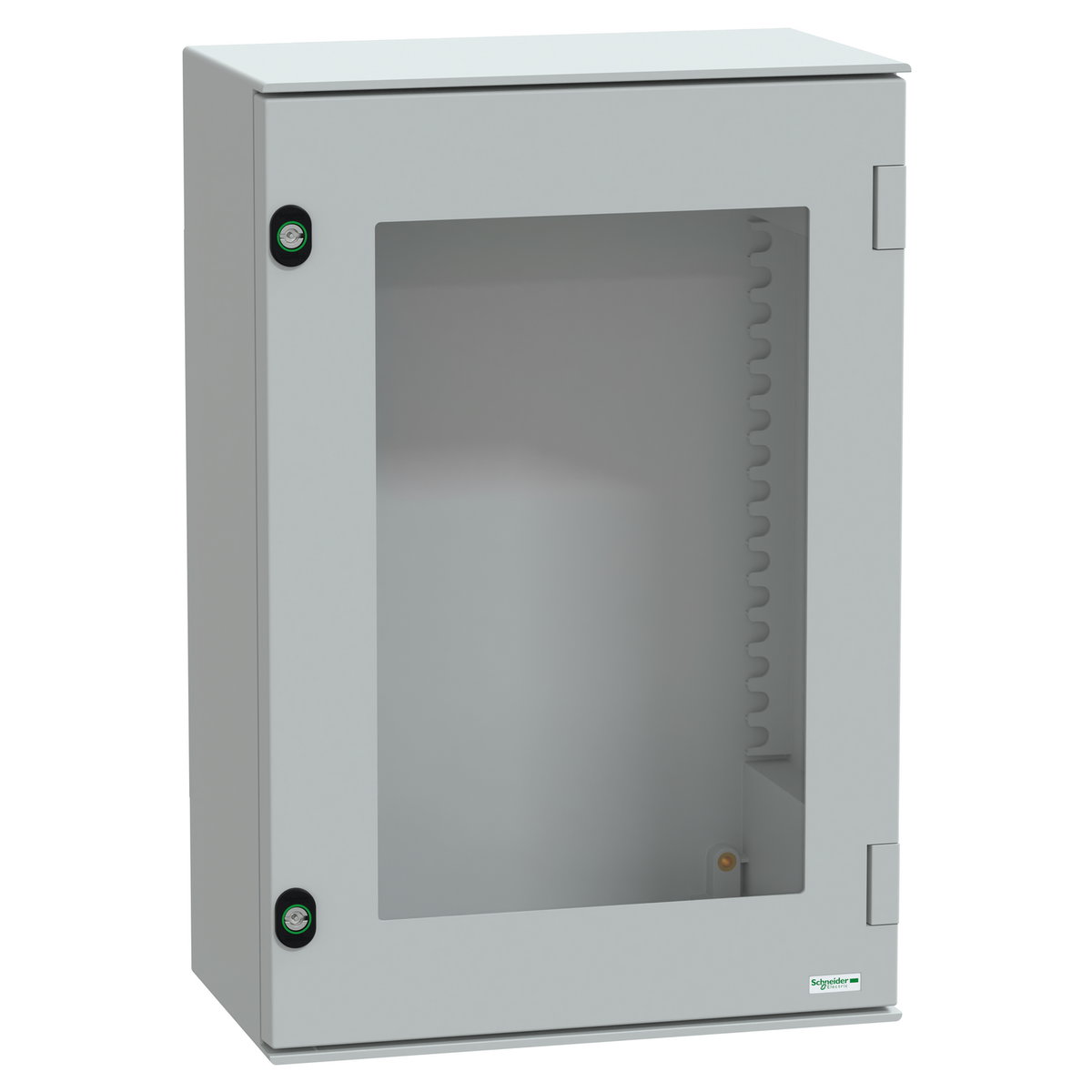

Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm glazed door

Wall-mounting enclosure polyester monobloc IP66 H647xW436xD250mm glazed door by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell, RS Components and 2 more. It is currently in stock at 3 of them. Trade prices range from £224.73 to £315.25 excl. VAT. Voltimum+ members earn 39 points per unit.

This PanelSeT PLM (formerly PanelSeT PLM) is a wall-mounted enclosure that is suitable for multi-purpose applications. The enclosure has a nominal height, width, and depth of 647 mm, 436 mm, and 250 mm, respectively. It is made of polyester reinforced with fiberglass, which offers durability and resistance to industrial, harsh and outdoor environments. The polyester material is made with 37% of recycled material content. Its packaging is made of 75% recycled carboard and without single-use plastic. The enclosure comes in a grey (RAL 7035) color. The enclosure consists of one body, one door, and two locks. The door is transparent and can be opened from the front with a 3 mm double-bar lock. The enclosure offers high protection against dust and water with an IP66 rating (IEC 60529). It is also highly resistant to impacts, with an IK08 rating (IEC 62262), and offers protection against electric shocks with a class II electrical insulation rating. The enclosure is UL certified and can be stored in ambient air temperatures ranging from -40 to 80°C without affecting its performance. The enclosure is also fire resistant up to 960 °C (IEC 62208) and meets NEMA classification 13 and 4X standards, as well as IEC 62208.

Product identifiers

SKU: NSYPLM64TG
EAN: 3606480776663
GTIN: 3606480776663
MPN: NSYPLM64TG

Voltimum+ Loyalty Programme Loyalty points: 39

Price range: £ 224.73 - £ 315.25 Excl. VAT

Categories

Electrical Enclosures Enclosures & Panels

ETIM group

Control cabinet systems

Specifications

Depth 250 mm
Width 436 mm
Colour Grey
Height 647 mm
Material Plastic
Couplable no
With door yes
RAL-number 7035
EMC-version no
Freestanding no
Pre-stamping no
With rear door no
Number of doors 1
Material quality Polyester
Surface finishing Untreated
With mounting plate no
With ventilation door no
Floor standing wall model -
Suitable for wall built-in yes
Degree of protection (NEMA) 4X
Suitable for metrical mounting -
Max. permissible load of the door(s) according to IEC 62208 -
Thermal dissipation (Delta T = 20 K) according to IEC/TR 60890 -

Documents

Declaration of Conformity (Sustainability)

NSYPLM64TG REACh Regulation

Open

Instruction sheet

PanelSeT PLM - Insulated Wall-Mounted Enclosures NSYPLM43/54/64/75/86 - Instruction Sheet

Open

Product data sheet

Open

Catalog

Universal Enclosures 2026 - Catalog (English)

Open

Declaration of Conformity (Sustainability)

NSYPLM64TG EU RoHS Directive

Open

Declaration of conformity

Declaration of Conformity Thalassa PLM v04

Open

Environmental Disclosure

PanelSeT PLM

Open

CAD

Open
