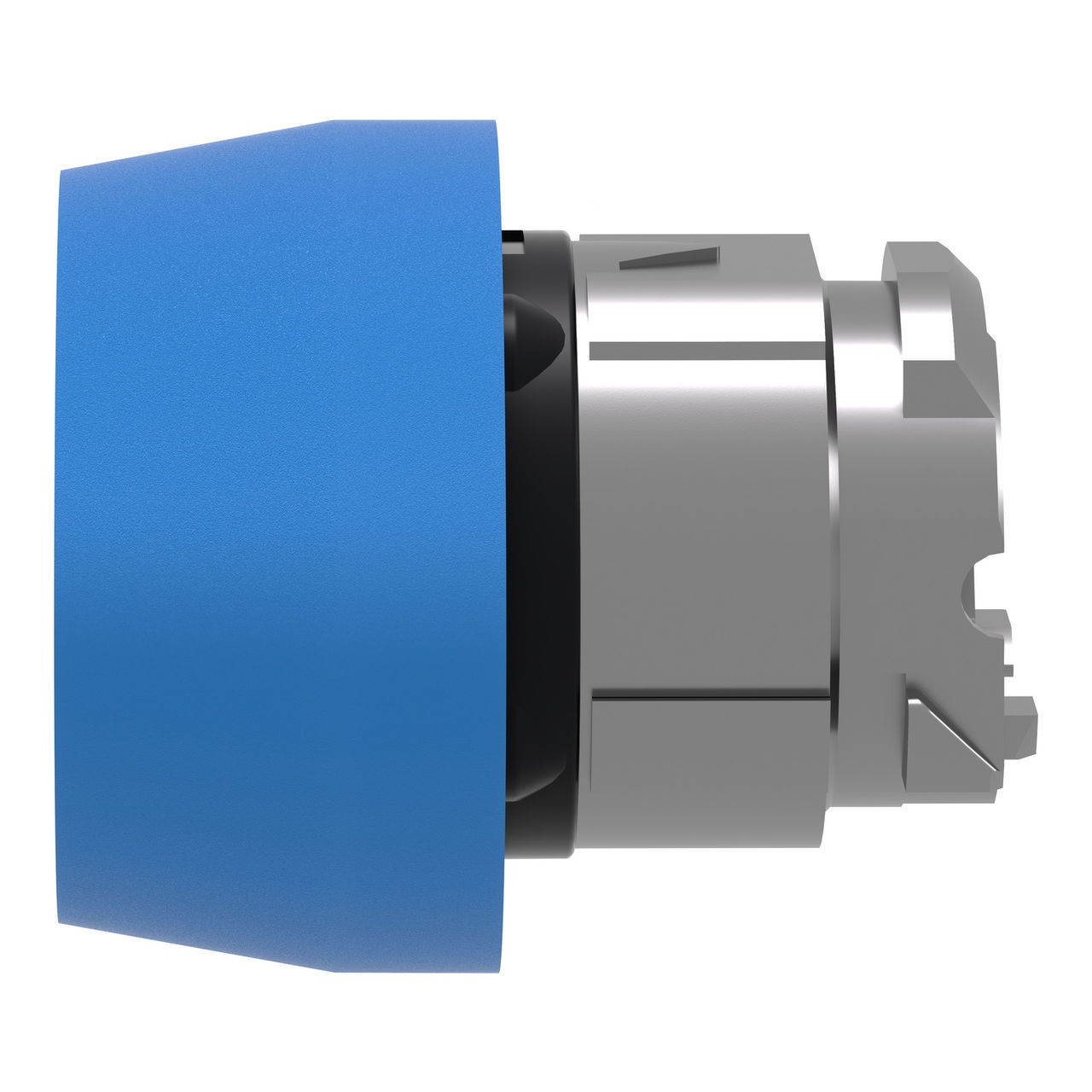

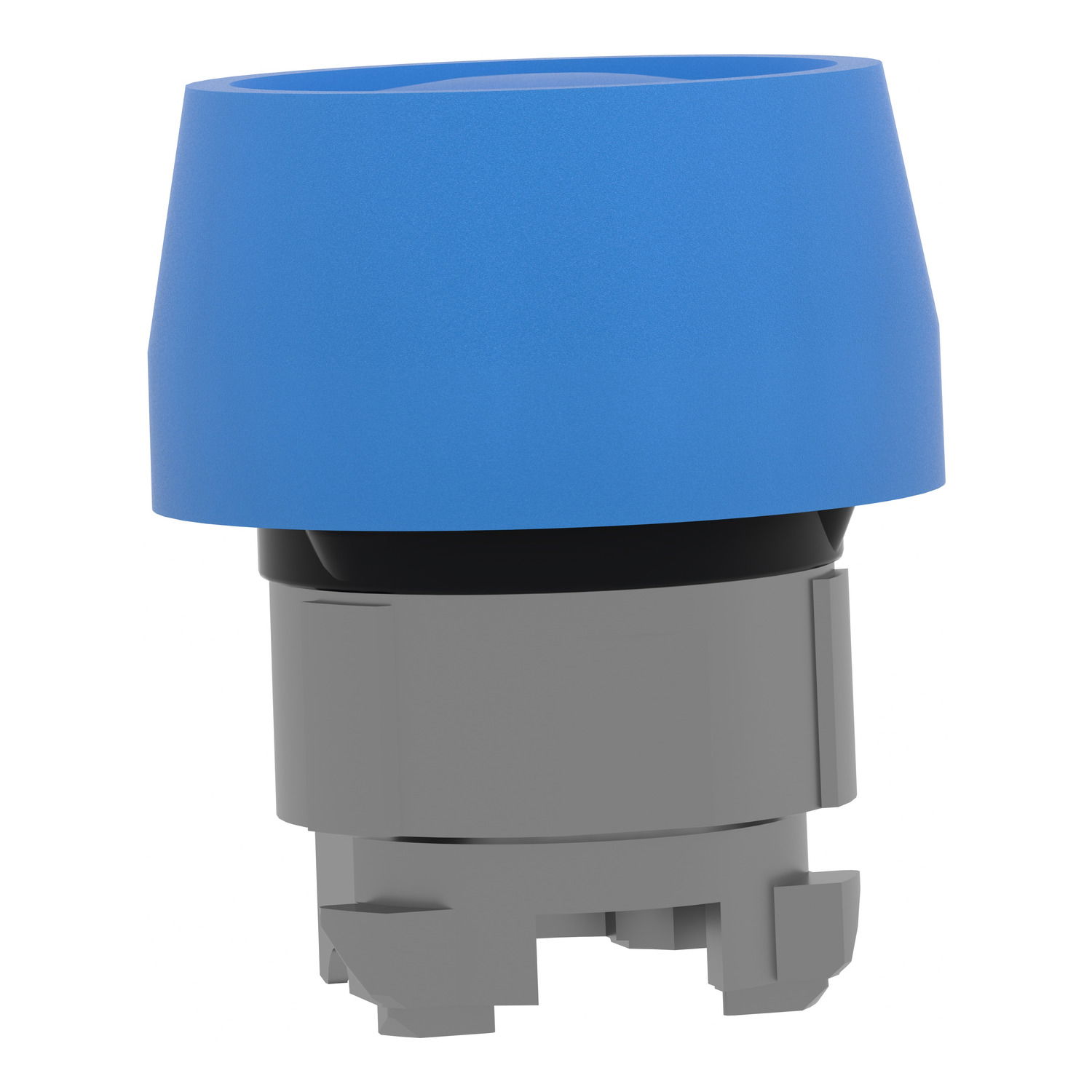

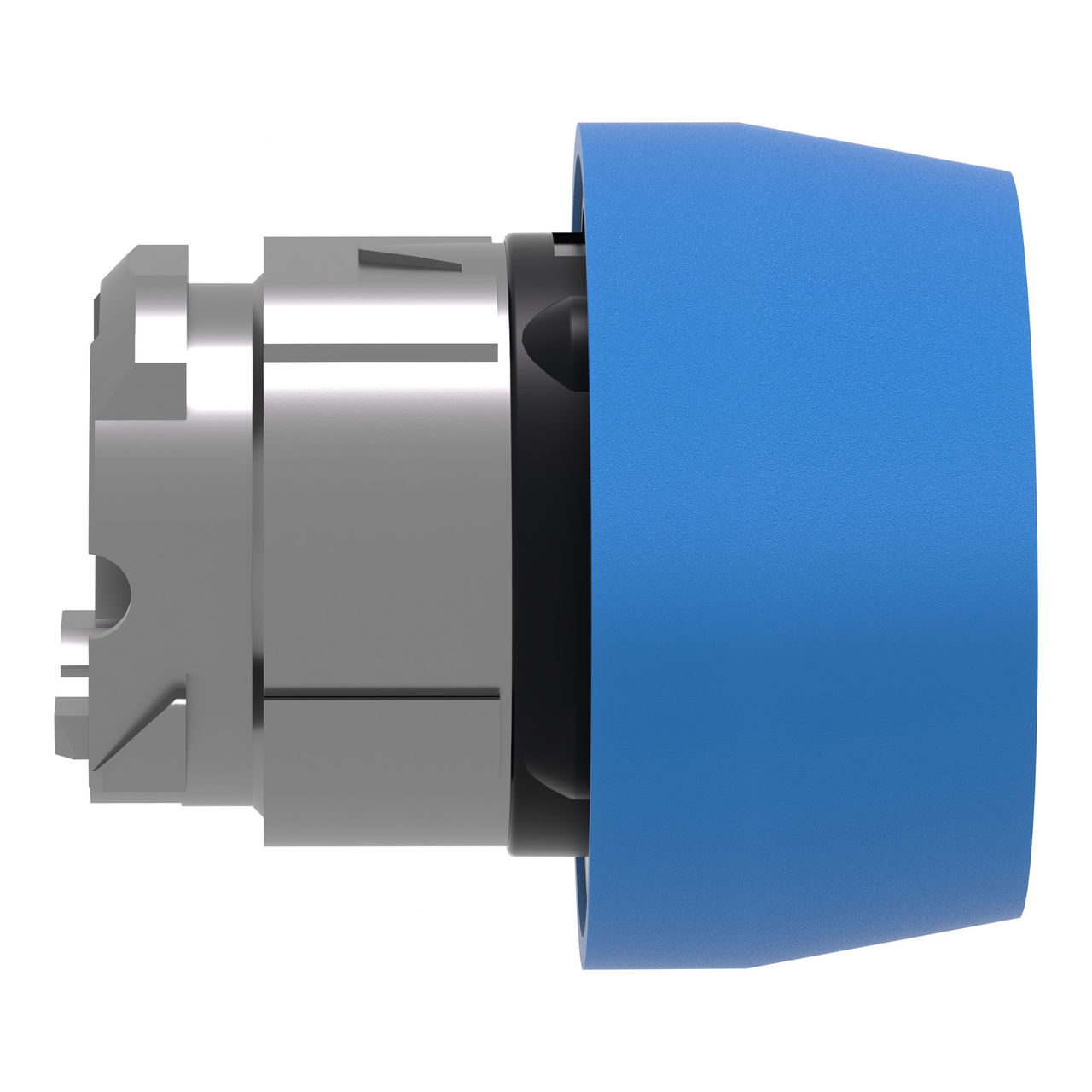

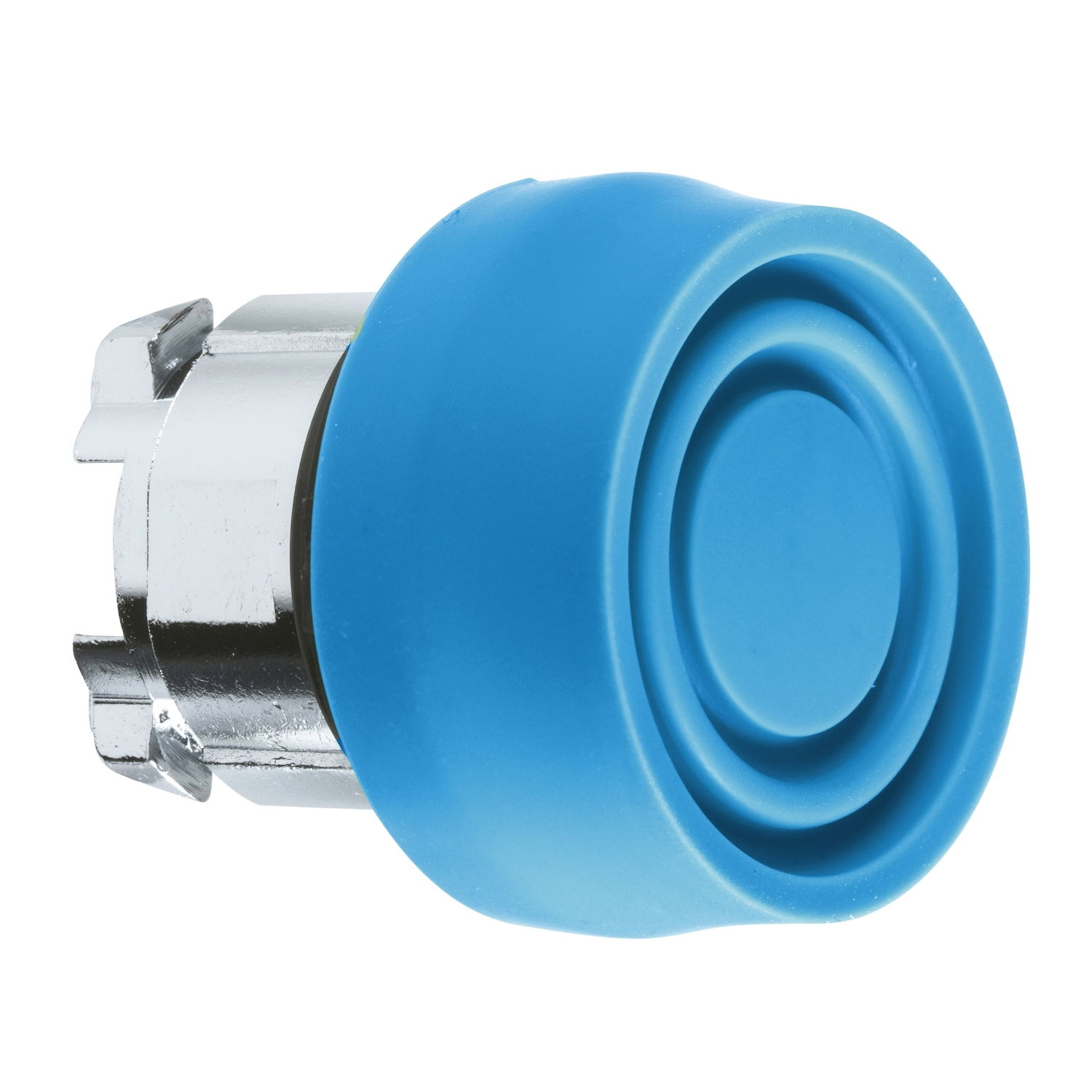

Blue flush pushbutton head Ø22 spring return unmarked

Blue flush pushbutton head Ø22 spring return unmarked by Schneider Electric is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £12.60 to £13.24 excl. VAT. Voltimum+ members earn 2 points per unit.

This Harmony XB4, flush blue button head with colored silicone boot operates with a spring return / impulse mechanism. This colored silicone booted button head provides an ergonomic interface for controlling your machine and a simple solution to prevent dirt and other contaminants. It is easily installed and replaced on compatible complete push button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a metal bezel, this makes it Ideal for applications requiring high impact and vibration resistance. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. The clear boot prevents growth of bacteria in joints and gaps, it makes this product ideal for high hygiene environments.

Product identifiers

SKU: ZB4BP6S
EAN: 3389110999341
GTIN: 3389110999341
MPN: ZB4BP6S

Voltimum+ Loyalty Programme Loyalty points: 2

Price range: £ 12.60 - £ 13.24 Excl. VAT

Specifications

Labelled no
Colour button Blue
Hole diameter 22.5 mm
Spring-return yes
Width opening -
Height opening -
Type of button Flat
With front ring yes
Material front ring Metal
With protective cover no
Number of command positions 1
Degree of protection (IP), front side IP66
