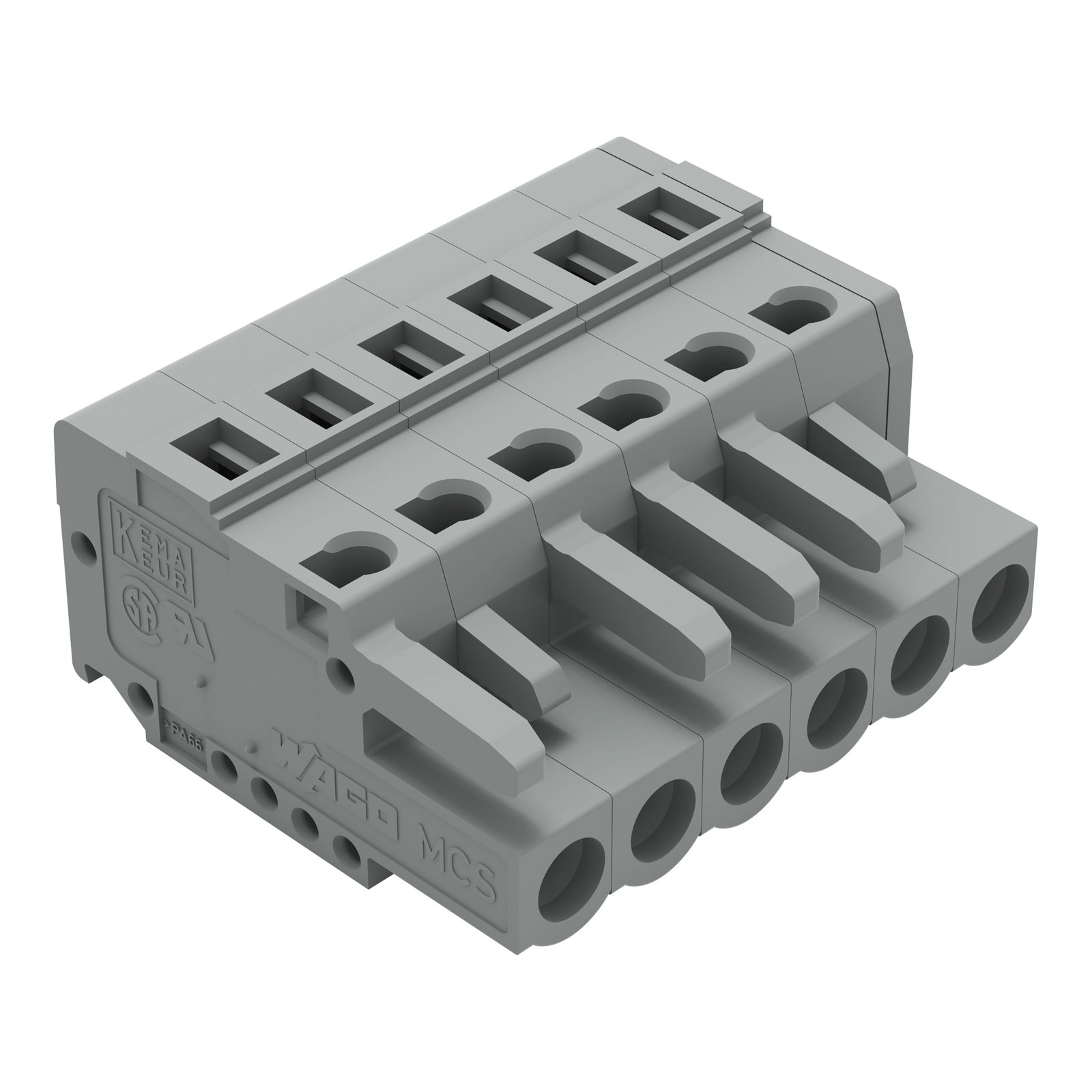

1-conductor female connector CAGE CLAMP® 2.5 mm² gray

Name: 1-conductor female connector CAGE CLAMP® 2.5 mm² gray
Brand: Wago
SKU: 231-106/026-000
Availability: InStock

1-conductor female connector; CAGE CLAMP®; 2.5 mm²; Pin spacing 5 mm; 6-pole; gray

Product identifiers

SKU: 231-106/026-000

EAN: 4044918339285

GTIN: 4044918339285

MPN: 231-106/026-000

Price range: £ 3.46 - £ 4.38 Excl. VAT

Connectors

Specifications

EFNA0008	V0
Contact type	Bus
Rated voltage	320
Housing colour	Grey
Coating housing	Uncoated
Number of poles	6
Housing material	Plastic
Material contact	Other copper alloys
Pollution degree	2
Rated current In	16
Type of connection	Printed circuit board to cable
Rated surge voltage	4
Operating temperature	-60 - 85
Over voltage category	III
Connectable cable type	Tubular cable
Material insulation body	Thermoplastic
Modular spacing contacts	5
With protective conductor	no
Material of contact surface	Tin
Modular spacing connections	5
Type of electric connection	Spring clamp connection
RAL-number (similar) housing	-
Number of plug-in contact rows	1
Angle contact/conductor connection	180° (horizontal)
Degree of protection (IP), mounted	IP20
Connectable conductor cross section solid-core	0.08 - 2.5
Connectable conductor cross section multi-wired	0.08 - 2.5
Connectable conductor cross section fine-strand with cable end sleeve	0.25 - 1.5
Connectable conductor cross section fine-strand without cable end sleeve	0.08 - 2.5
