ABB

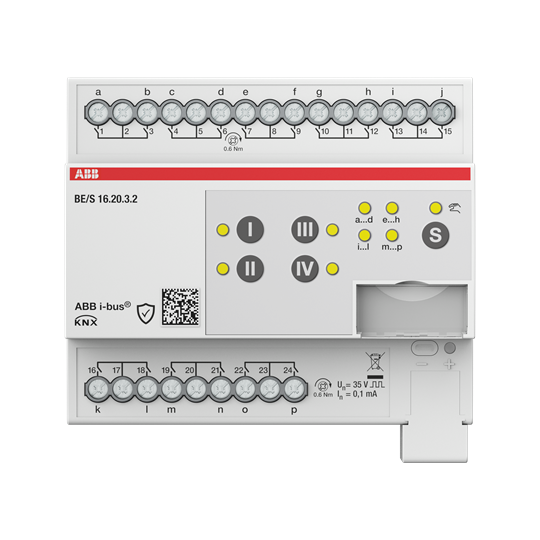

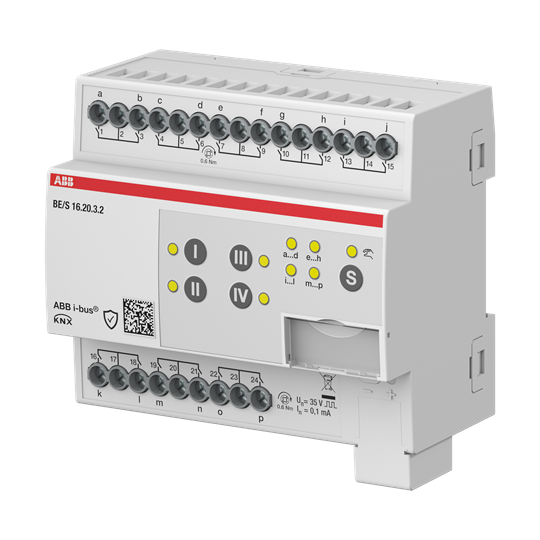

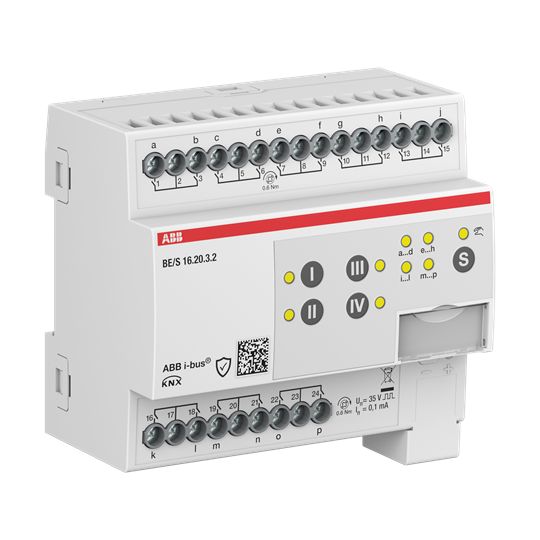

BE/S16.20.3.2 Binary Input, 16-fold, Contact Scanning, Manual Operation, MDRC

Scans floating contacts with internally generated scanning voltage. The state of the input is displayed via yellow LEDs. The binary inputs enable detection of independent input signals. The devices feature a manual operation pushbutton for each channel. The devices are powered via the ABB i-bus® and do not require an additional power supply. The devices support KNX Data Secure.

Product identifiers

SKU: 2CDG110278R0011
EAN: 4053546110845
GTIN: 4053546110845
MPN: BE/S16.20.3.2

Voltimum+ Loyalty Programme Loyalty points: 56

Price: £ 558.65 Excl. VAT

Categories

Cable Management Systems Cable Glands Armoured Cable Glands SWA Cable Glands

Specifications

Input voltage
Bus system KNX yes
Bus system LON no
LED controlling -
Mounting method DRA (DIN-rail adapter)
Number of inputs 16
Other bus systems None
Power consumption -
With LED indication -
Bus module detachable no
Bus system radio frequency no
Type of voltage (input voltage) Pulsed
Bus system KNX-RF (Radio Frequency) no
Min. depth of built-in installation box 63.5

Documents

Deeplink product page

Open

Deeplink REACH

9AKK108471A7754_en_B_Declaration regarding the REACH-Regulation.pdf

Open

Dimensioned drawing

6_TE_MB_XX_V1-0_2CDC072026F0017_Rev_A.pdf

Open

Instructions for use

BES_x2032_MBA_XX_V1-2_2CDG941235P0001_Rev_C.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK108472A2583_en_A_RoHS Exemption Information.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE Declaration of Conformity_(.PDF)_XX_BESx.20.3.2_9AKK108464A0594_Rev-B.pdf

Open

Declaration EPD (Environmental Product Declaration)

ABBG-00858-V01.01-EN.pdf

Open
