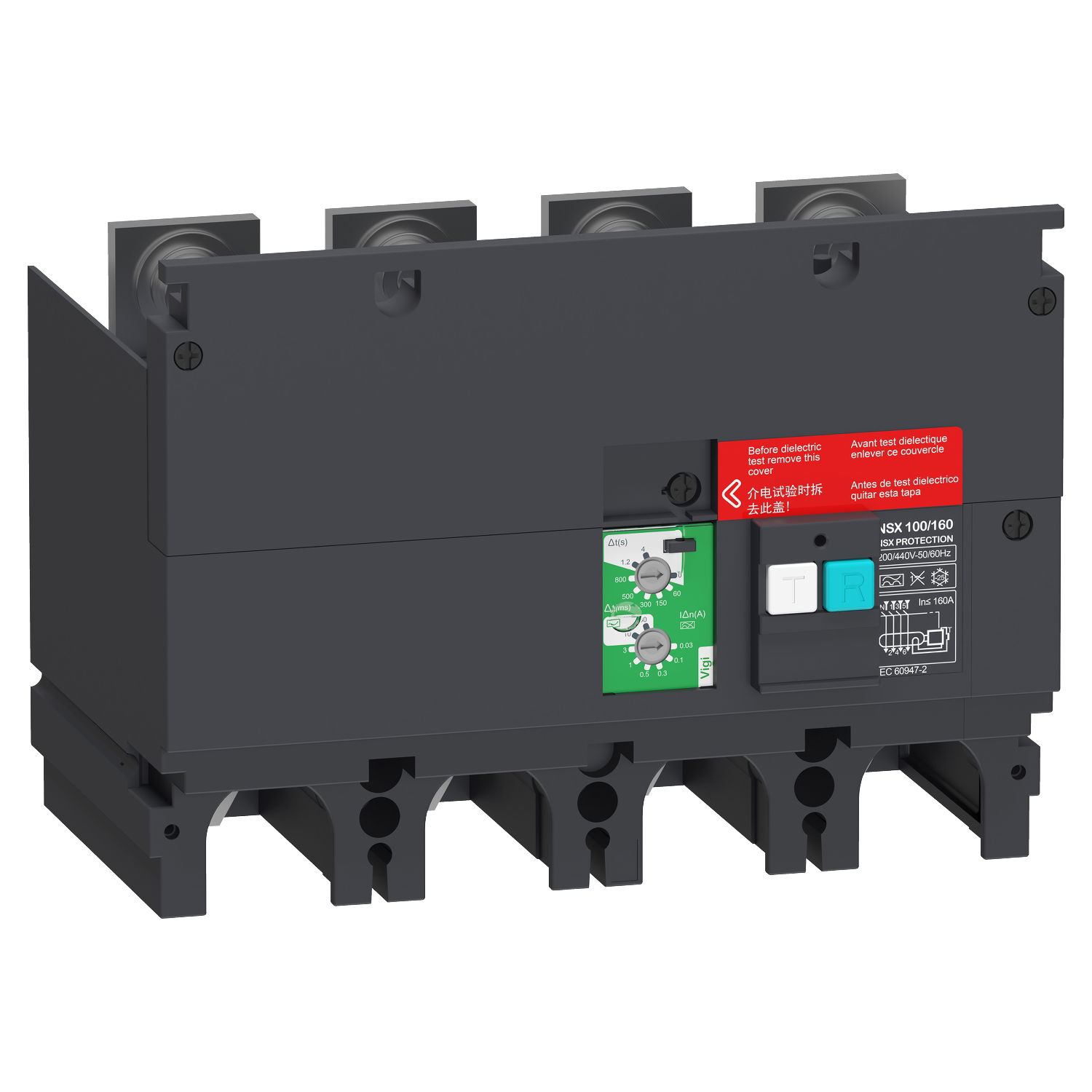

Earth-leakage VigiPacT add-on protection module, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles

Earth-leakage VigiPacT add-on protection module, ComPacT NSX 100/160, 200VAC to 440VAC, 30mA to 30A, 4 poles by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd and TLA. It is currently in stock at all of them. Trade prices range from £801.32 to £845.38 excl. VAT. Voltimum+ members earn 139 points per unit.

This is a Vigi add-on module for ComPact NSX 100/160 that provides an earth-leakage protection. It is used for 4 poles circuit breakers. The operational rated voltage is between 200 and 440 VAC 50/60 Hz. The earth-leakage sensitivity is adjustable from 30 mA to 30 A. It is installed directly on the device terminals and directly actuates the trip unit in case of earth-leakage default. This Vigi add-on module is self-powered internally by the distribution-system voltage, even is supplied by only 2 phases. It is compliant with IEC 60947-2 standard, annex B.

Product identifiers

SKU: LV429489
EAN: 3606481298553
GTIN: 3606481298553
MPN: LV429489

Voltimum+ Loyalty Programme Loyalty points: 139

Price range: £ 801.32 - £ 845.38 Excl. VAT

Categories

Circuit Breakers Switchgear & Circuit Protection RCBOs RCDs

ETIM group

Low-voltage industrial components

Specifications

Delay adjustable yes
Rated fault current
Max. power on-delay time 4000 ms
Max. rated operation voltage Ue 440 V
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz

Documents

Declaration of Conformity (Sustainability)

LV429489 REACh Regulation

Open

Instruction sheet

ComPacT NSX100-250 - VigiPacT Add-on / VigiPacT Add-on Alarm - Instruction Sheet

Open

Product data sheet

Open

Catalog

Low Voltage Power Distribution catalogue 2025

Open

Declaration of Conformity (Sustainability)

LV429489 EU RoHS Directive

Open

Declaration of conformity

UK-DoC_VigiComPacT_NSX100-250_type-B-F-N-H-S-L_PB16092701A-UK

Open

Environmental Disclosure

Vigi 200-440V 4P for NSX400/630 - Product Environmental Profile

Open

Circularity Profile

Vigi 200-440V 4P for NSX400/630 - End of Life Instructions

Open
