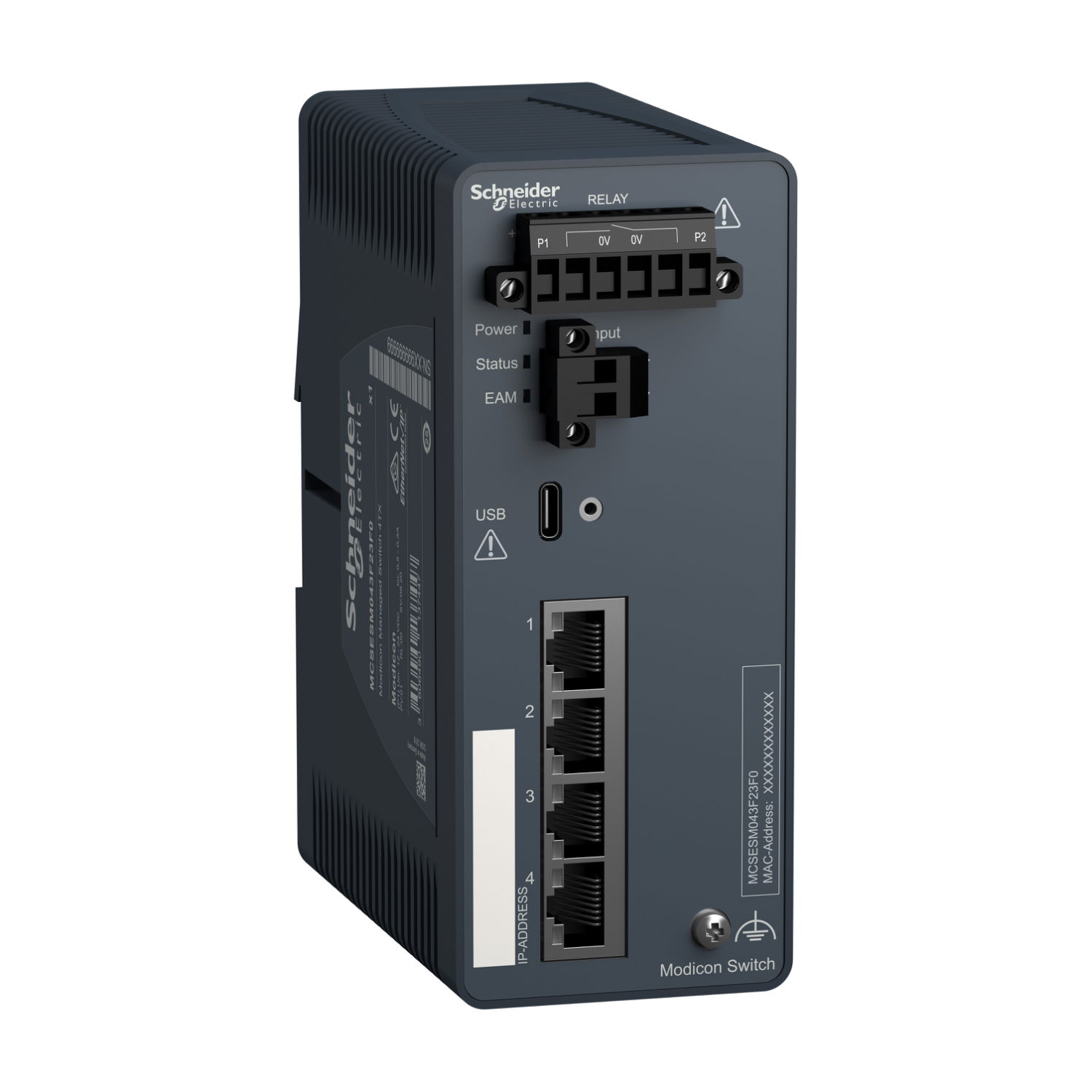

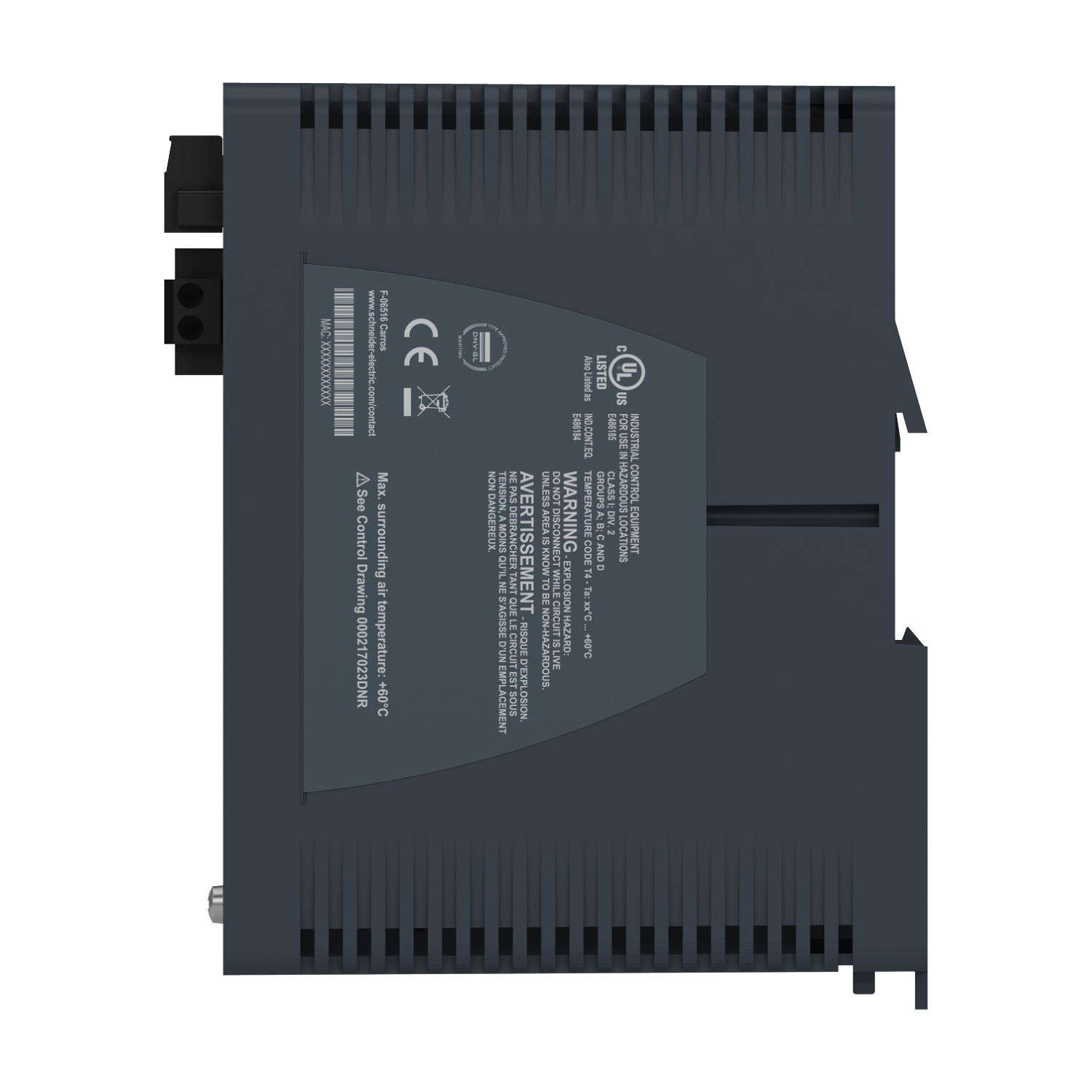

Modicon Managed Switch - 4 ports for copper

Link copied
SKU
EAN
GTIN
MPN

Modicon Managed Switch - 4 ports for copper by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell, and currently in stock. Trade price £1,036.00 excl. VAT. Voltimum+ members earn 68 points per unit.


Can you tell me about the Modicon Standard Managed Switch and what makes it unique?

The Modicon Managed Switch 4TX is a standard managed Layer 2 switch from Schneider Electric’s Modicon Networking range. It offers secure, flexible Ethernet integration for industrial operations and features a compact, DIN rail-mountable design for easy installation.

What are the key technical specifications of the Modicon Standard Managed Switch?
It provides various switching features, redundancy protocols, communication services, cybersecurity, industrial protocol profiles and diagnostic functions. This product has four copper RJ45 ports supporting 10/100 Mbps. The switch mounts on a 35 mm DIN rail, consumes 5 W, and supports dual power input with 12–24 V DC. It operates from 0 °C to 60 °C with IP30 protection, and measures 57 × 143 × 117 mm at 0.38 kg. It is CE, UL, RCM, EAC, UKCA, DNV, FCC, CCCEx certified and meets IEC62443-4-2, UL 61010, EN/IEC 61131, and EN/IEC 62368-1 standards.

What benefits does the Modicon Networking range offer?
The Modicon Networking range provides seamless Ethernet connectivity, flexibility, cybersecurity, and scalability for reliable industrial networking.

Voltimum+ Loyalty Programme Loyalty points: 68

Price: £ 1,036.00 Excl. VAT

Specifications

Depth 104 mm
Width 57 mm
Height 138 mm
Layer 2 yes
Layer 3 no
EFFR0001 no
EFFR0002 no
Ethernet no
Max. PoE power 0 W
Number of ports PoE 0
Max. power consumption 5 W
Redundant power supply yes
Power over Ethernet (PoE) Other
Number of ports 100 Mbps ST 0
Number of ports 100 Mbps POF 0
Number of ports 1000 Mbps GBIC 0
Number of ports 10/100 Mbps M12 0
Number of max. stackable switches 0
Number of ports 1000 Mbps SC (LX) 0
Number of ports 40 Gbps Mini GBIC 0
Number of ports 1000 Mbps Mini GBIC 0
Number of ports 100/1000 Mbps Mini GBIC 0

Documents

Declaration of Conformity (Sustainability)

MCSESM043F23F0 REACh Regulation

Open

User guide

Modicon MCSESM, MCSESP Series Managed Switch Security, User Guide

Open

Instruction sheet

MCSESM MCSESM-E MCSESP Managed Switch, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog Modicon Networking: Connecting Ethernet devices - English

Open

Declaration of Conformity (Sustainability)

MCSESM043F23F0 EU RoHS Directive

Open

Declaration of conformity

Modicon Switch, Declaration of Conformity, UKCA, Schneider Electric

Open

Environmental Disclosure

Modicon Unmanaged Switch - Product Environmental Profile

Open
