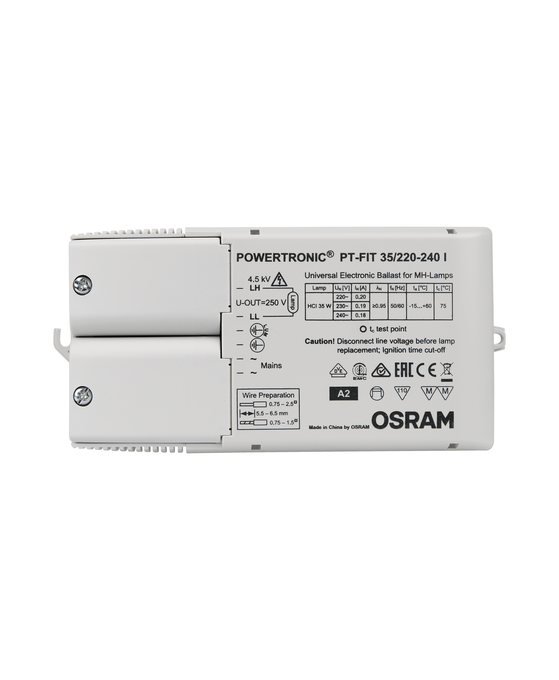

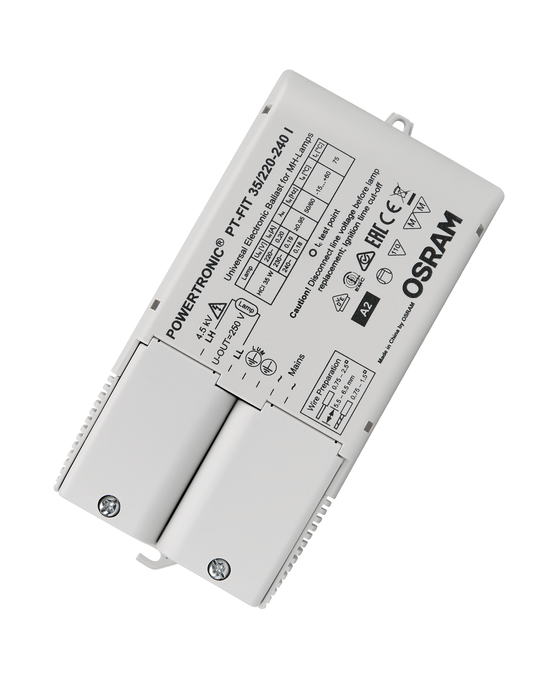

PT-FIT 35/220…240 I
Product benefits
- ECG with ergonomic strain relief for correct installation in suspended ceilings
- Optimized cost/benefit factor
- Automatic safety shutdown of lamps in the event of a defect or at end of life (EoL)
Areas of application
- Shop lighting
- Health and fitness areas (in luminaires with protection class IP66 or higher)
- Effect and accent lighting
Product features
- Energy Efficiency Index EEI: A2
- Supply voltage: 220 240 V
- Line frequency: 50 60 Hz
- RI suppression: to EN 55015/CISPR 15
- Safety: to EN 61347-2-12
- Line harmonics according to EN 61000-3-2
- Immunity according to EN 61547
Safety advice
- Thermal characteristics Ballast losses and lamp heat radiation can lead to heat accumulation in a completely closed case. Therefore it is necessary to ensure that the temperature at the measuring point tc of the ECG does not exceed the maximum value.
- Attention! For safety reasons disconnect the device before replacing the lamp!
Product identifiers
SKU: 4008321377661
EAN: 4008321377661
GTIN: 4008321377661
MPN: 4008321377661
Price: £ 0.00 Excl. VAT
Specifications
Lifespan
| ECG lifetime | 30000 h 1) |
Capabilities
| Dimmable | No |
| Overheating protection | Power reduction and switch off at T > 75 °C at the tc point |
| Max. cable length to lamp/LED module | 1.5 m |
| Suitable for fixtures with prot. class | I |
| Suitable for emergency lighting | No |
Electrical data
| Nominal wattage | 43.00 W |
| Nominal voltage | 220…240 V |
