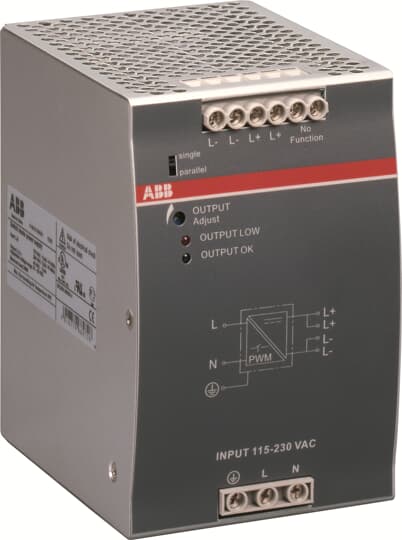

CP-E 48/5.0 Power supply In:115/230VAC Out: 48VDC/5A

Link copied
SKU
EAN
GTIN
MPN

CP-E 48/5.0 Power supply In:115/230VAC Out: 48VDC/5A by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Farnell, RS Components and TLA. It is currently in stock at 2 of them. Trade prices range from £224.02 to £268.82 excl. VAT. Voltimum+ members earn 138 points per unit.

The CP-E 48/5.0 is a power supply from the CP-E range. The primary switch mode power supply offers a wide range input of 90-132 V AC, 180-264 V AC and 210-375 V DC, rated input voltage is 115 or 230 V AC (auto select). The rated output power is 240 W, rated output current is 5 A at an output voltage of 48 V DC. The output voltage is adjustable within a range of 47 to 56 V DC. The power supply provides an U/I output characteristic. In order to increase capacity, up to 3 units can be connected in parallel.

Voltimum+ Loyalty Programme Loyalty points: 138

Price range: £ 224.02 - £ 268.82 Excl. VAT

Specifications

Depth 123.6
Width 83
Height 123.6
Stabilized yes
Power output 240
Built-in width 83
Built-in height 123.6
Modular version no
Short-circuit-proof yes
Max. output current 2 0
Wall mounting possible no
Direct mounting possible no
Output voltage stabilized yes
Suitable for rail mounting yes
Type of electric connection Screw connection
2nd secondary output voltage
Secondary voltage adjustable no
Rated supply voltage AC 60 Hz
Voltage type (supply voltage) AC/DC
Nominal value output current 2 0
Nominal value output voltage 1 48
Nominal value output voltage 3 0
Performance level according to EN ISO 13849-1 None

Documents

Deeplink product page

Open

Deeplink REACH

1SVD982001-4501_en_C_REACh Info for Power Supplies.pdf

Open

Dimensioned drawing

2CDC001079B0201_Rev B_MSS 2D and 3D files for CAD systems.pdf

Open

Instructions for use

1SVC427033M0001_A.pdf

Open

Product data sheet

Open

Declaration RoHS

1SVD982001-4401_ROHS_Power_Supplies_revB_DESTO_withAppendix.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

1SVD982035-0000_20210118.pdf

Open
