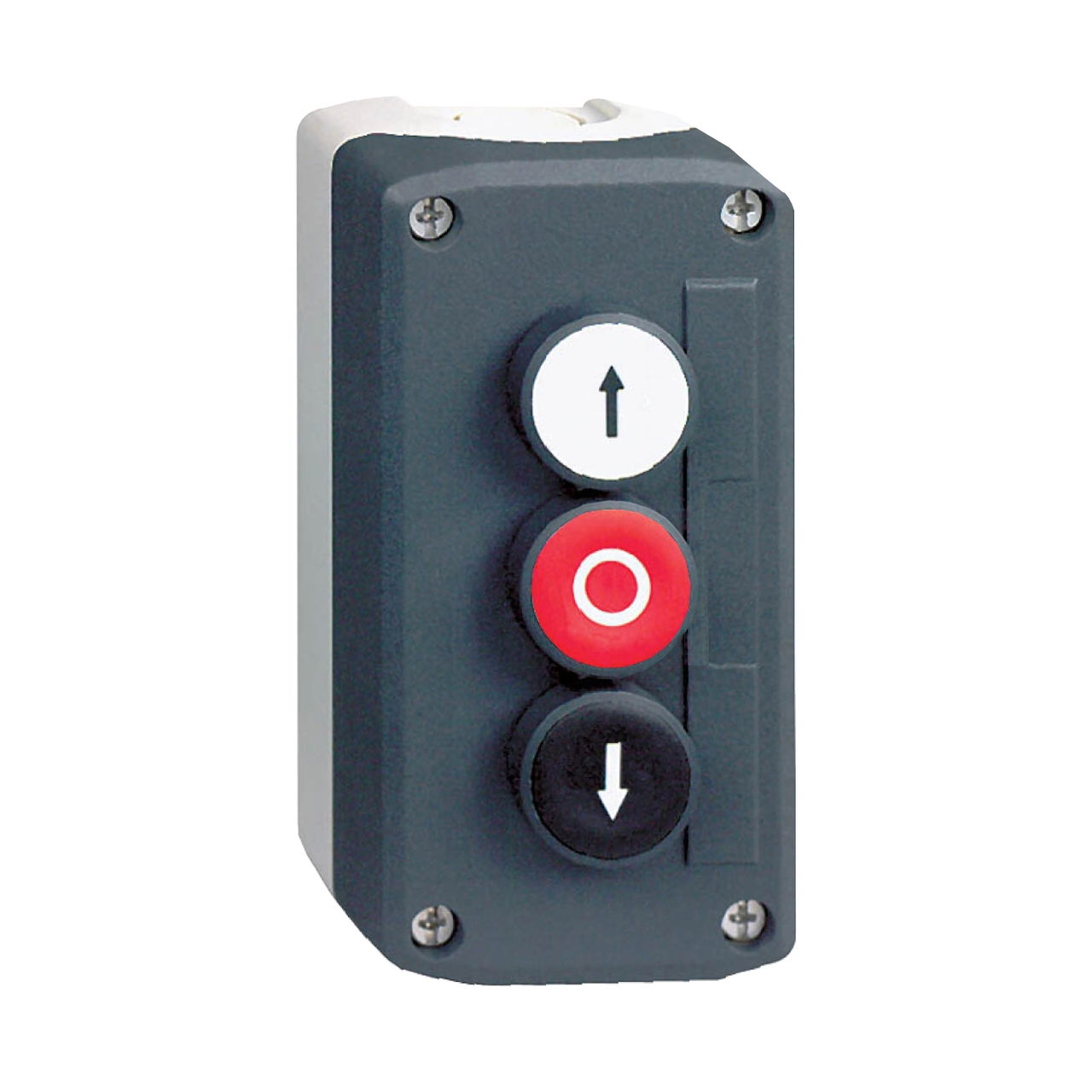

Dark grey station - white flush/red flush/black flush pushbuttons Ø22

Name: Dark grey station - white flush/red flush/black flush pushbuttons Ø22
Brand: Schneider Electric
SKU: XALD324E
Availability: InStock

Dark grey station - white flush/red flush/black flush pushbuttons Ø22 by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Control Components Anglia and Farnell. Trade prices range from £80.50 to £83.75 excl. VAT. Voltimum+ members earn 10 points per unit.

This Harmony XALD yellow control station with 3 functions is ideal for your complete control station. It operates with spring return mechanism and uses screw-clamp terminals. This control station with 3 push buttons for 3 functions enables machine builders to easily add required control and signalling functionality on their machines. Its schematic is clearly distinguishable thanks to clear colors and markings. It is impact resistant, dust resistant, water resistant, corrosion resistant, and vibration resistant thanks to its IP69 / IP67 / IP66 / IP69K, making it ideal for operation in harsh environments. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product. Vibration resistant screw clamp connection terminals ensure high vibration resistance making product suitable installation on high impact machine. The Harmony XALD and XALK ontrol stations are available either as fully assembled units or as customizable solutions for customer assembly.

Product identifiers

SKU: XALD324E

EAN: 3389110114553

GTIN: 3389110114553

MPN: XALD324E

Loyalty points: 10

Price range: £ 80.50 - £ 83.75 Excl. VAT

Specifications

Housing colour	Grey
Housing material	Plastic
Power consumption	-
Colour housing cover	Grey
Number of key switches	0
Number of push buttons	3
Degree of protection (IP)	Other
Number of indicator lights	0
Degree of protection (NEMA)	4X, 13
Number of command positions	3
Number of selector switches	0
Suitable for emergency stop	no
Rated control supply voltage DC
Rated control supply voltage AC 50 Hz
Rated control supply voltage AC 60 Hz
Number of mushroom-shaped push-buttons	0
Number of contacts as change-over contact	0
Number of contacts as normally open contact	3
Number of contacts as normally closed contact	3
