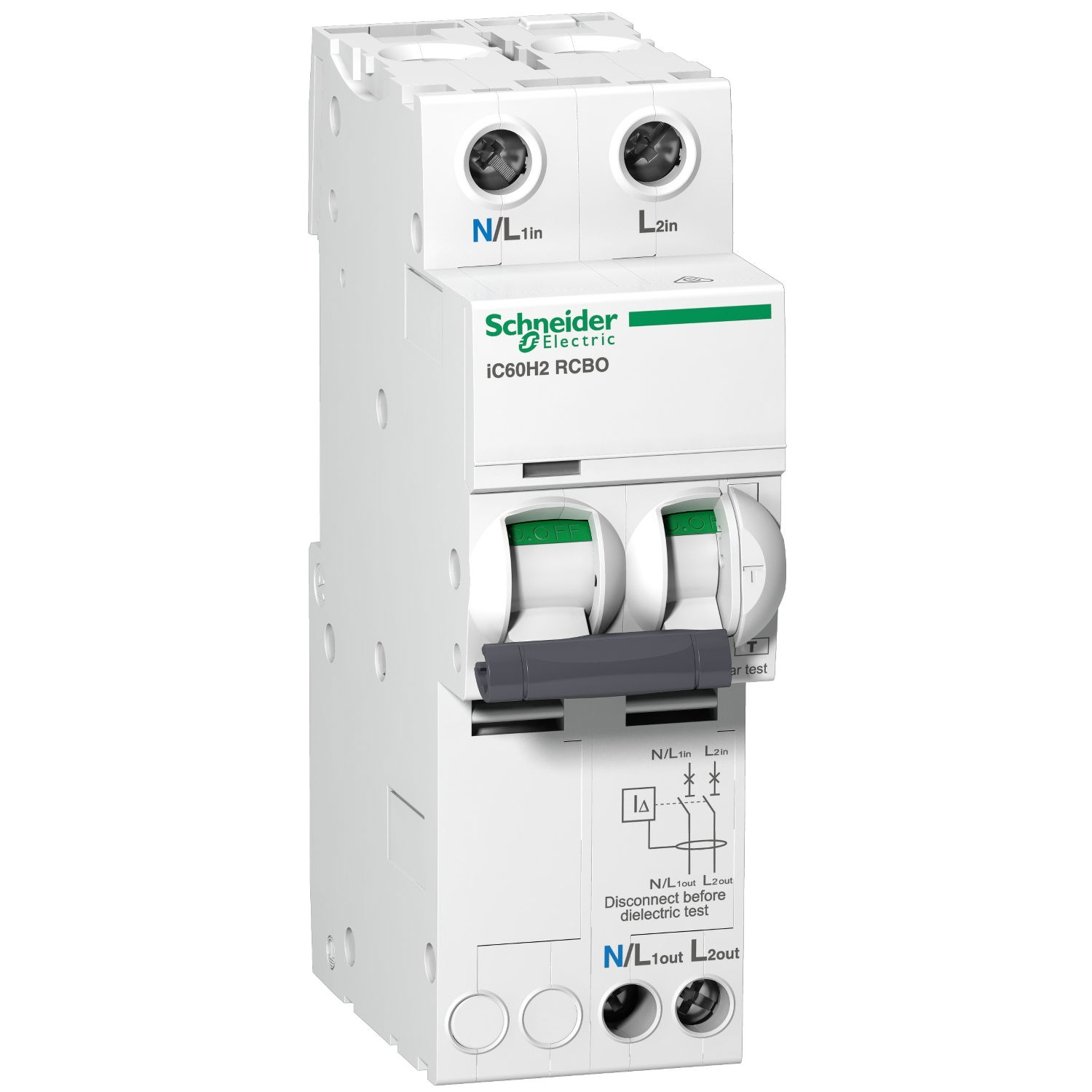

IC60H2 - earth leakage circuit breaker - 2P - C curve - 32 A - 30 mA - 110 V

IC60H2 - earth leakage circuit breaker - 2P - C curve - 32 A - 30 mA - 110 V by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including RS Components and Rexel Group. It is currently in stock at all of them. Trade price £326.09 excl. VAT. Voltimum+ members earn 30 points per unit.

This Acti9 iC60 is a modular residual current breaker with overcurrent protection (RCBO). It is a 2P circuit breaker with 2 protected poles, 32A In rated current and C tripping curve. The earth leakage protection class is A type with a sensitivity of 30mA. The earth-leakage protection time delay is instantaneous. The Icn rated short circuit breaking capacity is up to 10000A according IEC 61009-2-2 standard. Its unique Visitrip indicator reduces intervention time by showing the faulty circuit. Its Visisafe green strip guarantees the physical opening of the contacts to allow downstream maintenance. Its fast closing mechanism independent of manual operation improves its service life. This product is compliant with IEC 61009-1 and AS/NZS 61009.1 standards. It has an electrical endurance going up to 5000 cycles and a mechanical endurance going up to 20000 cycles. The Ue operational voltage is 110VAC. The Ui rated insulation voltage is 400VAC. The Uimp rated impulse withstand voltage is 4kV. The frequency is 50Hz. It is DIN rail mountable. The width in 9mm pitches is 4. The product color is white (RAL9003). The dimensions are (W) 36mm x (H) 110mm x (D) 75.5mm. The weight is 332g. According to IEC 60529 standard, the degree of protection is IP20 and IP40 in enclosure. The operating temperature is from -15°C to 60°C. The storage temperature is from -40°C to 85°C.

Product identifiers

SKU: A9D19232
EAN: 3606480558719
GTIN: 3606480558719
MPN: A9D19232

Voltimum+ Loyalty Programme Loyalty points: 30

Price: £ 326.09 Excl. VAT

Categories

RCBOs Switchgear & Circuit Protection Circuit Breakers

ETIM group

Circuit breakers and fuses

Specifications

Frequency 50 Hz
Power loss -
Voltage type AC
Rated current 32 A
Rated voltage 110 V
Built-in depth 45 mm
Pollution degree 3
Rated fault current 0.03 A
Over voltage category 4
Release characteristic C
Number of poles (total) 2
Degree of protection (IP) IP20
Flush-mounted installation no
Disconnection characteristic Undelayed
Width in number of modular spacings 2
Rated impulse withstand voltage Uimp 4 kV
Connectable conductor cross section solid-core
Rated short-circuit breaking capacity according to EN 61009 -
Rated short-circuit breaking capacity Icn according to EN 61009-1 10 kA

Documents

Declaration of Conformity (Sustainability)

A9D19232 REACh Regulation

Open

Instruction sheet

iC60H2 RCBO - A9Doo2oo - Instruction Sheet

Open

Product data sheet

Open

Catalog

Acti9 Isobar P Active Safety System

Open

Declaration of Conformity (Sustainability)

A9D19232 EU RoHS Directive

Open

Declaration of conformity

UKCA Declaration of Conformity_RCBO_iC60H2

Open

Environmental Disclosure

iC60H RCBO 1PPNS 32A 10mA A 230V - Product Environmental Profile

Open

CAD

Open
