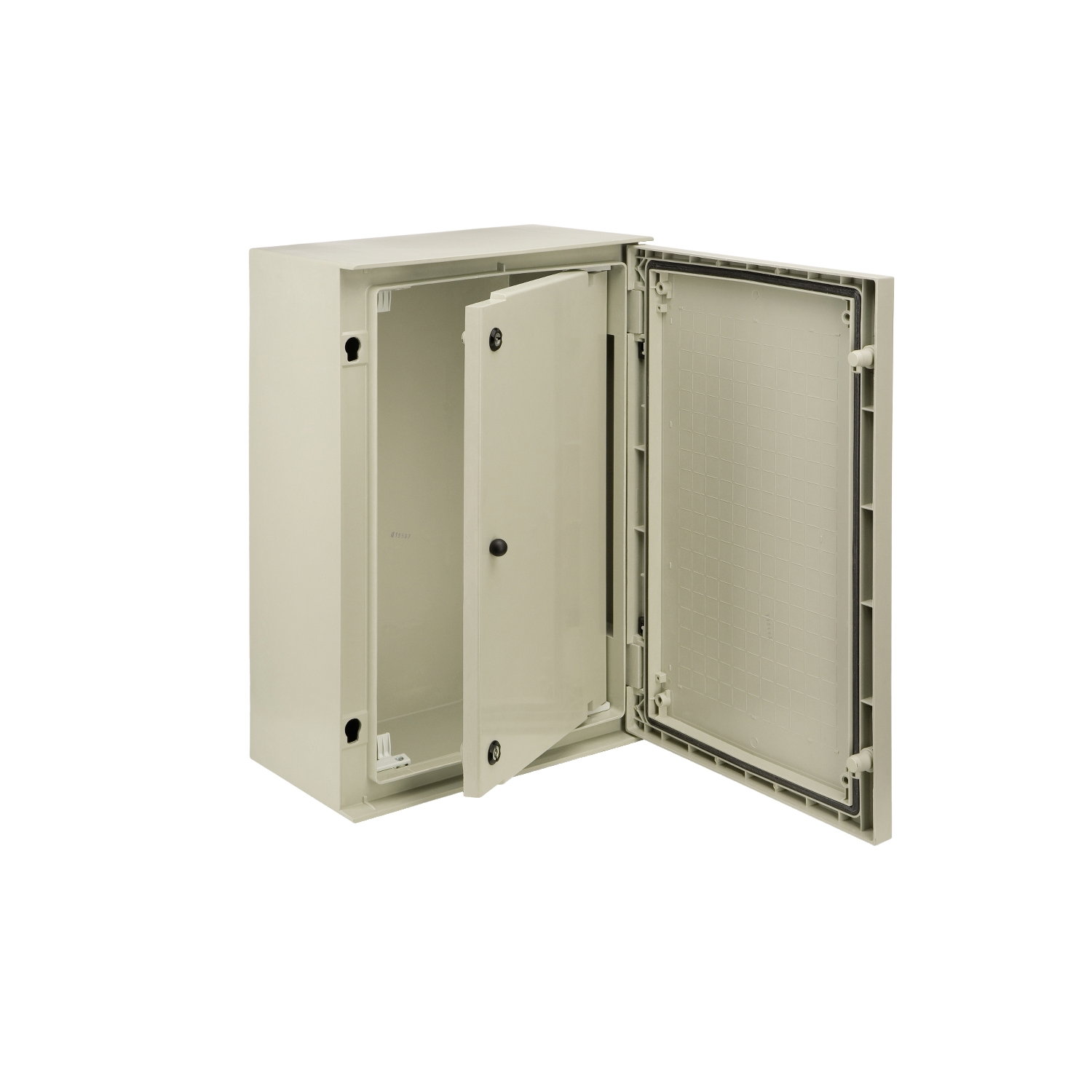

Reversible internal door polyester 2 locks grid pattern forPLM54

Reversible internal door polyester 2 locks grid pattern forPLM54 by Schneider Electric is listed by 5 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, RS Components and 2 more. It is currently in stock at 4 of them. Trade prices range from £41.69 to £55.73 excl. VAT. Voltimum+ members earn 7 points per unit.

Internal plain door for PanelSeT PLM. The product is to be mounted on front side of the enclosure. The grid pattern width is 305mm. The grid pattern height is 415mm. The available depth between enclosure door depth is 26mm and available depth between rear depth is 152mm. The door is made of polyester charged with fibreglass (RAL 7035) and has a degree of IP protection IP20. Hinges left or right (110 ° opening angle). The door has 2 locks with 5mm double bar.

Product identifiers

SKU: NSYPAP54G
EAN: 3606480774195
GTIN: 3606480774195
MPN: NSYPAP54G

Voltimum+ Loyalty Programme Loyalty points: 7

Price range: £ 41.69 - £ 55.73 Excl. VAT

Categories

Enclosures & Panels Electrical Enclosures

ETIM group

Control cabinet systems

Specifications

Depth 20 mm
Model Compartment door
Width 356.5 mm
Colour Grey
Height 476.5 mm
Material Plastic
EMC-version no
Surface finishing Untreated
Degree of protection (IP) IP20
Version as door for disconnecting switch interlocking no
