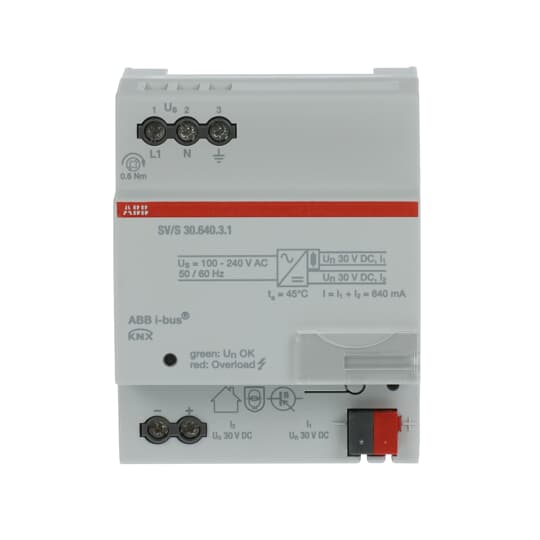

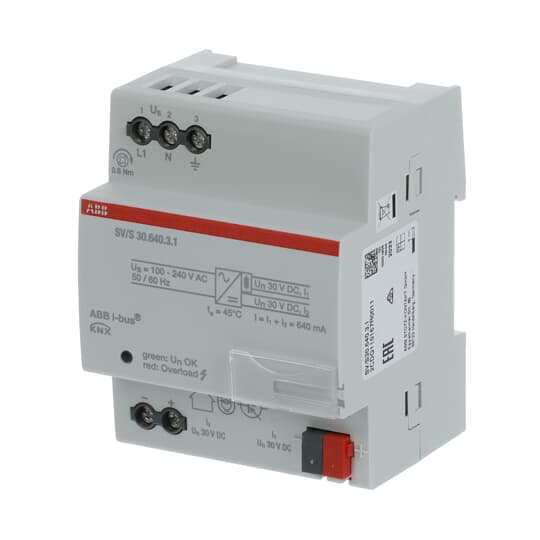

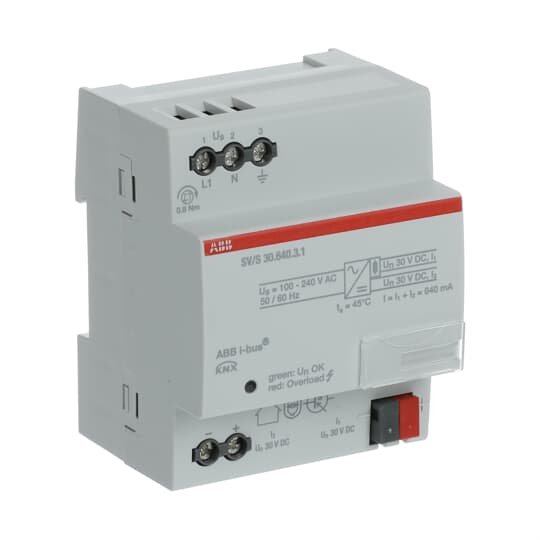

SV/S30.640.3.1 Power Supply, 640 mA, MDRC
KNX power supplies 640 mA generate and monitor the KNX system voltage (SELV). The bus line is decoupled from the power supply by an integrated choke. The voltage output is short-circuit and overload protected. The two-color LED indicates device output status. Device type SV/S 30.640.3.1 has an additional 30 V DC short-circuit and overload protected voltage output that can be used to power an additional bus line (in combination with a separate choke). With two-coloured status indicator and wide range input from 85…265 V AC, 50/60 Hz.
Product identifiers
SKU: 2CDG110167R0011
EAN: 4016779906210
GTIN: 4016779906210
MPN: SV/S 30.640.3.1
Loyalty points: 186
Price range: £ 380.22 - £ 393.49 Excl. VAT
Categories
Features
|
Bus system KNX
|
yes
|
|
Bus system LON
|
no
|
|
Mounting method
|
DRA (DIN-rail adapter)
|
|
Other bus systems
|
None
|
|
Secondary voltage
|
-
|
|
Bus system Powernet
|
no
|
|
Max. output current
|
640.00 mA
|
|
With LED indication
|
yes
|
|
Bus voltage stockable
|
no
|
|
Number of lines to feed
|
2
|
|
Bus system radio frequency
|
no
|
|
Number of integrated choke coils
|
1
|
|
Bus system KNX-RF (Radio Frequency)
|
no
|
|
Width in number of modular spacings
|
4.0
|
