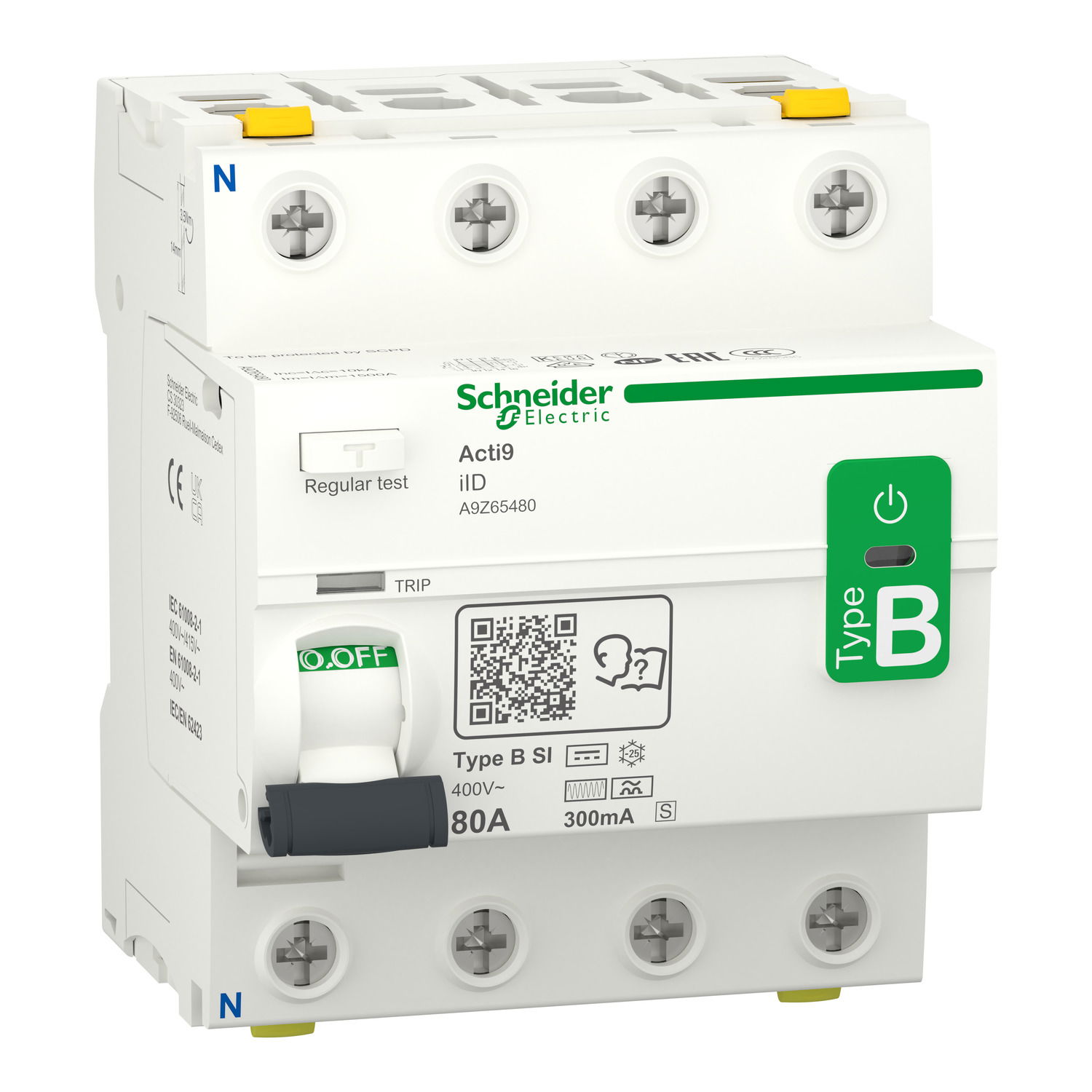

Acti9 iID - Residual Current Circuit Breaker - 4P - 80A - 300mA - S - B-SI type

Link copied
SKU
EAN
GTIN
MPN

Acti9 iID - Residual Current Circuit Breaker - 4P - 80A - 300mA - S - B-SI type by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £1,826.43 to £2,806.00 excl. VAT. Voltimum+ members earn 305 points per unit.

This Acti9 iID product is a modular and reliable residual current circuit breaker (RCCB). It is a 4P circuit breaker with In rated current of 80A, B-SI type protection class and a 300mA earth leakage sensitivity. This product protects against electric shock by indirect contact. It performs the function of disconnection of electrical circuits in case of earth fault. Its unique Visitrip indicator reduces intervention time by showing the faulty device with a mechanical indicator on front face. This product also has a VisiSafe window with a green strip on the toggle indicating full opening of the poles allowing downstream maintenance. This product complies with IEC/EN 61008-2-1 and IEC/EN 62423 standards. It is certified with CCC certification. The (Im/IΔm) rated breaking and making short circuit capacity is 1500A. The (Inc/IΔc) conditional rated short circuit current is 10kA. The electrical endurance is up to 10000 cycles. The mechanical endurance is up to 20000 cycles. The Ue rated operational voltage is 400VAC. It is DIN rail mountable. The width in 9mm pitches is 8. The pollution degree is 3. The overvoltage category is IV. The product colour is white (RAL 9003). The dimensions are (W) 72mm x (H) 88mm x (D) 79mm. The weight is 415g. According to IEC 60529 standard, the IP degree of protection is IP20 and becomes IP40 once in a modular enclosure. The operating temperature is from -25°C to 60°C. The storage temperature is from -40°C to 85°C.

Voltimum+ Loyalty Programme Loyalty points: 305

Price range: £ 1,826.43 - £ 2,806.00 Excl. VAT

Specifications

Frequency 50 Hz
Power loss 6.68 W
Voltage type AC
Rated current 80 A
Rated voltage 400 V
Built-in depth 44 mm
Explosion-proof no
Mounting method DIN rail
Pollution degree 3
Leakage current type B
Selective protection yes
With interlocking device no
Rated insulation voltage Ui 500 V
Additional equipment possible yes
Ambient temperature during operating
Short-circuit breaking capacity (Icw) -
Connectable conductor cross section multi-wired
