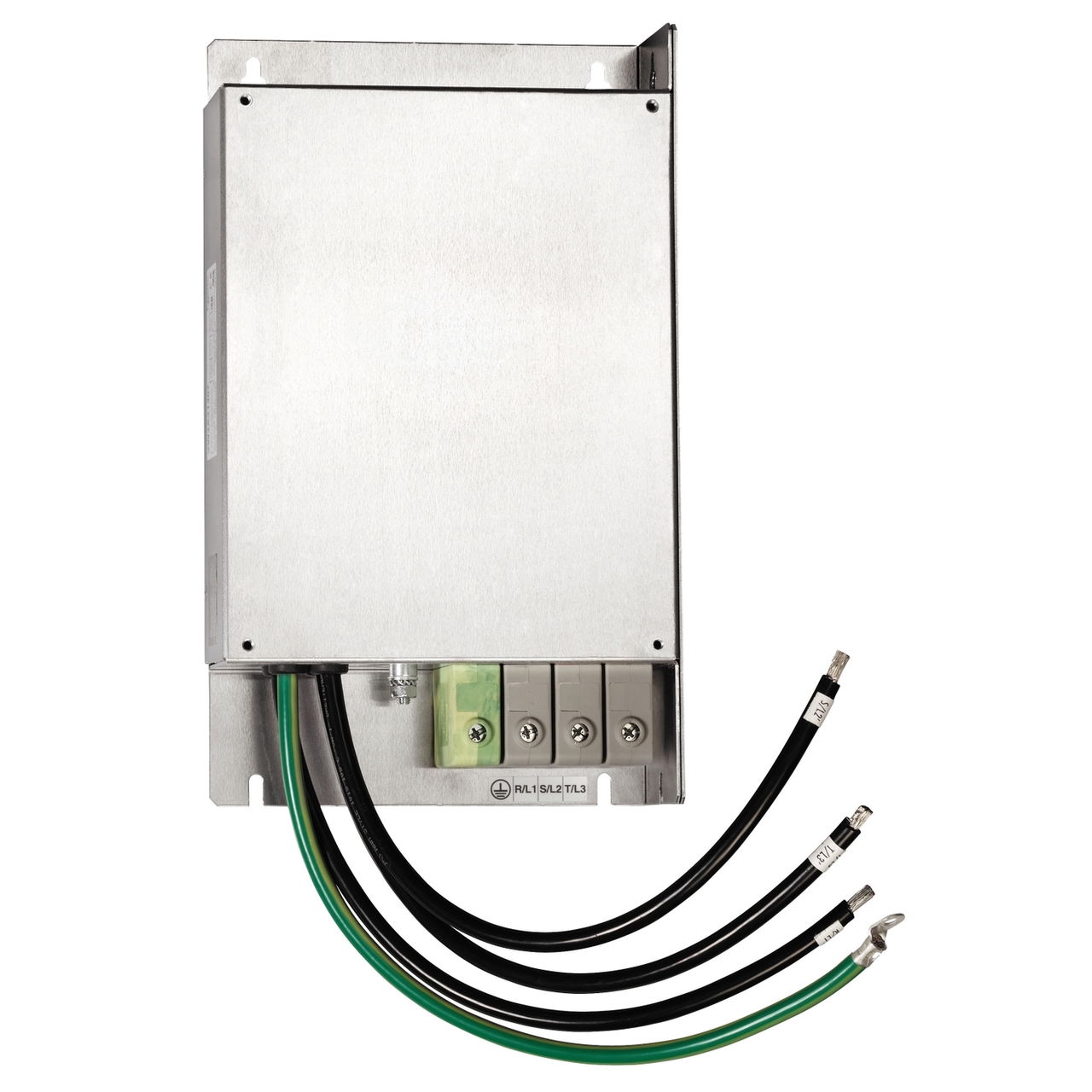

Additionnal EMC filter - 47 A - 3 PH

Link copied
SKU
EAN
GTIN
MPN

Additionnal EMC filter - 47 A - 3 PH by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and City Electrical Factors. It is currently in stock at 1 of them. Trade prices range from £202.34 to £212.76 excl. VAT. Voltimum+ members earn 30 points per unit.

"This EMC input filter is an option for variable speed drives of the Altivar range and servo drives of the Lexium range." "The additional EMC input filters enable the drives to meet more stringent requirements." "Its rated current is equal to 47A." "It is used to reduce conducted emissions on the line supply below the limits of standards IEC/EN 61800-3 category C1 or C2 and enlarge the maximum motor cable length for category C3." "It is designed for 380V…500V three-phase supply voltage." "It weighs 3.15kg." "This additional EMC filter can only be used on TN (neutral connection) and TT (earthed neutral) type systems." "It can be mounted beside or under the drive. The drive's power supply is then connected directly via the filter output cable."

Voltimum+ Loyalty Programme Loyalty points: 30

Price range: £ 202.34 - £ 212.76 Excl. VAT

Specifications

Accessory yes
Spare part no
Type of accessory/spare part Filter

Documents

Declaration of Conformity (Sustainability)

VW3A4424 REACh Regulation

Open

Instruction sheet

Altivar 31, 312, and 32 Motor Cable Installation Guidelines for Baggage Conveyance Applications

Open

Catalog

Discover the catalog of Altivar HVAC ATH200 variable speed drives

Open

Declaration of Conformity (Sustainability)

VW3A4424 EU RoHS Directive

Open

Declaration of conformity

ATV320C EU DECLARATION

Open
