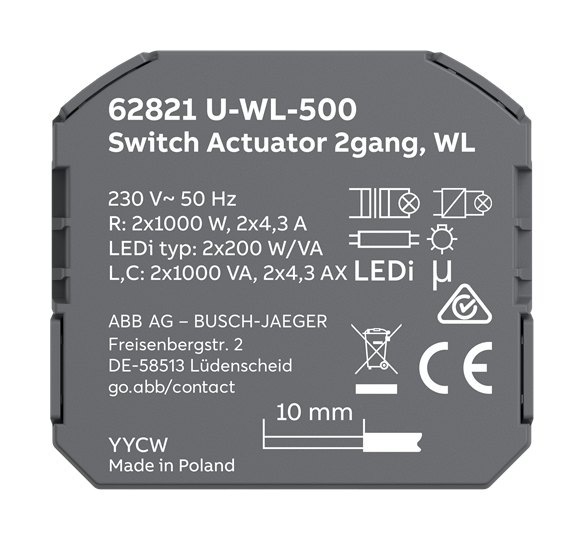

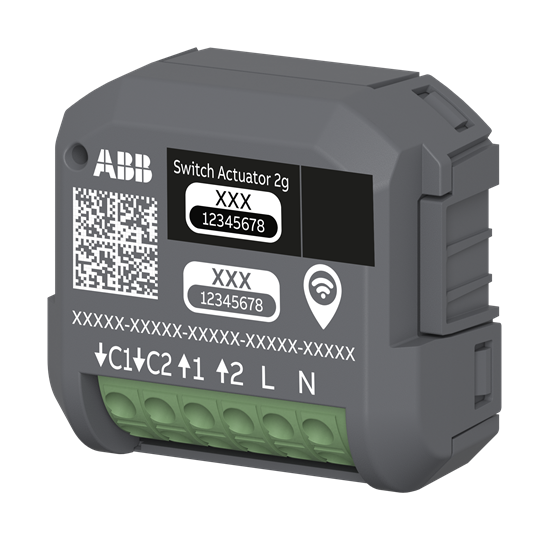

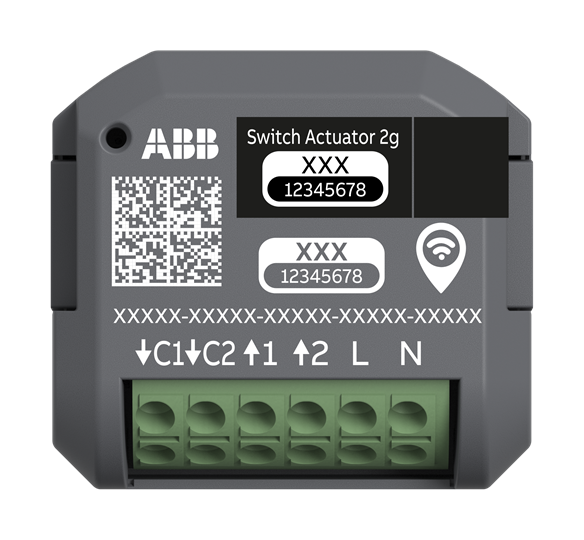

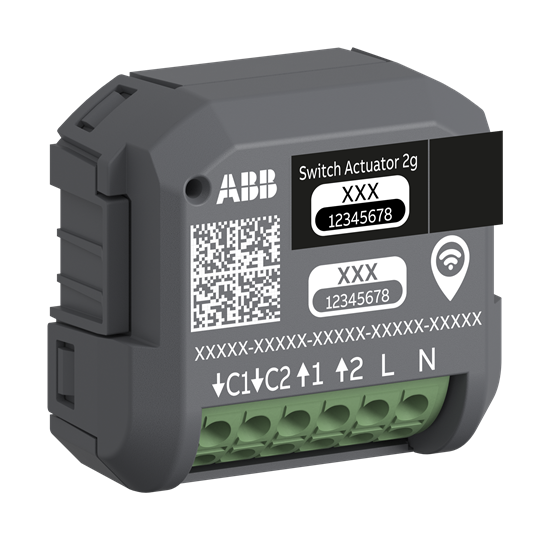

Switch Actuator 230 V AC free@home wireless

Link copied
SKU
EAN
GTIN
MPN
Flush mounted actuator 2gang wireless for switching of lighting systems. Operation in ABB-flexTronics® wireless (device control) or networking of up to 32 devices (room con-trol). Integration in ABB-free@home® wireless with System Access Point up to 150 devices. 3 wire connection (neutral conductor required). With plug clamps. With extension input. Operation also possible via conventional push buttons or switches. Remote operation via Bluetooth and smartphone/tablet app. Programming via Bluetooth with the ABB-free@home® Next App or the web interface of the System Access Point.

Voltimum+ Loyalty Programme Loyalty points: 9

Price: £ 86.49 Excl. VAT

Specifications

Output power -
Rated current 4.3
Bus system KNX no
Bus system LON no
Mounting method Flush-mounted
Other bus systems Other
Power consumption -
Bus system Powernet no
With LED indication yes
Max. switching power 1000
Modular expandability -
Rated operating voltage
Number of digital inputs -
Bus system radio frequency no
Radio frequency bidirectional -
Max. number of switching contacts 2
Width in number of modular spacings -
