SELECTOR SWITCH 600VAC 10A 30MM SK

Link copied
SKU
EAN
GTIN
MPN

SELECTOR SWITCH 600VAC 10A 30MM SK by Schneider Electric is listed by 2 electrical wholesalers on Voltimum UK, including Farnell and RS Components. It is currently in stock at 1 of them. Trade price £83.90 excl. VAT. Voltimum+ members earn 10 points per unit.

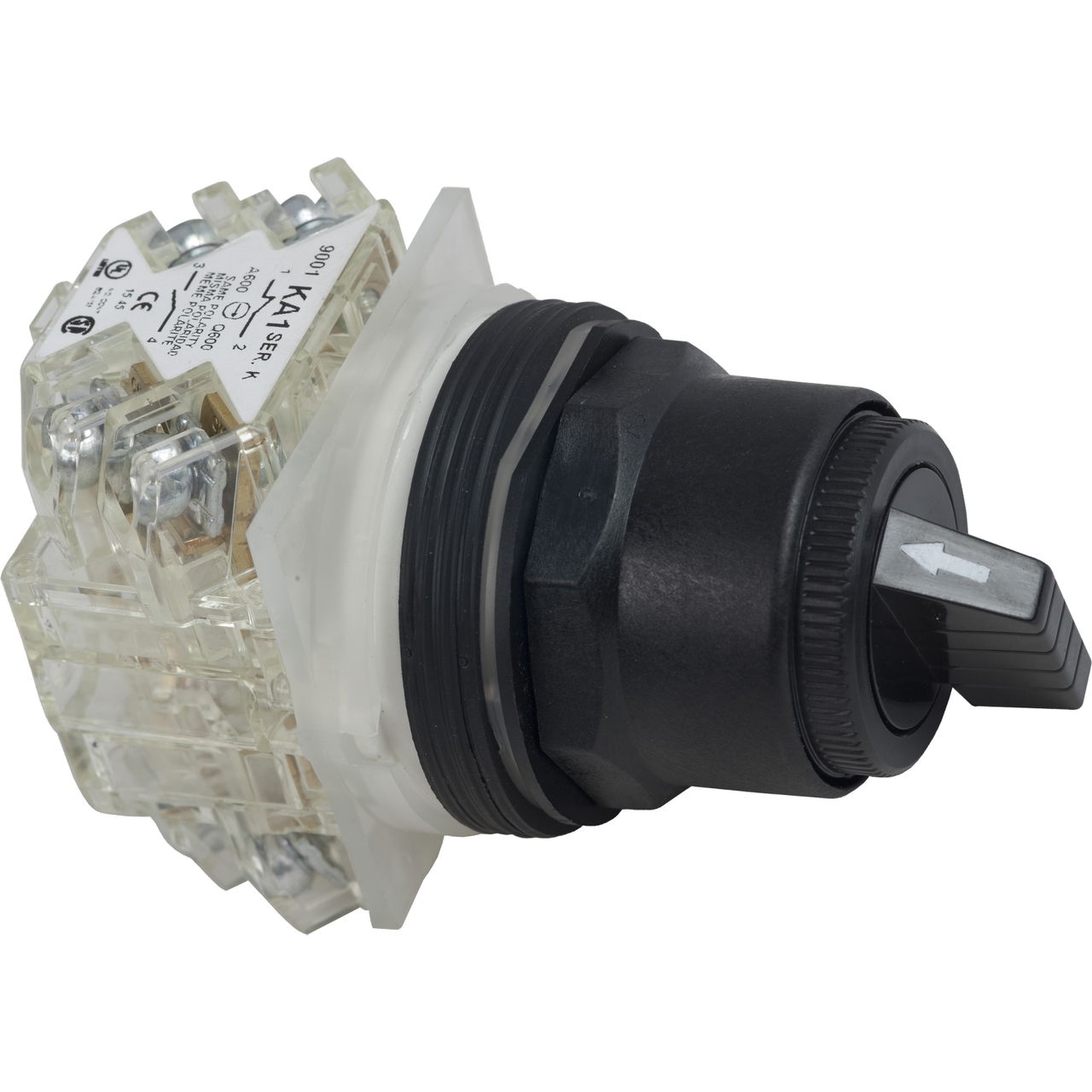

This selector switch is part of the range of control and signaling units, Harmony 9001SK diameter 30mm plastic. It has a double insulated bezel. It is supplied with a black standard knob. Thanks to its double insulated bezel it is adapted for applications requiring a high resistance to corrosion. It is easily installed into a standard 30mm diameter panel cut-outs and its protection index is IP66. It features 3 positions. The 30 mm Harmony range offers a large choice of robust and reliable products to meet a great number of applications in heavy industries such as petrochemy, metallurgy, mining oil and gas wastewater treatment, automobile manufacturing. It is UL listed and CSA certified, CE declaration of conformity and RoHS compliant.

Voltimum+ Loyalty Programme Loyalty points: 10

Price: £ 83.90 Excl. VAT

Specifications

Power loss -
Colour button Black
Hole diameter 31 mm
Spring-return no
Width opening -
Height opening -
Supply voltage
With front ring yes
With light source no
Suitable for lighting no
Degree of protection (IP) IP66
Degree of protection (NEMA) 4X
Type of electric connection Other
Number of contacts as normally open contact 0

Documents

Declaration of Conformity (Sustainability)

9001SKS43BH2 REACh Regulation

Open

Instruction sheet

9001 K/SK Selector Switches Installation Instructions

Open

Product data sheet

Open

Catalog

DIA7ED2170701EN_UK

Open

Declaration of Conformity (Sustainability)

9001SKS43BH2 EU RoHS Directive

Open

Declaration of conformity

UE-DoC-9001KR16/9001SKR16, 9001KR18/9001SKR18, 9001KES18 Emergency stop pushbuttons, 9001KYG1Y Control stations

Open

Environmental Disclosure

Harmony ⌀30mm Emergency Stop Illuminated Body

Open

Circularity Profile

Harmony ⌀30mm Emergency Stop Illuminated Body

Open
