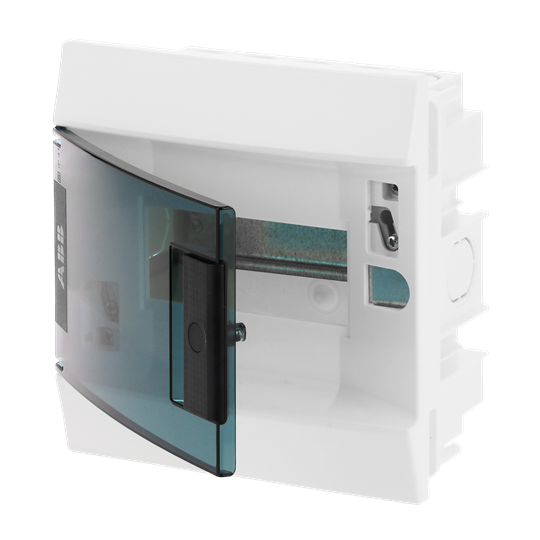

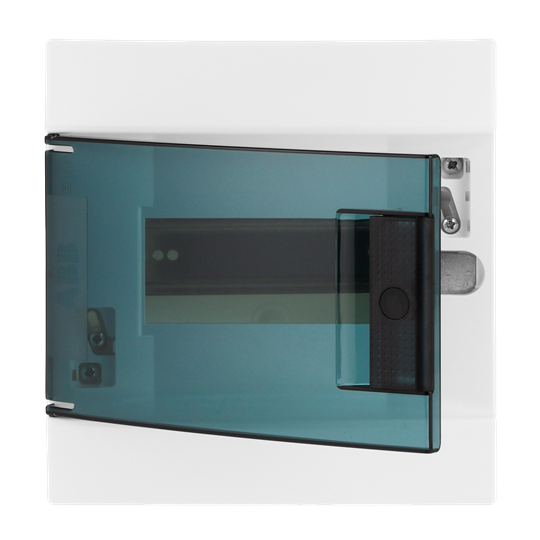

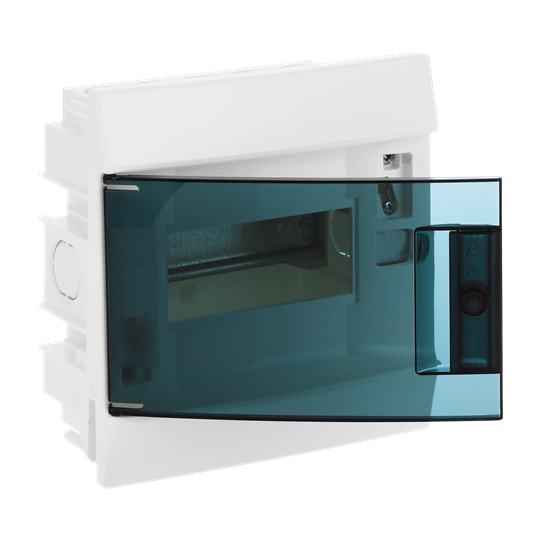

Consumer unit MISTRAL41F, Hollow wall, 6 modules, 1 row(s), IP41, Door: Single, Plastic, Transparent, Dimensions: 202 mm x 192 mm x 104 mm

Link copied
SKU
EAN
GTIN
MPN

Consumer unit MISTRAL41F, Hollow wall, 6 modules, 1 row(s), IP41, Door: Single, Plastic, Transparent, Dimensions: 202 mm x 192 mm x 104 mm by ABB is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £28.36 excl. VAT. Voltimum+ members earn 17 points per unit.

MISTRAL41F flush 850 transparent door 6M;MISTRAL41F 850 transparent door 6M

Voltimum+ Loyalty Programme Loyalty points: 17

Price: £ 28.36 Excl. VAT

Specifications

Depth 104
Width 192
Colour White
Height 202
DIN-rail yes
With lock yes
RAL-number 9016
Cover model With notch
Inner depth 70
UV resistant no
Built-in width 141
Built-in height 175
Type of closure Other
Type of covering Door
Signal passing door no
Neutral terminal block no
Earthing terminal block no
Width in number of modular spacings 6
