Schneider Electric

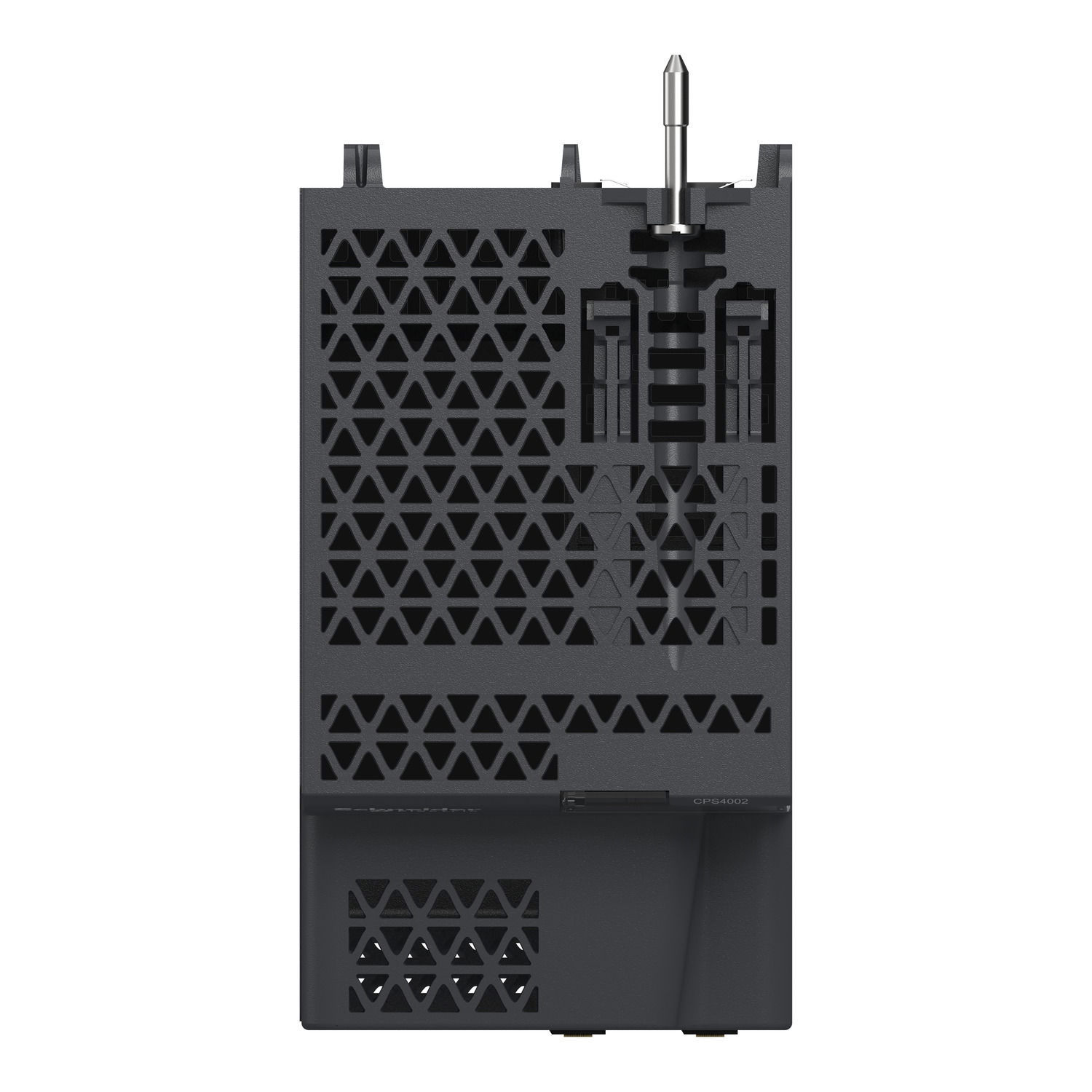

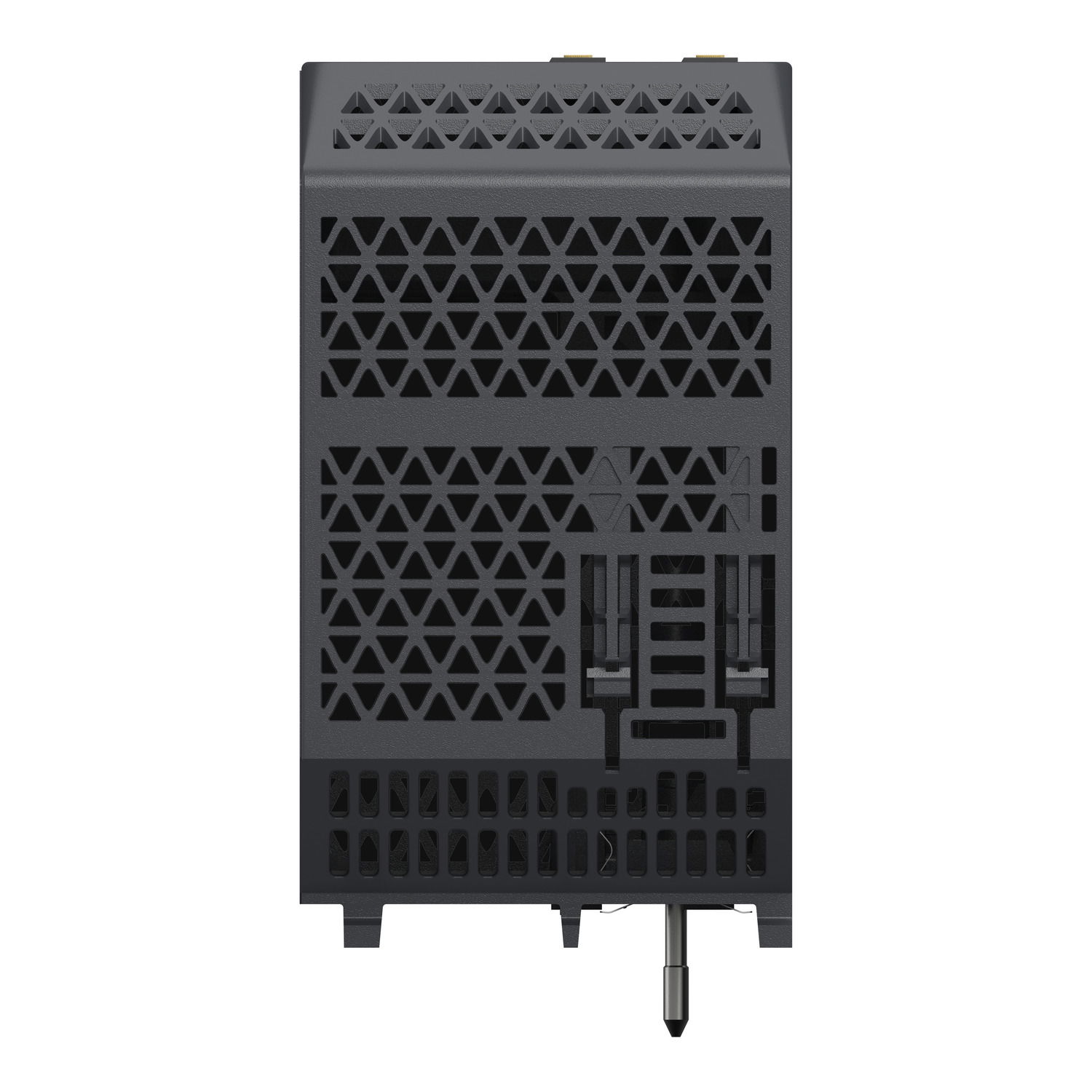

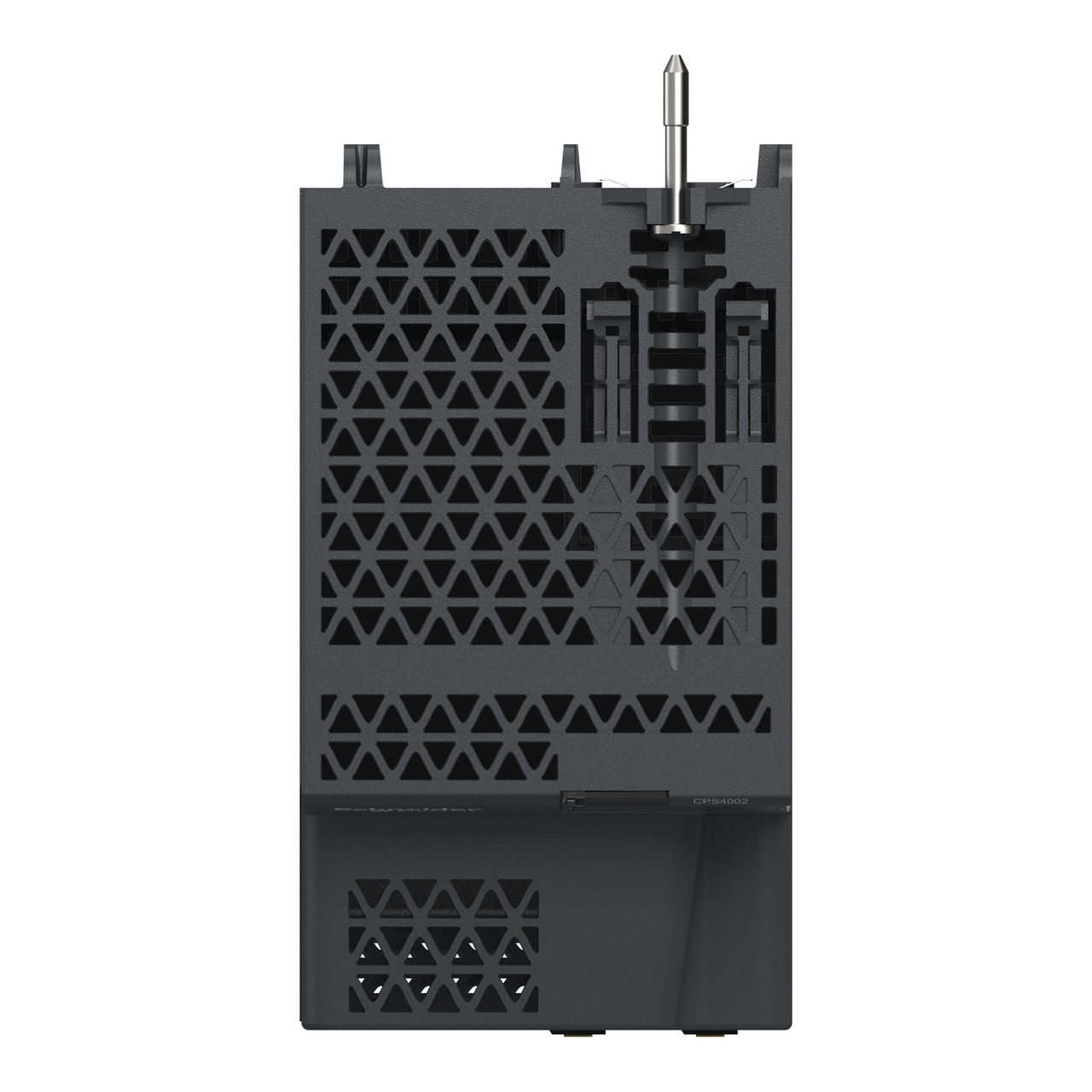

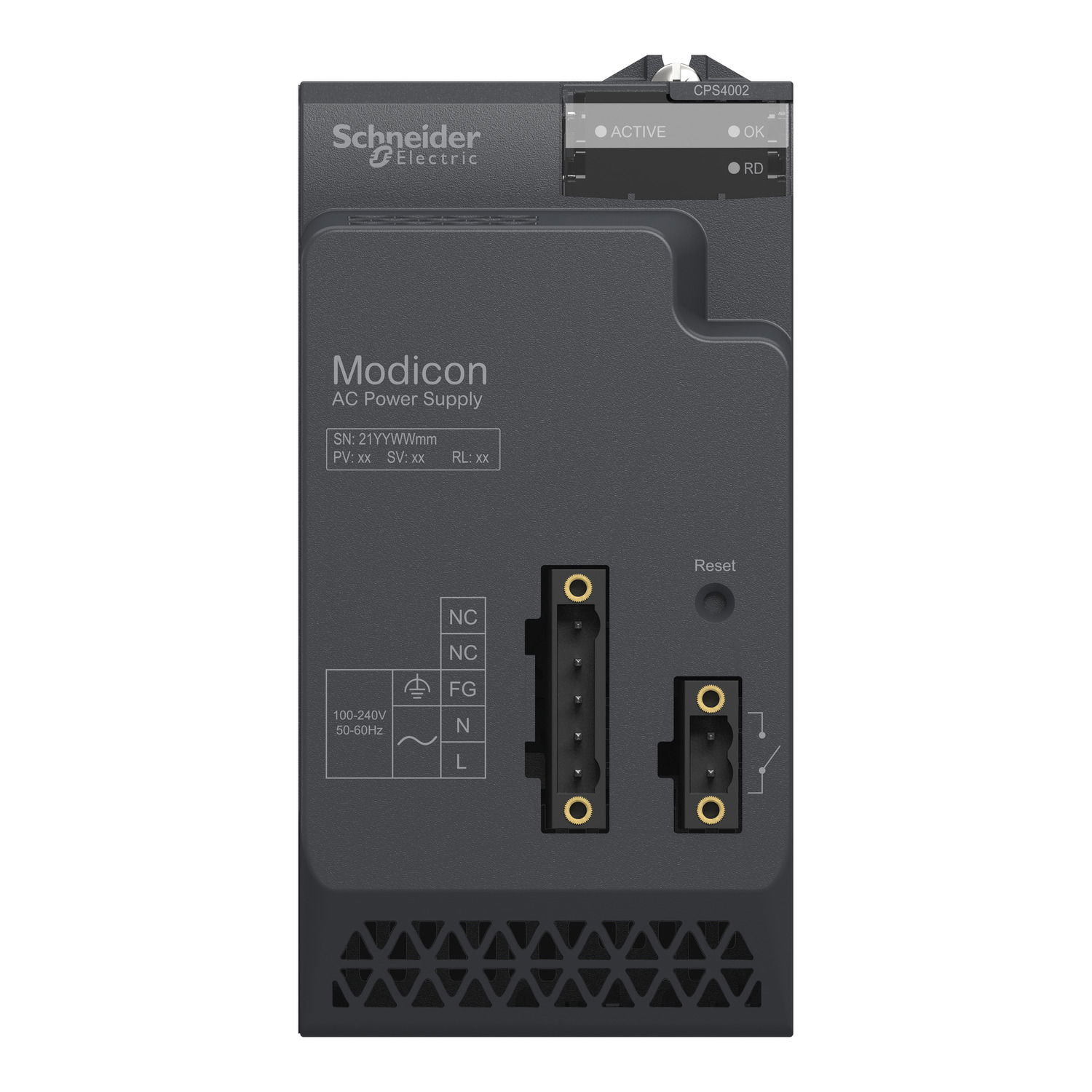

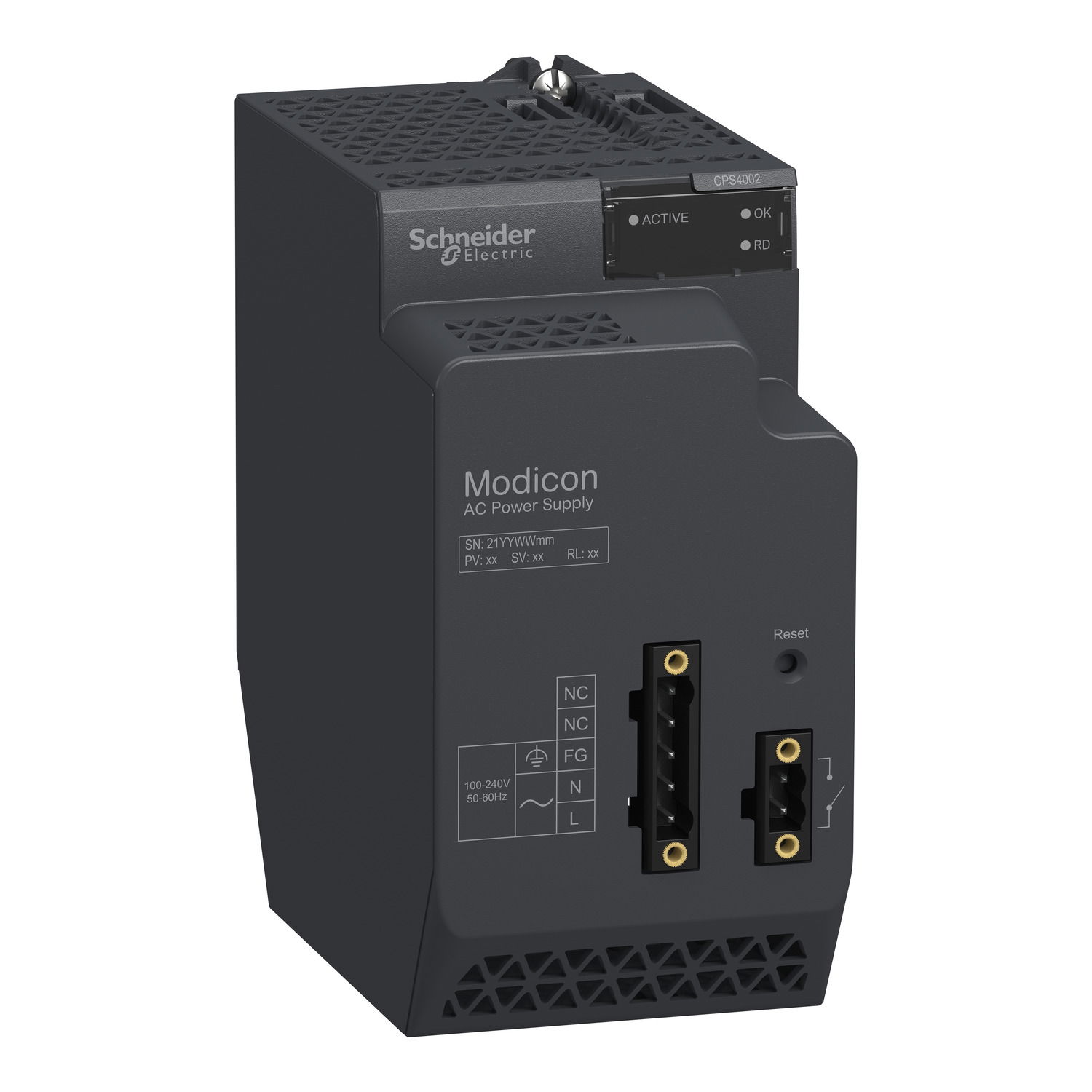

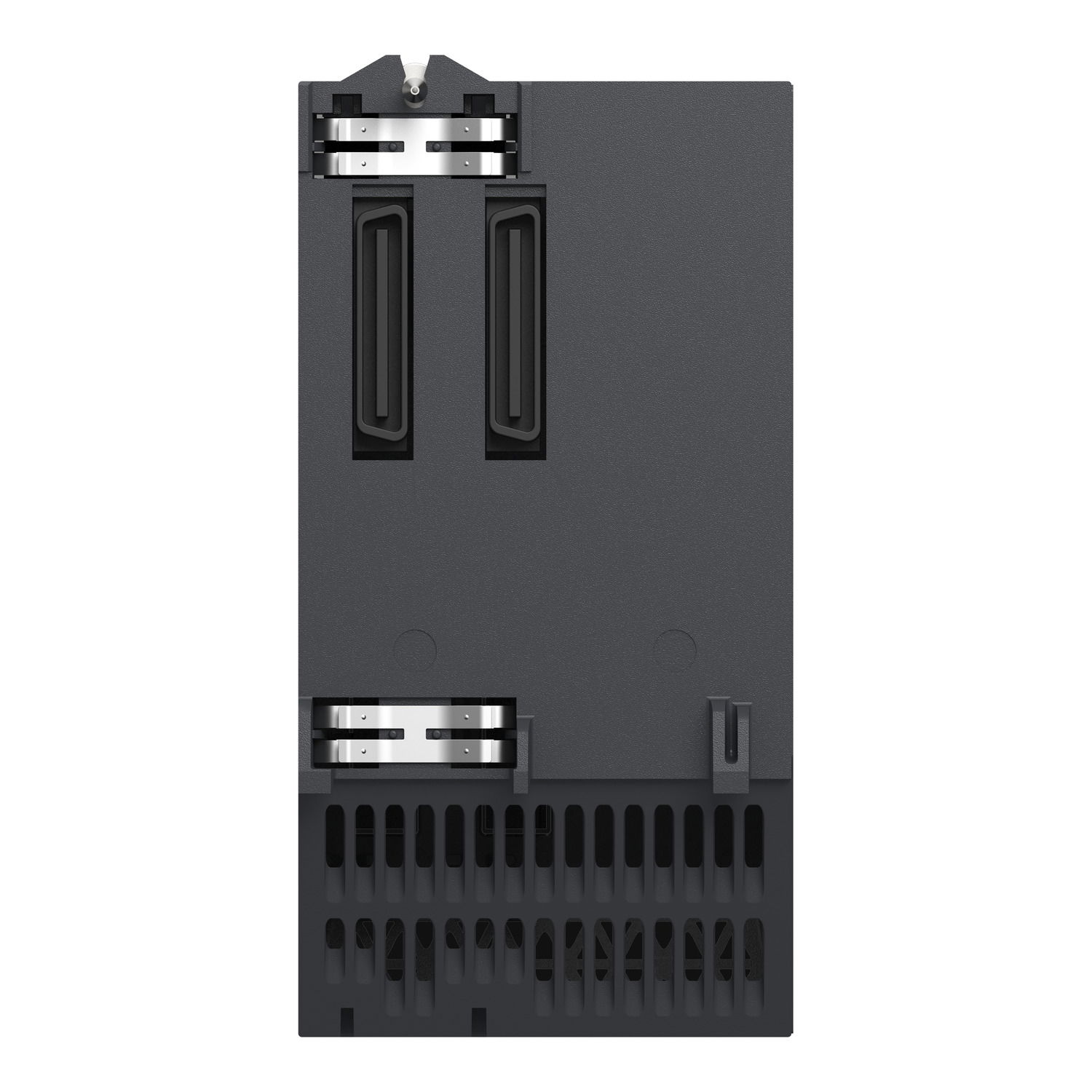

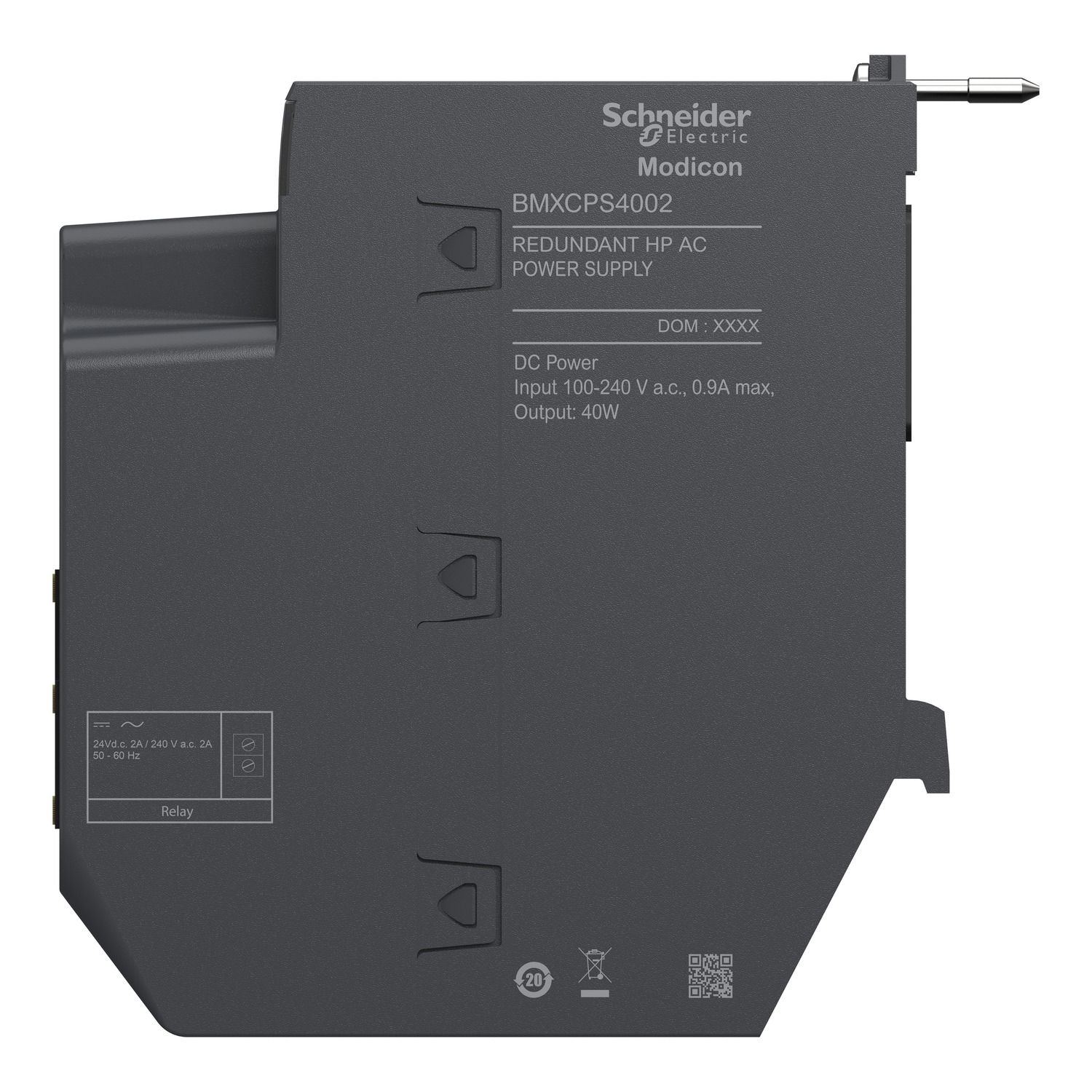

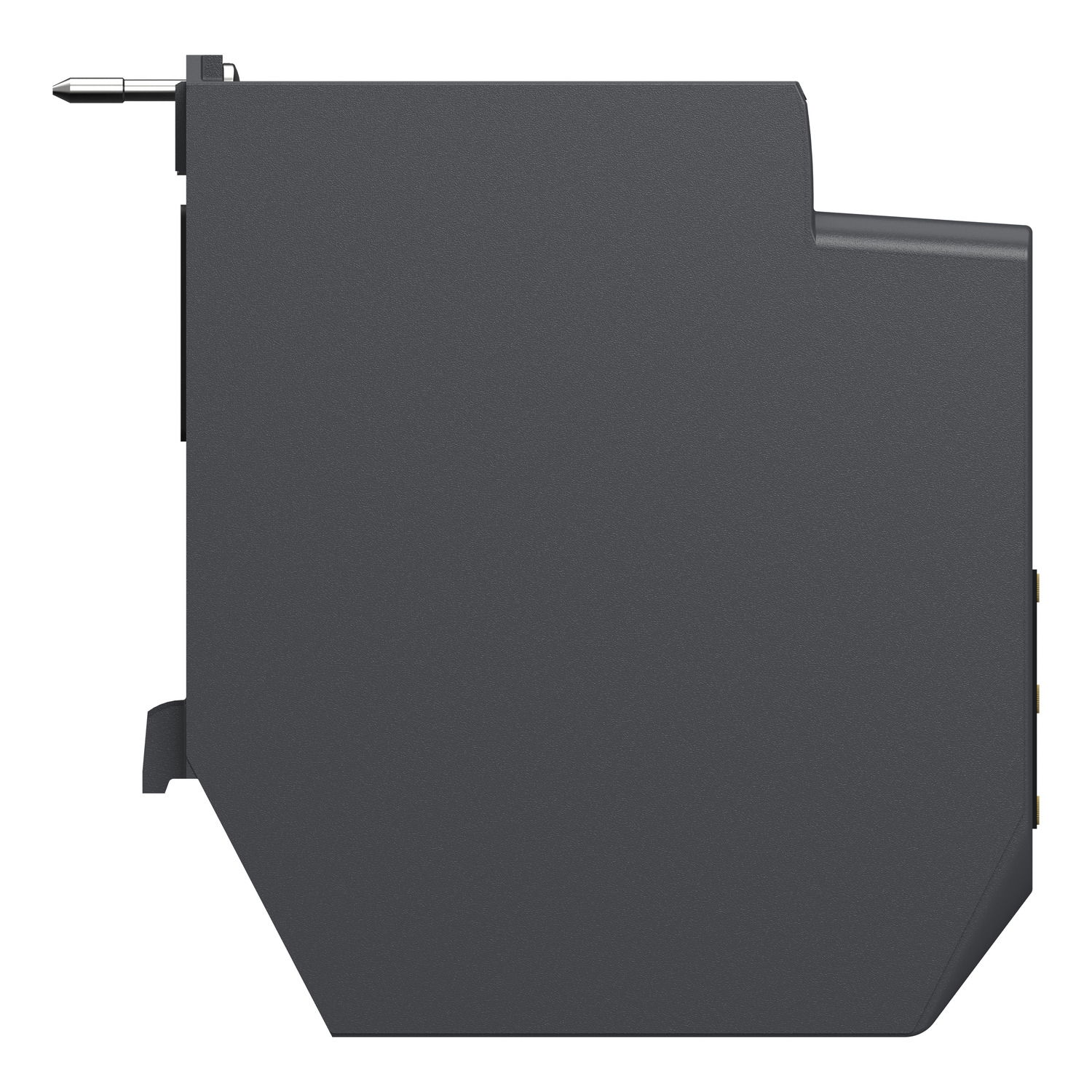

Power supply module X80 - 100..240 V AC

Power supply module X80 - 100..240 V AC by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including Farnell. Trade price £1,136.00 excl. VAT. Voltimum+ members earn 146 points per unit.

This product is part of the Modicon X80 range, a common platform of modules for Modicon M580 and M340 Programmable Automation Controllers (PAC). This power supply module has a primary voltage of 100V to 240V AC. It is a power supply module with a secondary power of 40W at 24V DC, a current at secondary voltage of 5.5A at 3.3V DC and a maximum power dissipation of 8.5W. This product is robust, high quality and based on the latest innovative technology. It is furnished with 2-pin connector for alarm relay, 5-pin connector for line supply, protective earth for electrical connection. Advanced diagnostics available via networks are temperature sensing, redundancy test, uptime duration, redundancy information and remaining lifetime. It is an IP20 rated product. It weighs 0.51kg. It is suitable for medium to large process applications. This product is certified by CE, RCM, Merchant Navy, CSA, EAC, UL. It meets EN 61131-2, EN 61000-6-4, EN 61000-6-2 and EN 61010-2-201 standards. This product is compatible with all backplane. Modicon X80 consists in a compatible modules common platform that reduce maintenance and training costs with same spare parts in stock, and unique training for different Programmable Automation Controllers (PAC).

Product identifiers

SKU: BMXCPS4002
EAN: 3606480927560
GTIN: 3606480927560
MPN: BMXCPS4002

Voltimum+ Loyalty Programme Loyalty points: 146

Price: £ 1,136.00 Excl. VAT

Categories

Transformers & Power Supplies Power Supplies

ETIM group

Programmable logic controllers PLC

Specifications

Depth 150 mm
Width 68 mm
Height 100 mm
Redundancy yes
Power output 40 W
Input voltage DC
Output voltage DC
Max. input current DC -
Input voltage AC 60 Hz
Type of output voltage AC/DC
Output voltage AC 60 Hz
Max. input current AC 60 Hz 1.04 A
Max. output current AC 60 Hz -
Type of voltage (input voltage) AC/DC

Documents

Declaration of Conformity (Sustainability)

BMXCPS4002 REACh Regulation

Open

User guide

Modicon X80 - Racks and Power Supplies, Hardware Reference Manual

Open

Instruction sheet

X80 / M580 / M340, Instruction Sheet

Open

Product data sheet

Open

Catalog

Catalog of Modicon X80 Modules

Open

Declaration of Conformity (Sustainability)

BMXCPS4002 EU RoHS Directive

Open

Declaration of conformity

Modicon M580 M340 X80, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Modicon X80 Power Supply - Product Environmental Profile

Open
