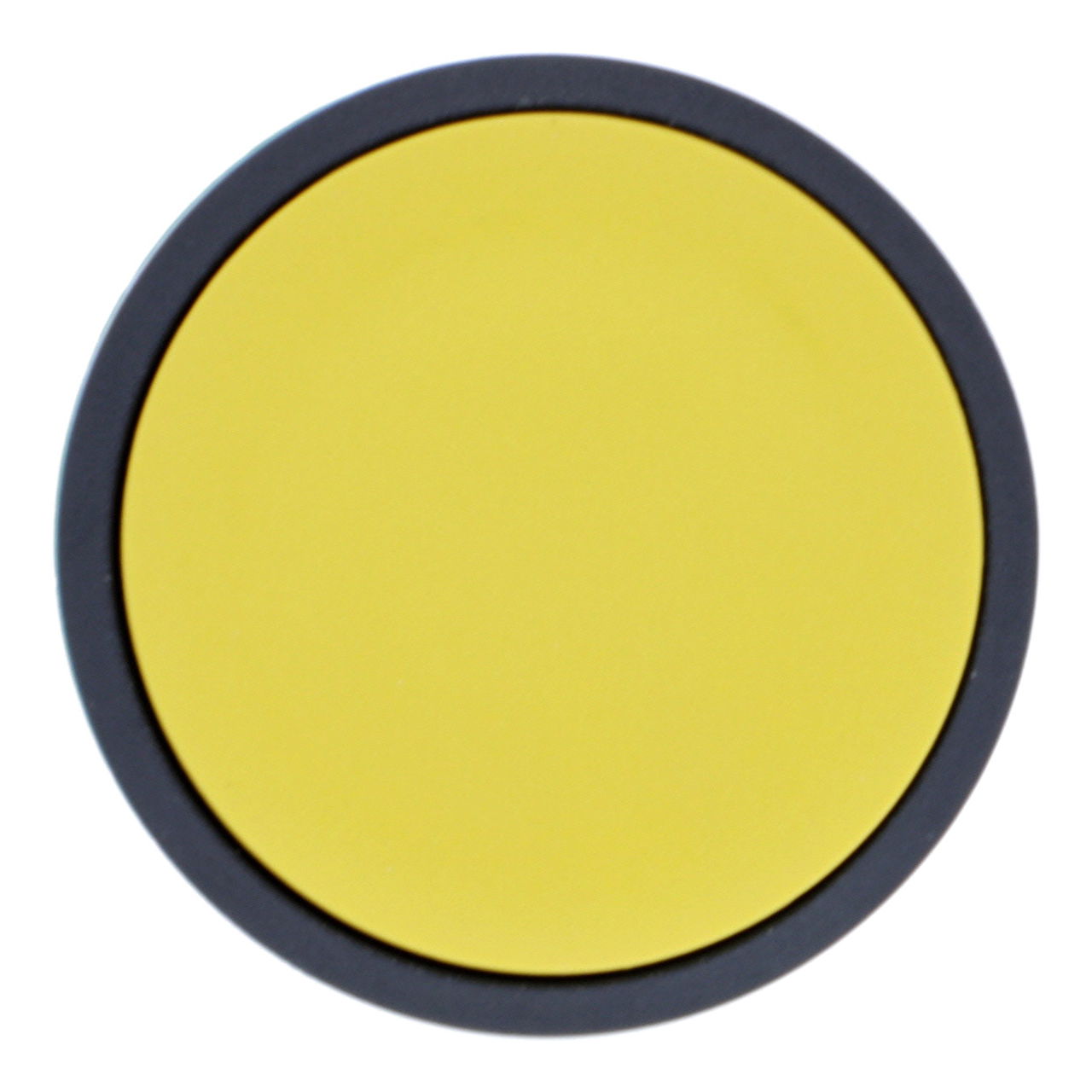

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 4 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 5 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 6 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 7 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 8 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 9 of 11

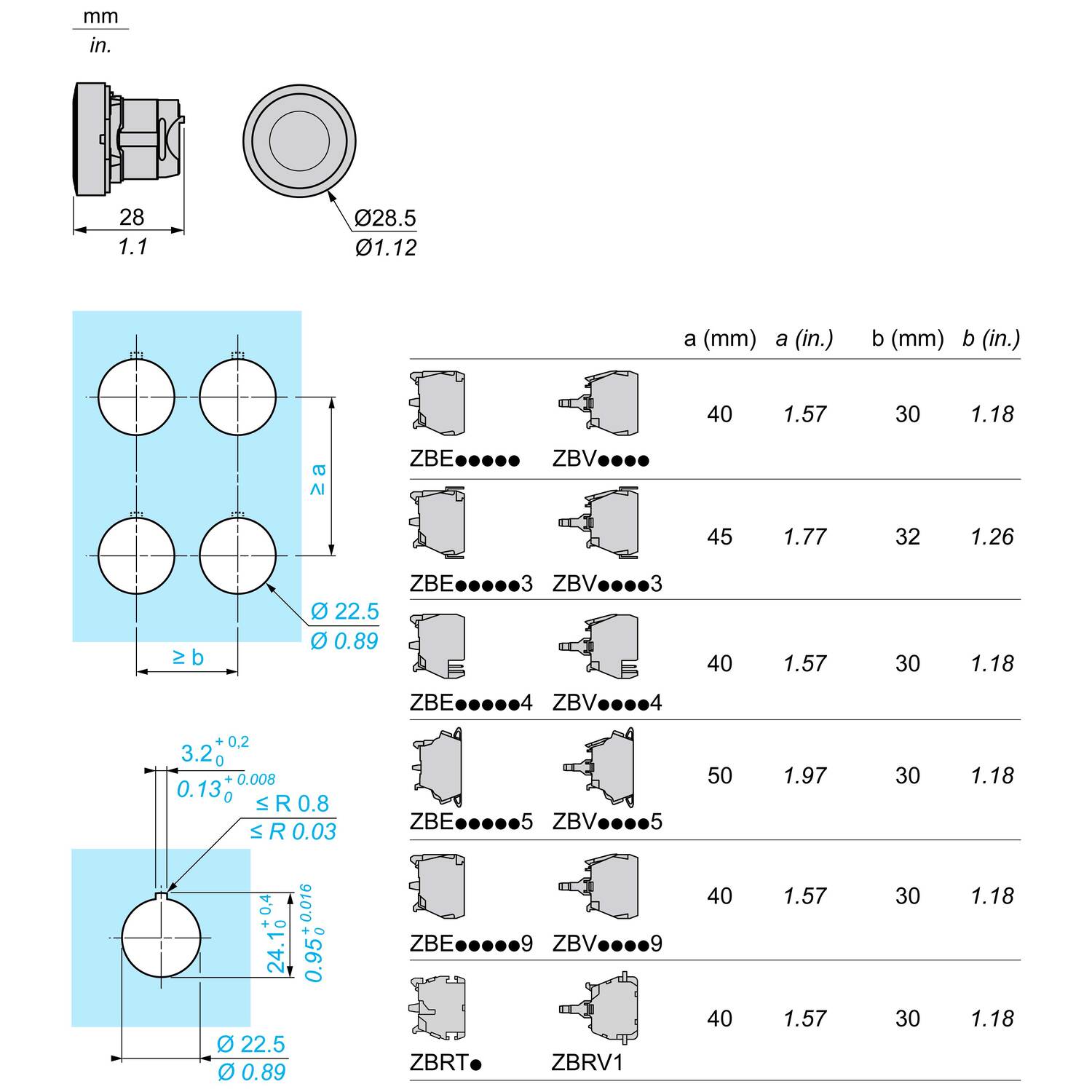

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 10 of 11

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked – Image 11 of 11

1 / 11

Popularity Top 10%

Among the top 10% of products bought or added to a distributor basket on Voltimum UK in the last 12 months, based on distributor sales and basket transfers. Popularity is not a customer review. Voltimum does not collect product ratings. It reflects how often electrical professionals bought this product through participating wholesalers or added it to a distributor basket on Voltimum UK, compared with other products in the catalogue. Updated nightly.

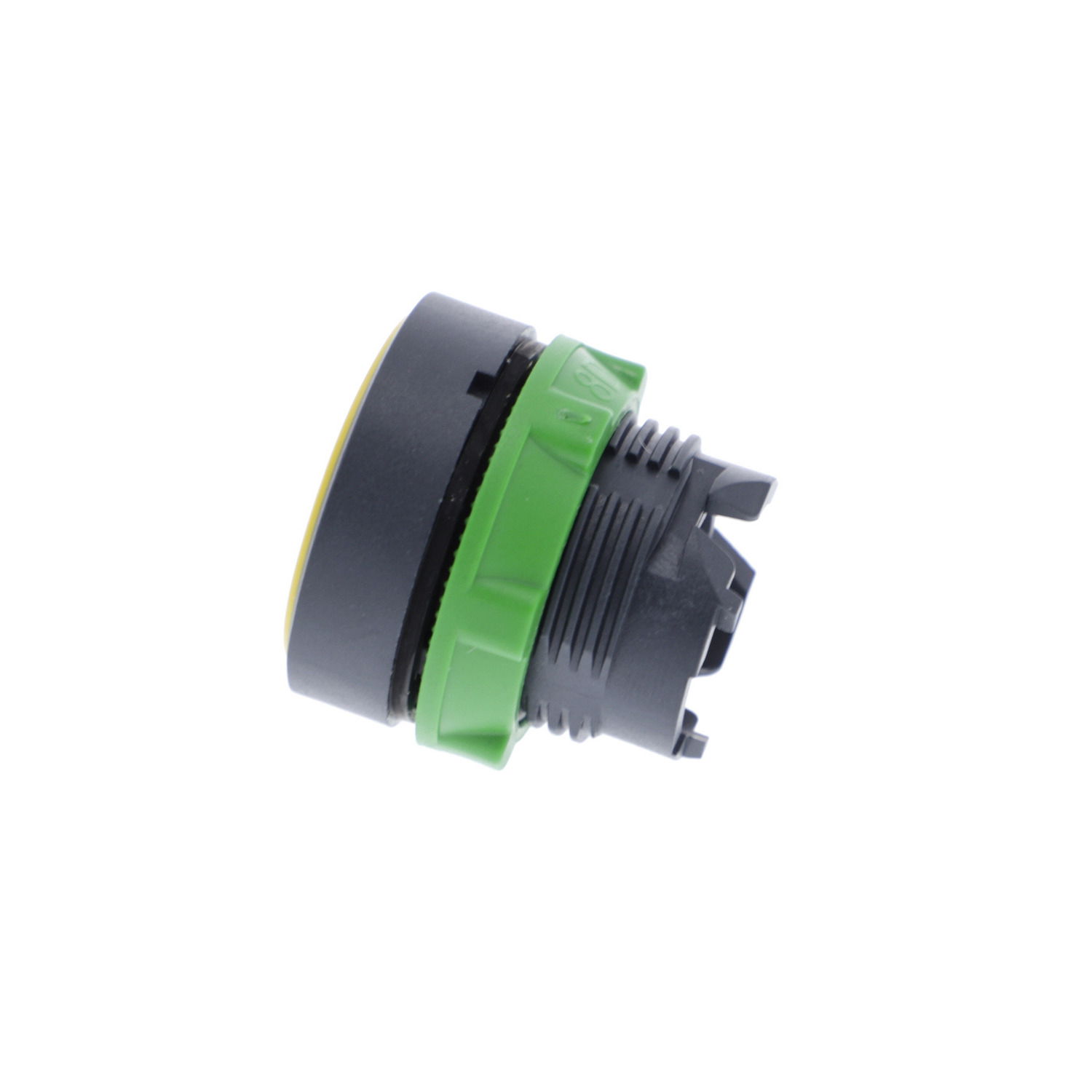

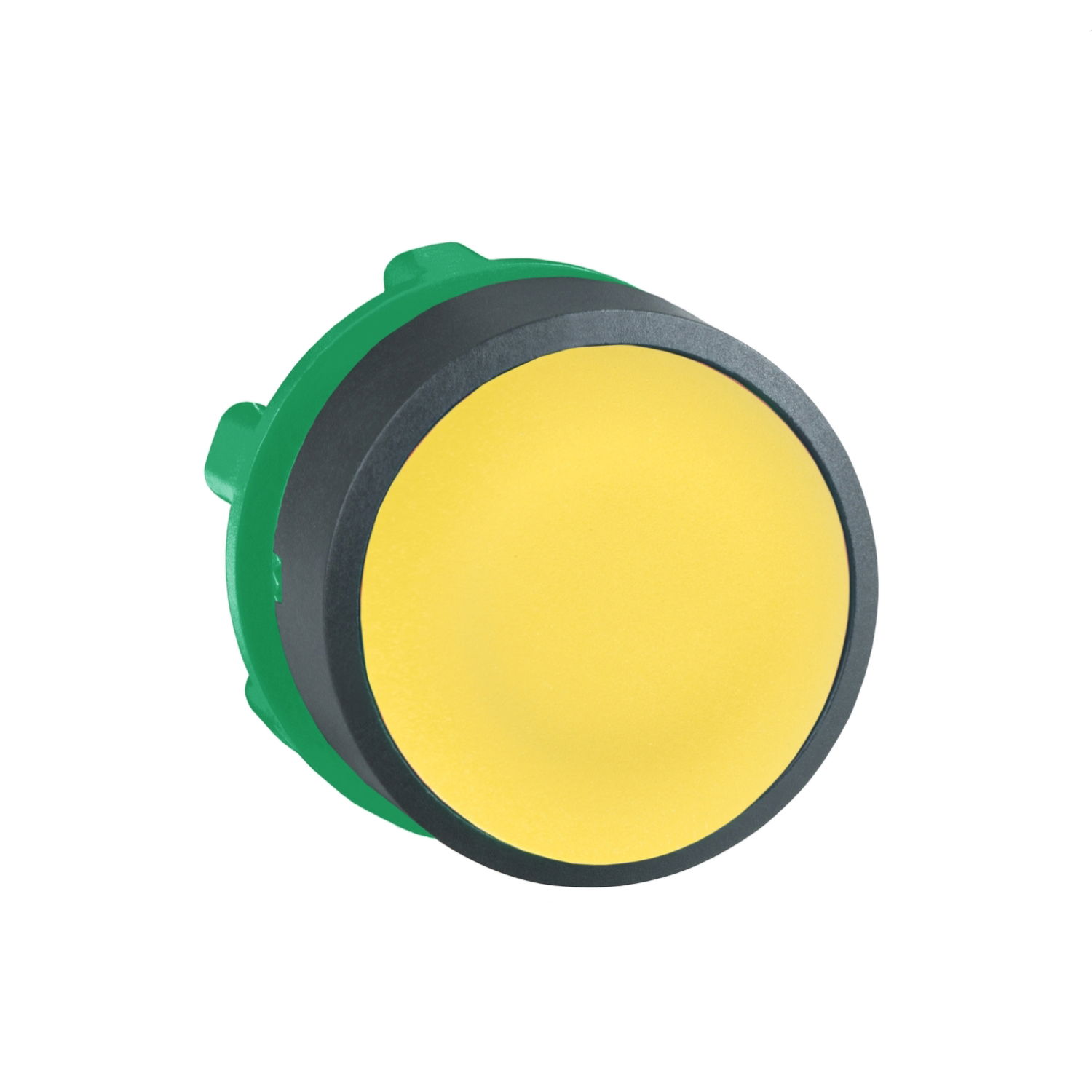

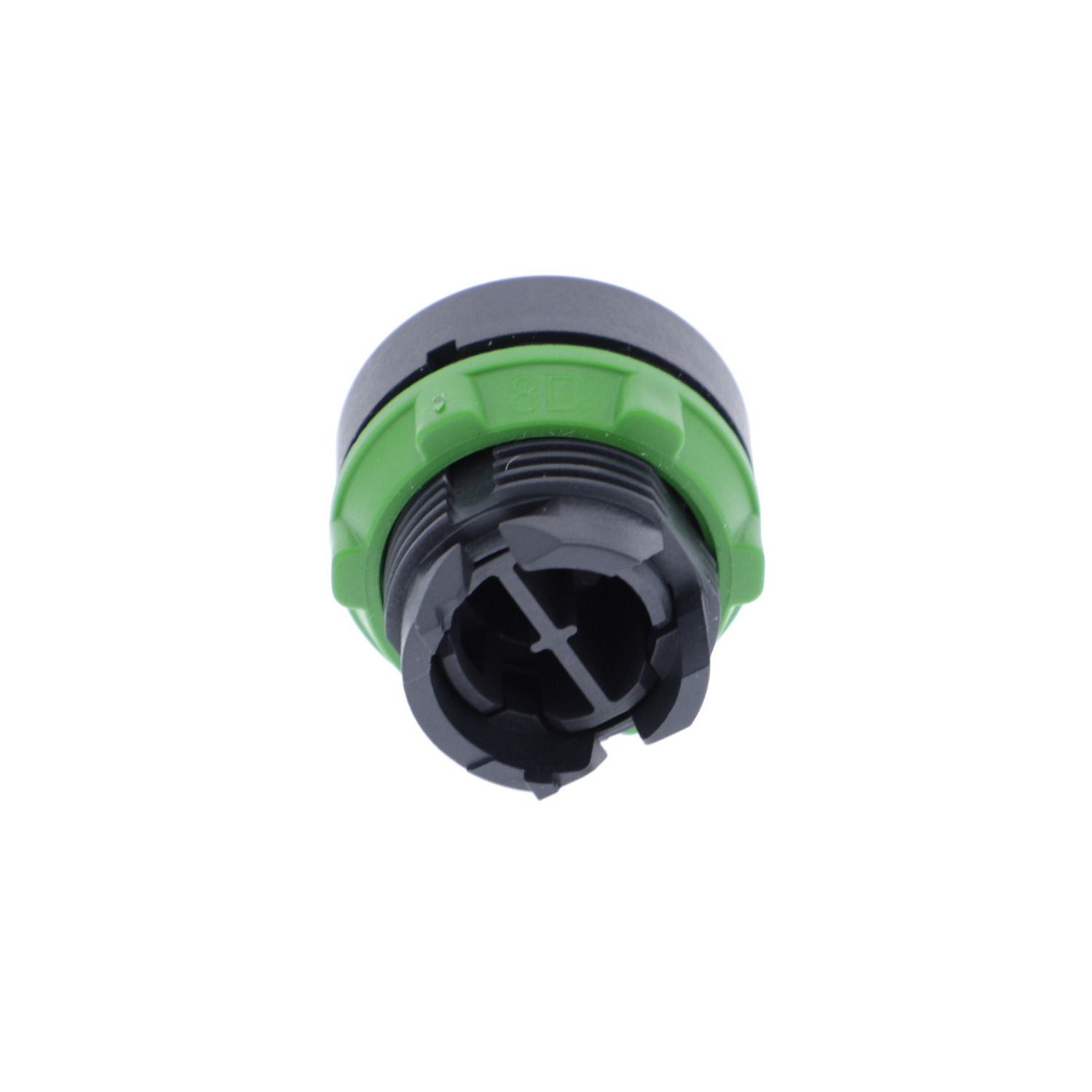

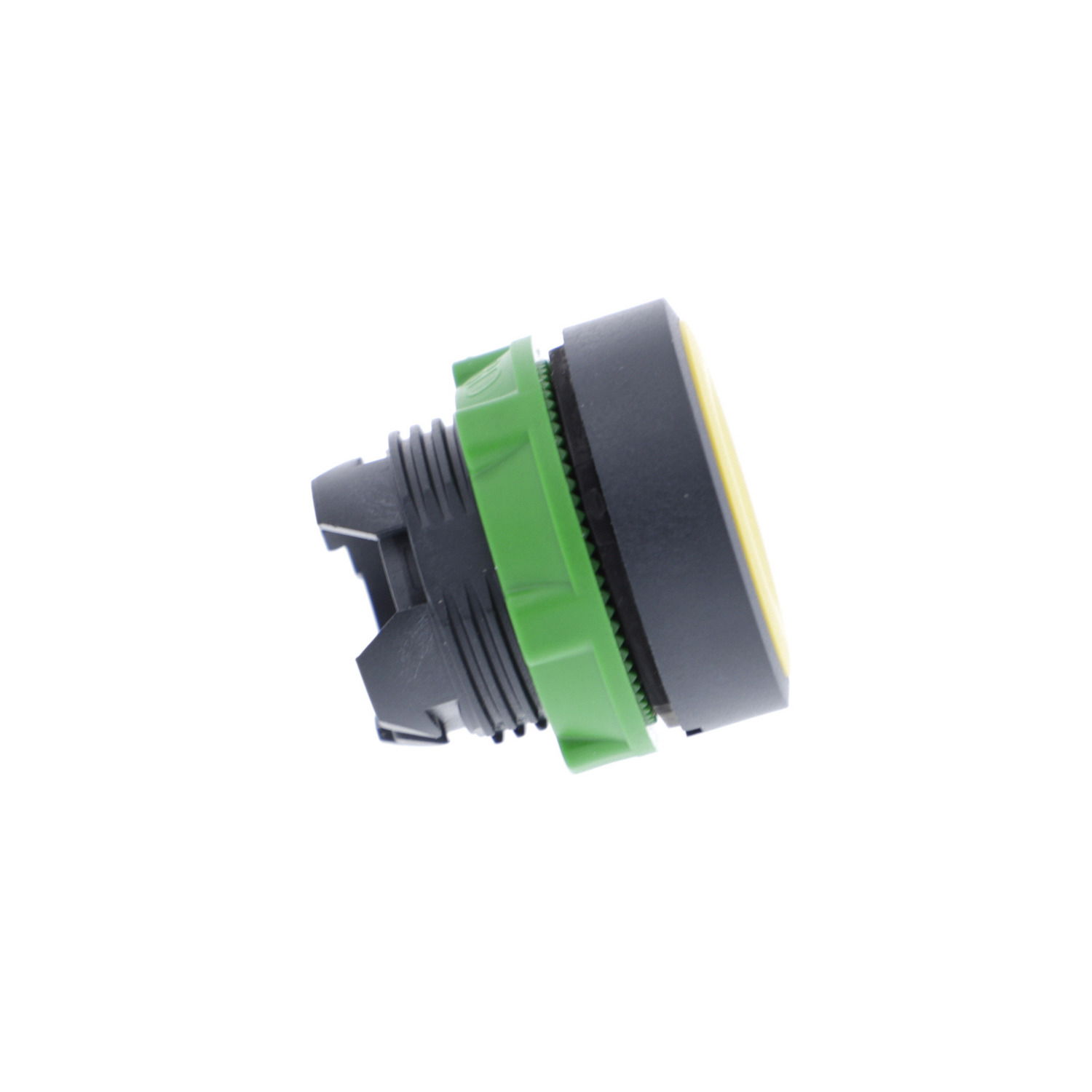

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked

Name: Push button head, plastic, flush, yellow, Ø22, spring return, unmarked
Brand: Schneider Electric
SKU: ZB5AA5
Availability: InStock

Push button head, plastic, flush, yellow, Ø22, spring return, unmarked by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £3.82 to £6.13 excl. VAT. Voltimum+ members earn 1 point per unit.

This Harmony XB5, flush yellow button head operates with a spring return mechanism. This button head provides an ergonomic interface for controlling your machines. It is easily installed and replaced on compatible complete push-button units and contact blocks via snap-fit assembly. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP66 / IP67 / IP69 / IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Product identifiers

SKU: ZB5AA5

EAN: 3389110904734

GTIN: 3389110904734

MPN: ZB5AA5

Loyalty points: 1

Price range: £ 3.82 - £ 6.13 Excl. VAT

Specifications

Labelled	no
Colour button	Yellow
Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
Type of button	Flat
With front ring	yes
Colour front ring	Black
Material front ring	Plastic
Suitable for lighting	no
With protective cover	no
Construction type lens	Round
Number of command positions	1
Switching function latching	no
Degree of protection (IP), front side	IP66
Degree of protection (NEMA), front side	13
