AP9V Junction box White IP65

Link copied
SKU
EAN
GTIN
MPN

AP9V Junction box White IP65 by ABB is listed by 1 electrical wholesaler on Voltimum UK, including City Electrical Factors, and currently in stock. Trade price £6.00 excl. VAT. Voltimum+ members earn 6 points per unit.

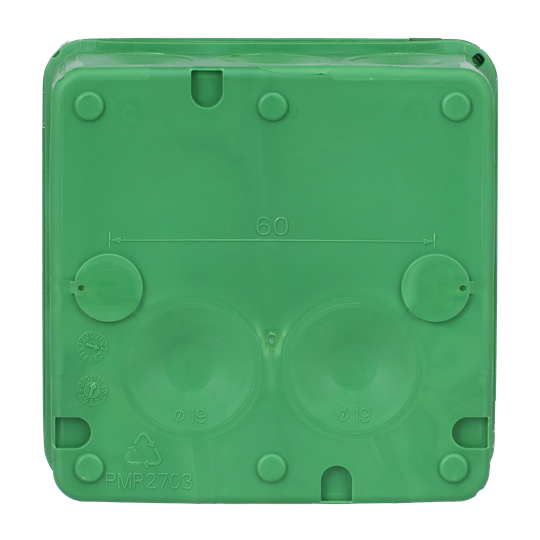

The square junction box AP9V (2,5 mm², 500 V) is equipped with 12 membrane cable entries (Ø 17 mm) in the sides, and two in the bottom. Cables are easy to connect by simply inserting the stripped ends through the inlets. The box locks by snapping and can be opened by inserting a screwdriver (for example) into the opening slots - no screws are needed. The box can be furnished with strain-reliefs AS9, AS9.1 and AS9.3. Fits up to Ø 17 mm cable. VDE-approved. Mounting temperature -25...+60 °C. Made of halogen free material (IEC/61249-2-21).

Voltimum+ Loyalty Programme Loyalty points: 6

Price: £ 6.00 Excl. VAT

Specifications

Depth 86
Model Junction box
Shape Square
Width 86
Colour White
Length 39.000
Castable no
Diameter -
Sealable yes
Cover model Blind cover
Weatherproof yes
With screening no
Mounting method Universal
For Ex-zone dust -
Circuit integrity -
Transparent cover no
Inlet from the rear yes
Mounting under water no
Explosion-tested version no
Degree of protection (IP) IP65
Rated insulation voltage Ui 500
Type of housing feed-through -

Documents

Deeplink product page

Open

Deeplink REACH

9AKK106713A4633_en_PDF_D_REACH _ SCIP Product Declaration.pdf

Open

Dimensioned drawing

9AKK107992A5295_enfisv_PDF_B_Dimension Diagram (.PDF) _XX_ AP9.pdf

Open

Instructions for use

9AKK107045A7551_en_C_Operating Instruction (.PDF) _EN_ AP9 installation instruction PEM1126 411009.pdf

Open

Product data sheet

Open

Declaration RoHS

9AKK106713A4634_en_PDF_E_RoHS Product Declaration Wiring Accessories.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE_ABB_Surface-mounted junction boxes_ENG_15.11.2024_.pdf

Open

Declaration EPD (Environmental Product Declaration)

9AKK108468A3481_en_PDF_B_EPD for Recycled Junction Boxes (.PDF) _XX_.pdf

Open
