Black selector switch head Ø22 3-position spring return

Link copied

SKU
EAN
GTIN
MPN

Black selector switch head Ø22 3-position spring return by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £7.42 to £11.91 excl. VAT. Voltimum+ members earn 2 points per unit.

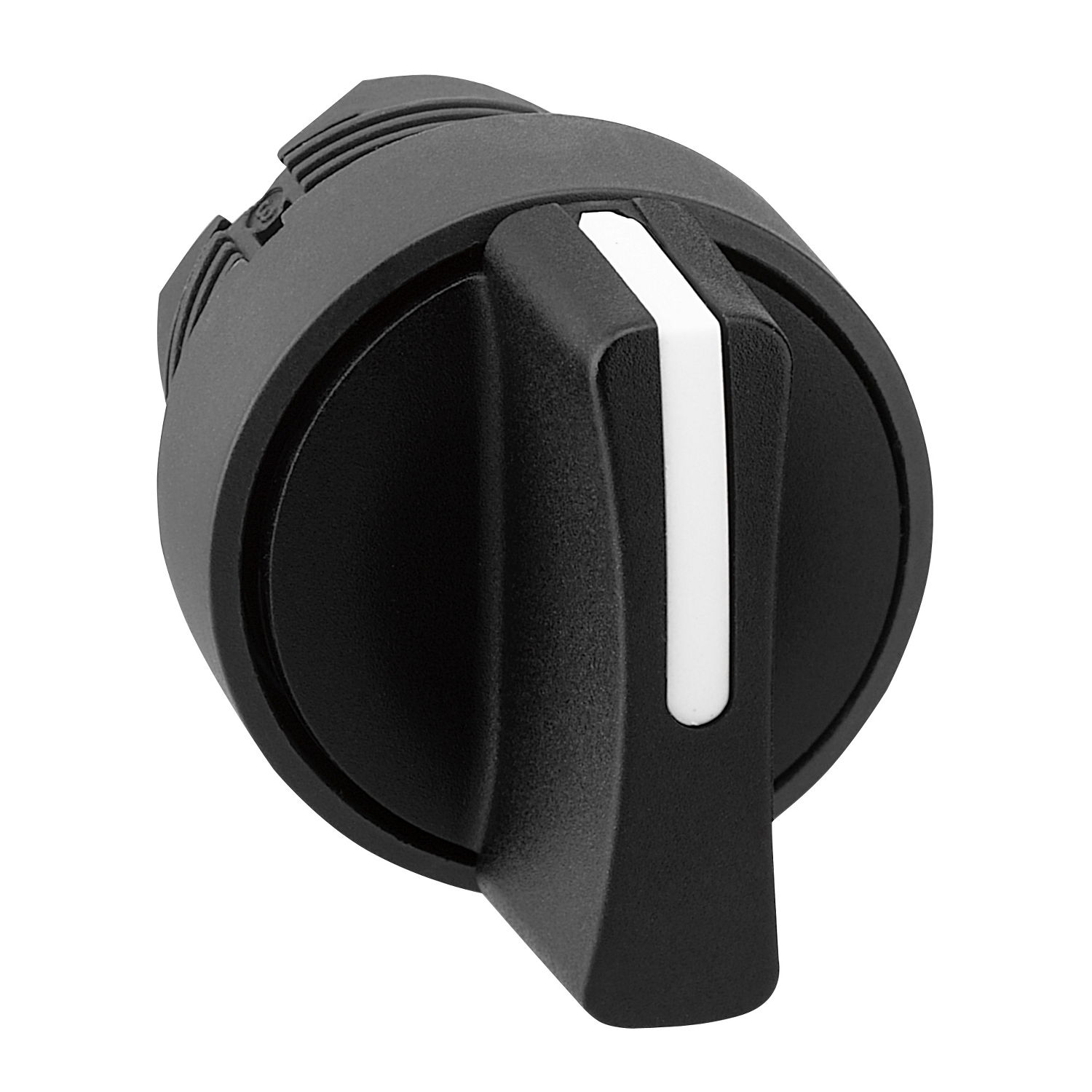

This Harmony XB5, black selector switch head with standard handle has 3 positions, operates with spring return to center mechanism. This switch head with standard handle provides an ergonomic interface for controlling your machines. It can easily be installed on compatible selector switch units and provide an effective manner to set your machine in various operating modes. It is impact resistant, dust resistant, water resistant and vibration resistant thanks to its IP69K. It has a plastic bezel, this makes it ideal for applications requiring good resistance to chemical agents and/or double electrical insulation. It is designed to fit in a standard 22mm cutout, ensuring compatibility when installing in pre-existing machinery. Its wide range of operating temperatures from -40°C to 70°C allows versatility in usage of product.

Loyalty points: 2

Price range: £ 7.42 - £ 11.91 Excl. VAT

ETIM group

Low-voltage industrial components

Specifications

Hole diameter	22.5 mm
Spring-return	yes
Width opening	-
Height opening	-
With front ring	yes
Colour front ring	Black
Material front ring	Plastic
Suitable for lighting	no
Colour control element	Black
Construction type lens	Round
Type of control element	Short thumb-grip
Colour indicator light cap	-
Number of switch positions	3
Degree of protection (NEMA)	13
Switching function latching	no
Degree of protection (IP), front side	IP67/IP69K

Documents

Declaration of Conformity (Sustainability)

ZB5AD5 REACh Regulation
