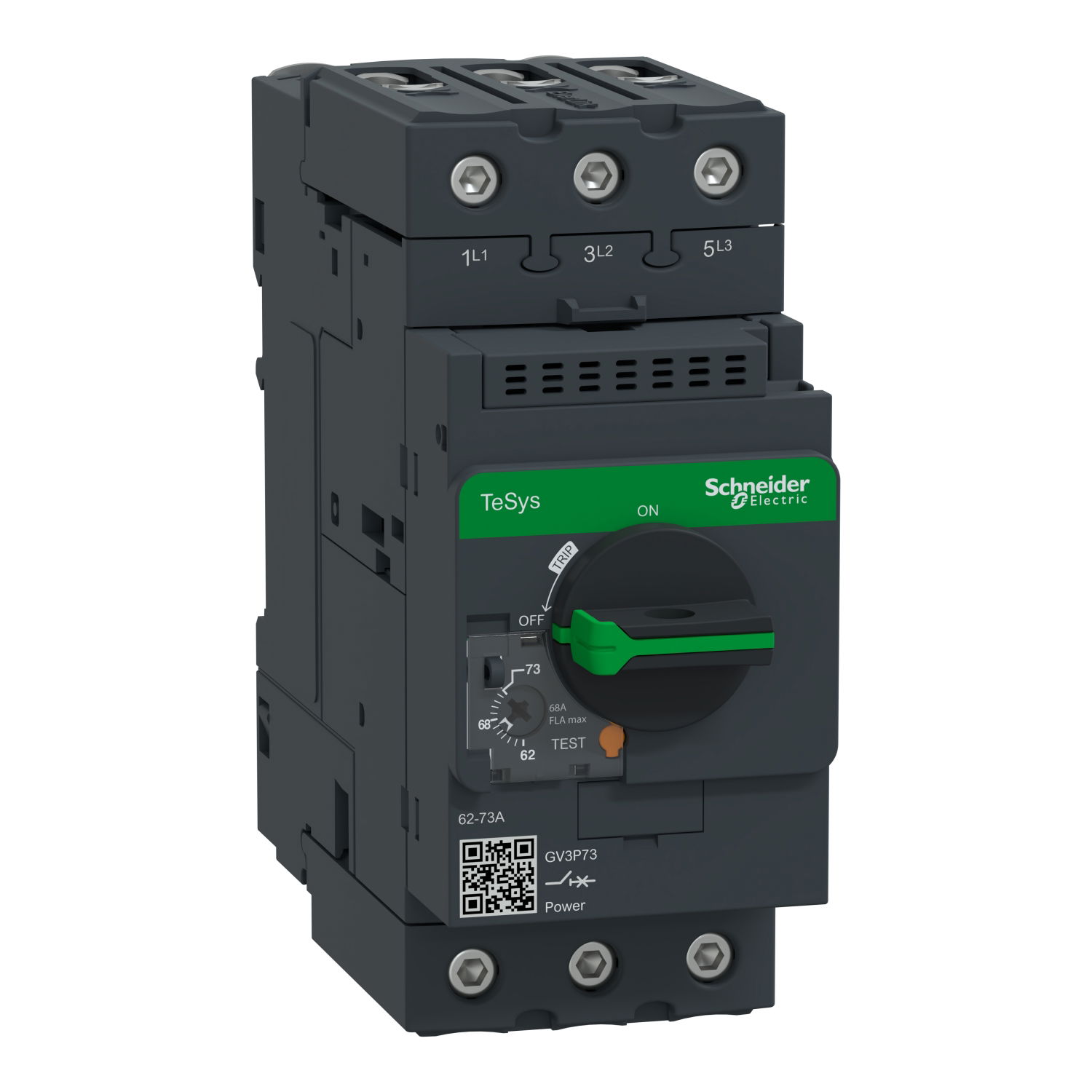

TeSys GV3P thermal-magn motor circuit breaker 62-73A EverLink

Name: TeSys GV3P thermal-magn motor circuit breaker 62-73A EverLink
Brand: Schneider Electric
SKU: GV3P73
Availability: InStock

TeSys GV motor circuit breaker, 3 poles (3P), 73A/690V, for 3-phase motor applications 37kW@400V. It provides a thermal-magnetic protection with a thermal setting range 62-73A, magnetic tripping at 15xIn, high breaking capacity Icu 50kA@400V. Connection by Everlink BTR screw terminals. Start-stop control by rotary knob guaranteed for 20 000 cycles AC-3. Multi standards certified (IEC, UL, CSA, CCC, EAC, Marine, ATEX).

Product identifiers

SKU: GV3P73

EAN: 3606481304513

GTIN: 3606481304513

MPN: GV3P73

Loyalty points: 41

Price range: £ 314.62 - £ 329.45 Excl. VAT

ETIM Group

Low-voltage industrial components

Videos

Promotional video

Specifications

Depth	136 mm
Width	55 mm
Height	132 mm
Power loss	8 W
Number of poles	3
Device construction	Complete device in housing
Switch off technique	Thermomagnetic
Phase failure sensitive	yes
Rated operating voltage
Type of control element	Turn button
Degree of protection (IP)	IP20
Rated permanent current Iu	73 A
Overload release current setting
With integrated auxiliary switch	no
With thermal overload protection	yes
Rated operation power at AC-3, 230 V	18.5 kW
Rated operation power at AC-3, 400 V	37 kW
With integrated under voltage release	no
Type of electrical connection of main circuit	Screw connection
Adjustment range undelayed short-circuit release
Rated short-circuit breaking capacity Icu at 400 V, AC	50 kA
