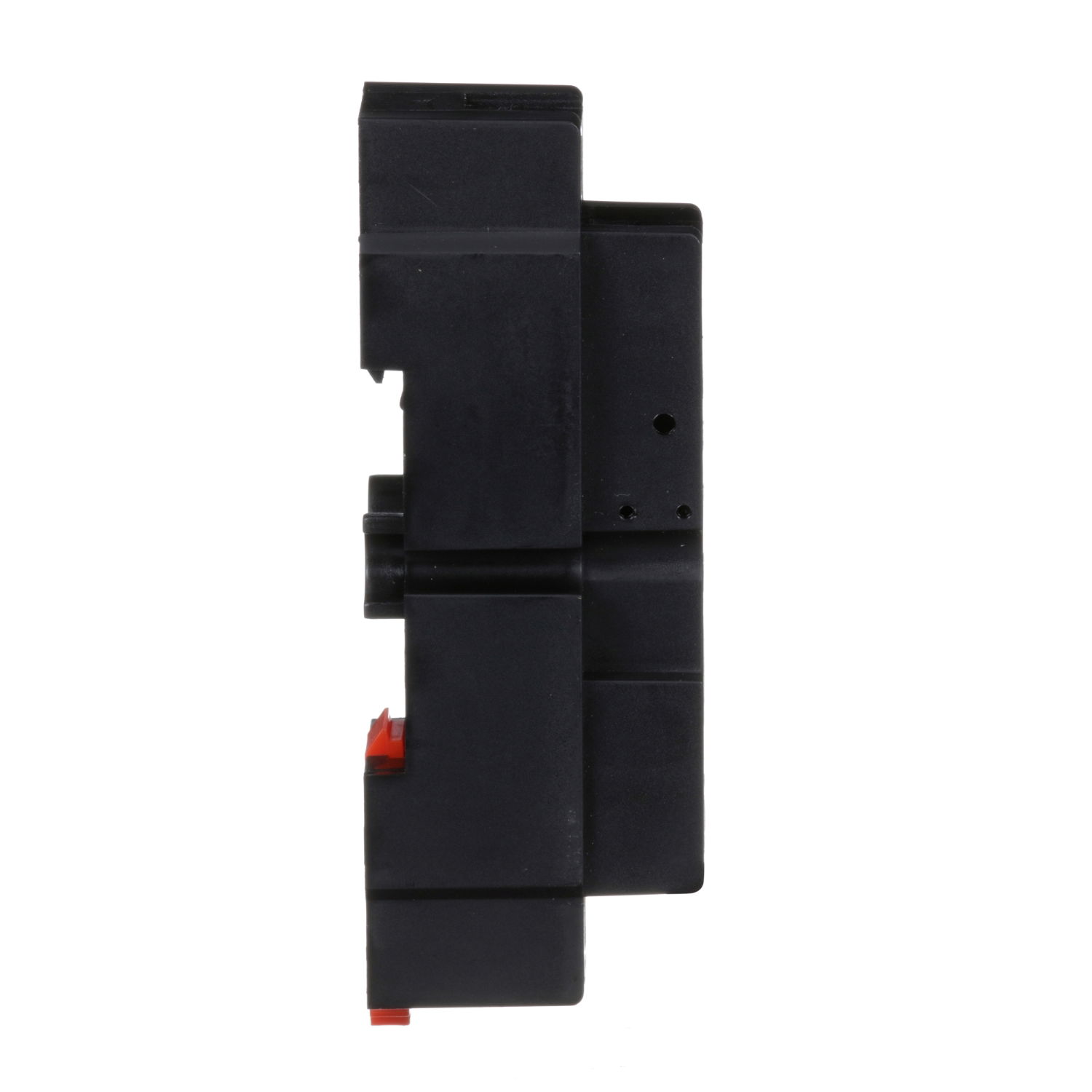

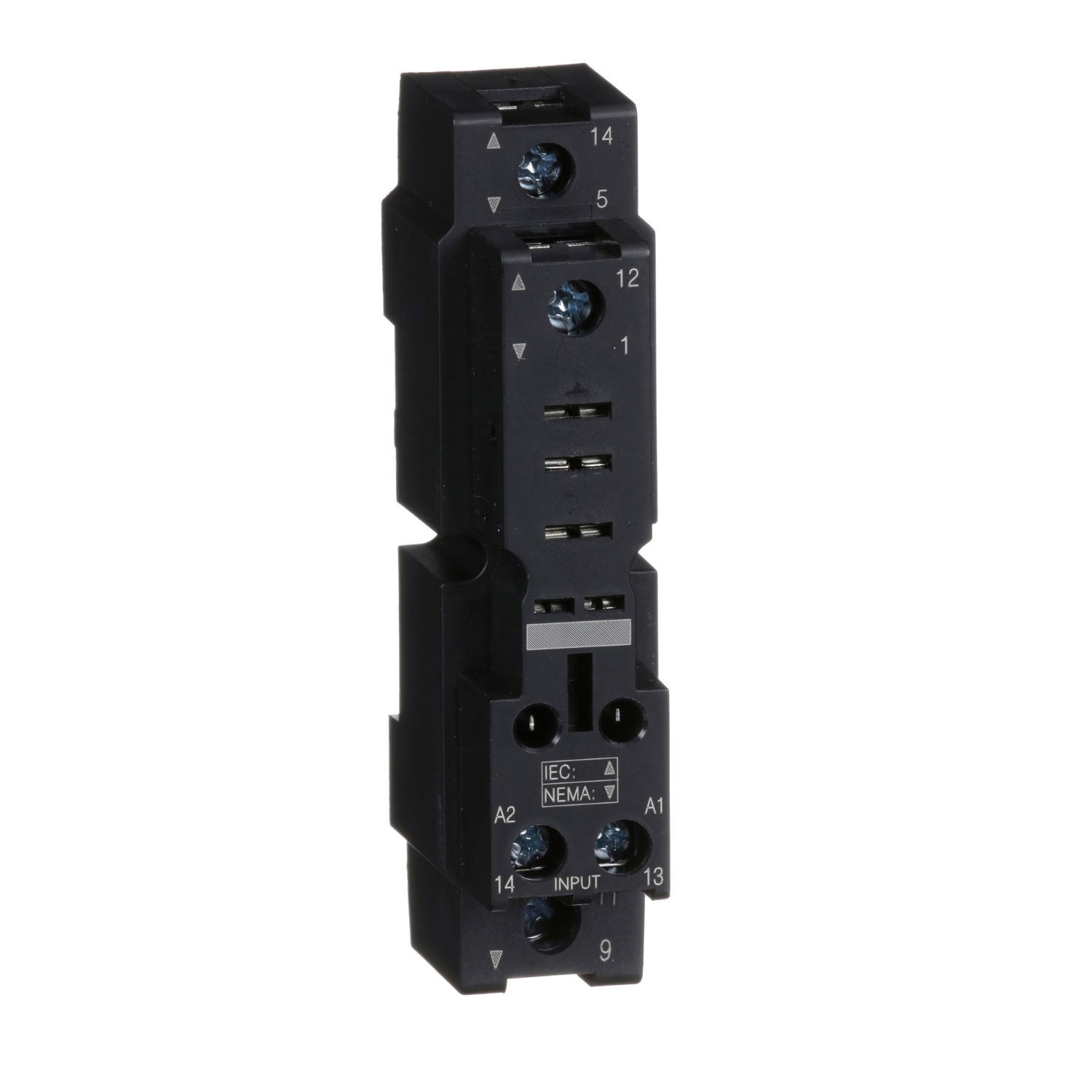

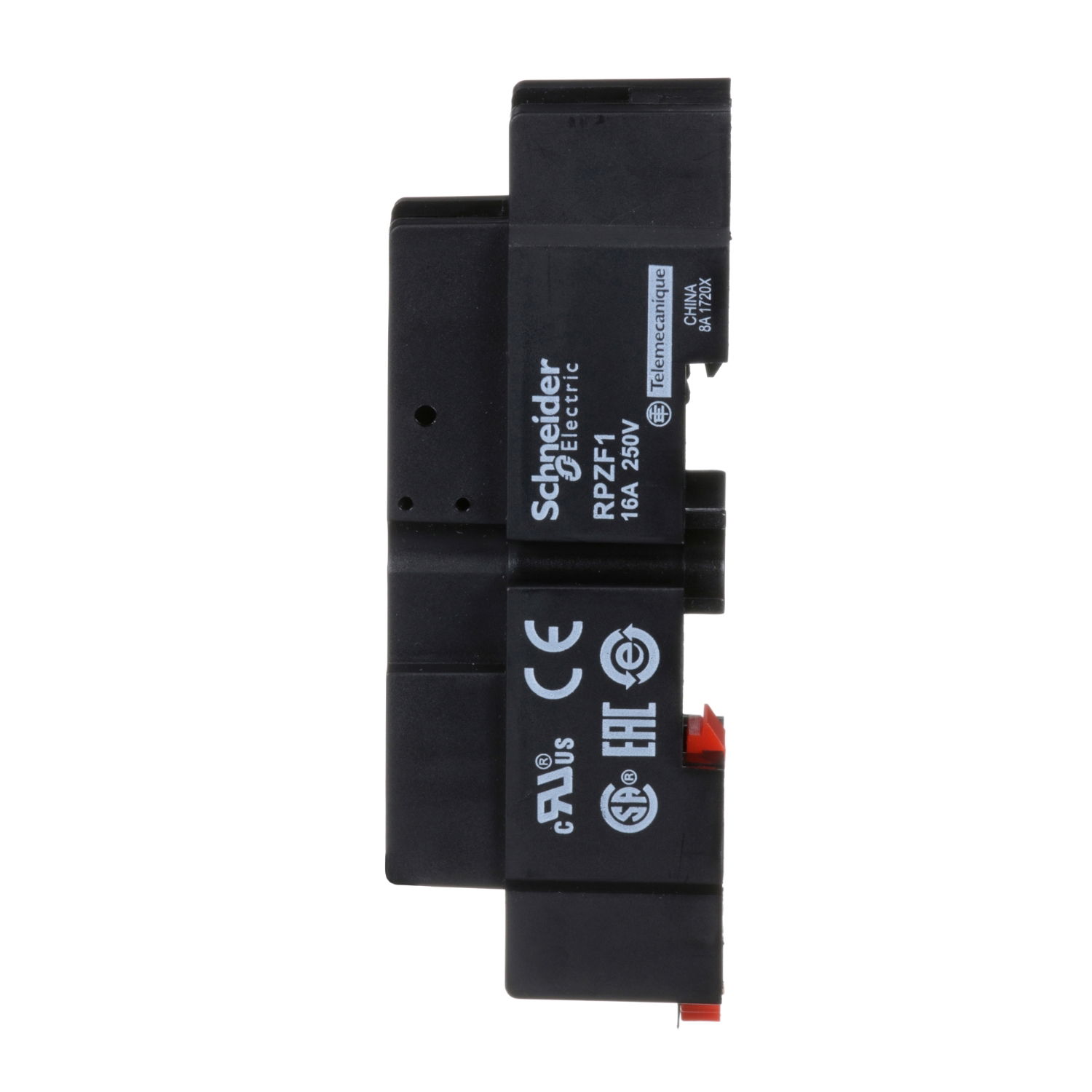

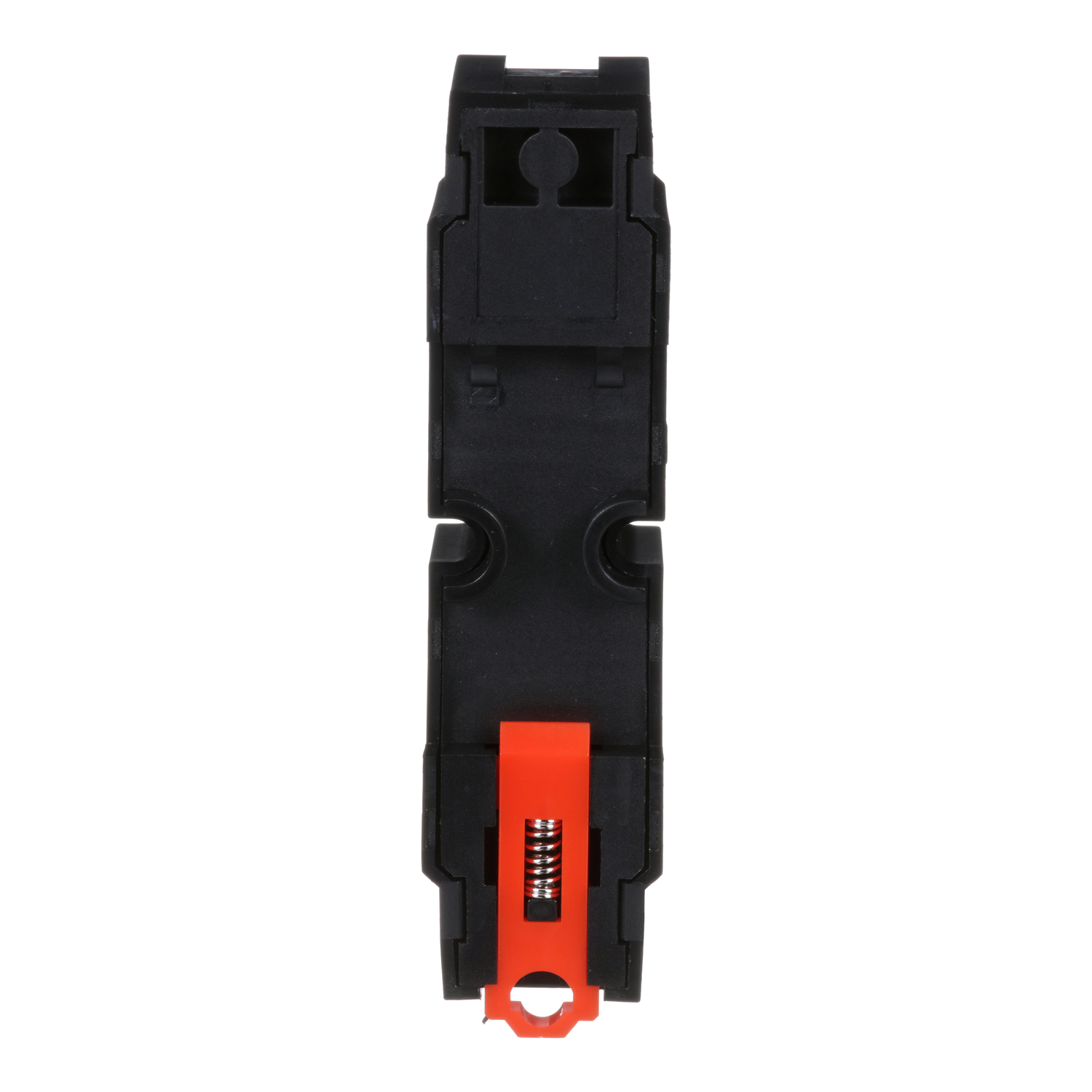

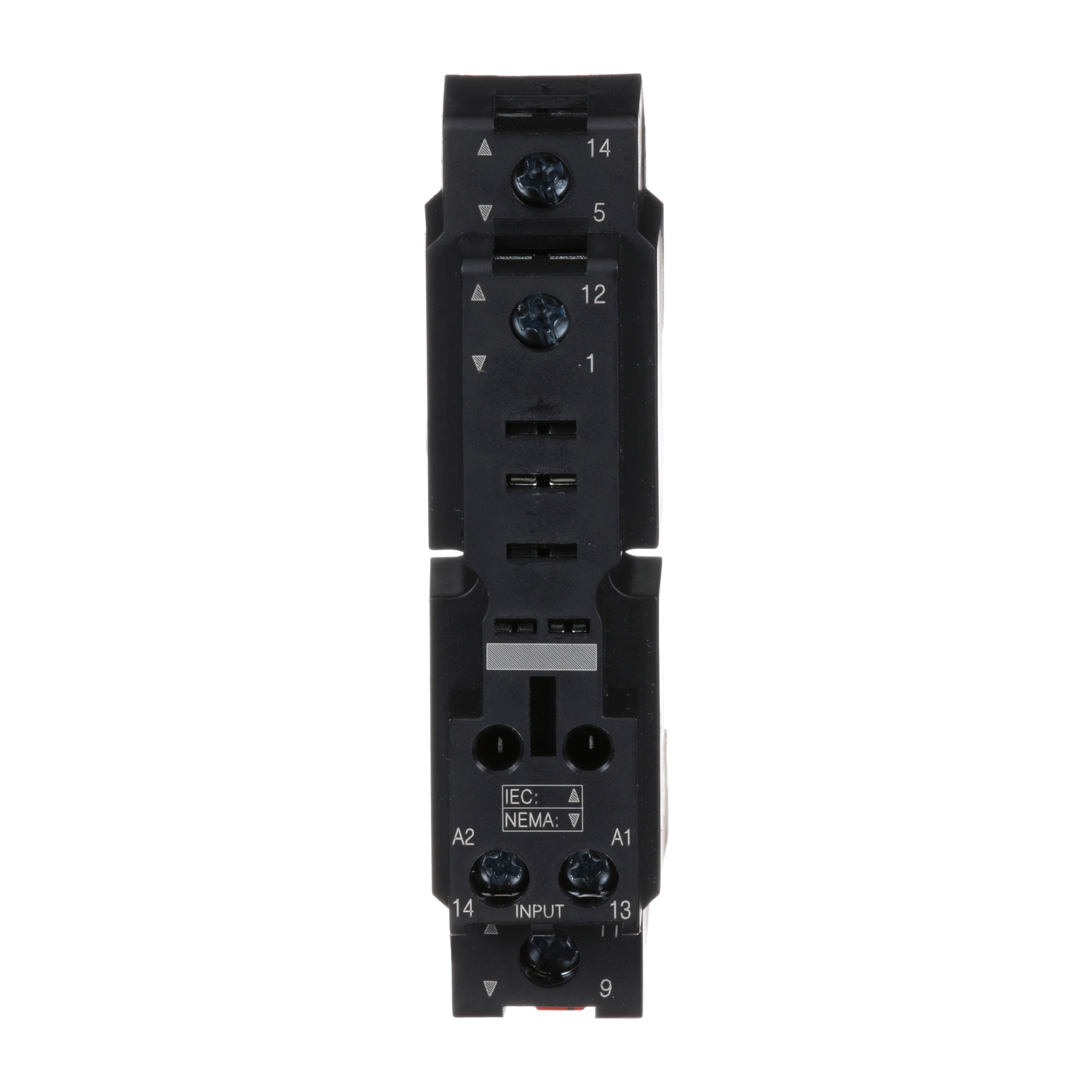

Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC

Link copied
SKU
EAN
GTIN
MPN

Socket, mixed contact, 16 A, relay type RPM1, screw clamp terminals, 250 V AC by Schneider Electric is listed by 7 electrical wholesalers on Voltimum UK, including BPX Electro Mechanical Co. Ltd, Control Components Anglia, Farnell and 4 more. It is currently in stock at all of them. Trade prices range from £3.28 to £5.26 excl. VAT. Voltimum+ members earn 1 point per unit.

"This Harmony RPM plug-in socket has a rated voltage of 250V AC with an output rating of 16A." "This plug-in relay socket is compatible with interface plug-in relay RPM range." "It has a large choice of number of contacts for high rated current use with space-saving design which allows for a flexible and easy installation on DIN rail." "It helps to reduce the size of enclosures and increase machine reliability, you can mount nearly everywhere." "It is compatible with plug in control relay." "It enables easy installation and connect to relay from its socket." "Workability for hard-wired logic automated systems to complement the functions of industrial programmable logic controllers (PLCs)." 0 0 0 0 0 0 0 0 0

Voltimum+ Loyalty Programme Loyalty points: 1

Price range: £ 3.28 - £ 5.26 Excl. VAT

Specifications

Depth 31 mm
Width 21 mm
Height 80 mm
Number of pins 3
Mounting method DIN rail (top hat rail) 35 mm
With detachable clamps no
Function extension possible yes
Type of electric connection Screw connection
