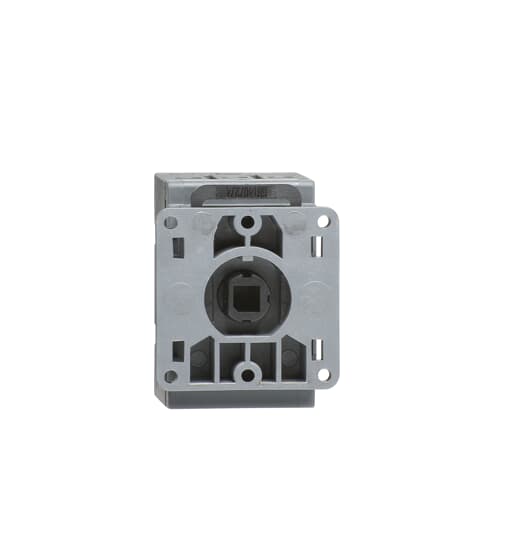

OT16FT3 SWITCH-DISCONNECTOR

Name: OT16FT3 SWITCH-DISCONNECTOR
Brand: ABB
SKU: OT16FT3
Availability: InStock

3-pole, front operated, door mounted switch-diconnector / non-fusible diconnect switch with protected clamp terminals, handle is not included

Product identifiers

SKU: OT16FT3

EAN: 6417019389820

GTIN: 6417019389820

MPN: OT16FT3

Price range: £ 21.52 - £ 30.74 Excl. VAT

Specifications

Depth	52
Width	43
Height	54
Interlockable	no
Number of poles	3
Number of switches	1
Device construction	Complete device in housing
Motor drive optional	no
Colour control element	-
Motor drive integrated	no
Version as main switch	yes
Rated operating voltage
Type of control element	-
Switching power at 400 V	7.5
Version as safety switch	no
Voltage release optional	no
Rated permanent current Iu	25
With pre-assembled cabling	-
Degree of protection (NEMA)	Other
Suitable for floor mounting	-
Version as reversing switch	no
Max. rated operation voltage Ue AC	750
Suitable for front mounting 4-hole	no
Suitable for front mounting centre	no
Suitable for intermediate mounting	-
Width in number of modular spacings	-
Rated operation power at AC-3, 400 V	-
Degree of protection (IP), front side	IP20
Rated operation power at AC-23, 400 V	7.5
Rated short-time withstand current lcw	0.5
Version as emergency stop installation	no
Version as maintenance-/service switch	yes
Rated permanent current at AC-21, 400 V	16
Rated permanent current at AC-23, 400 V	16
Conditioned rated short-circuit current Iq	-
Suitable for distribution board installation	yes
Type of electrical connection of main circuit	Screw connection
Number of auxiliary contacts as change-over contact	0
Number of auxiliary contacts as normally open contact	0
Number of auxiliary contacts as normally closed contact	0
