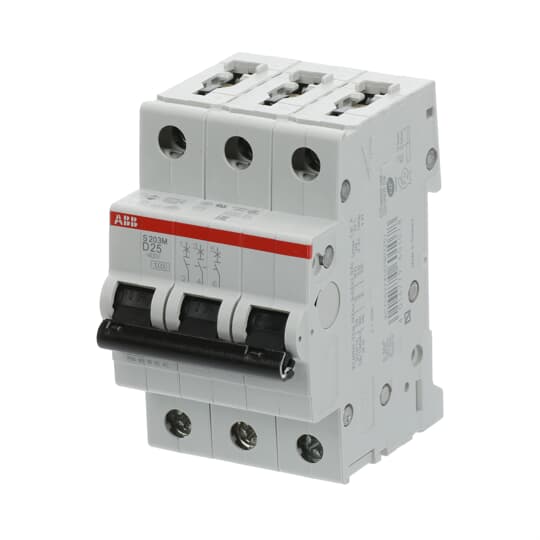

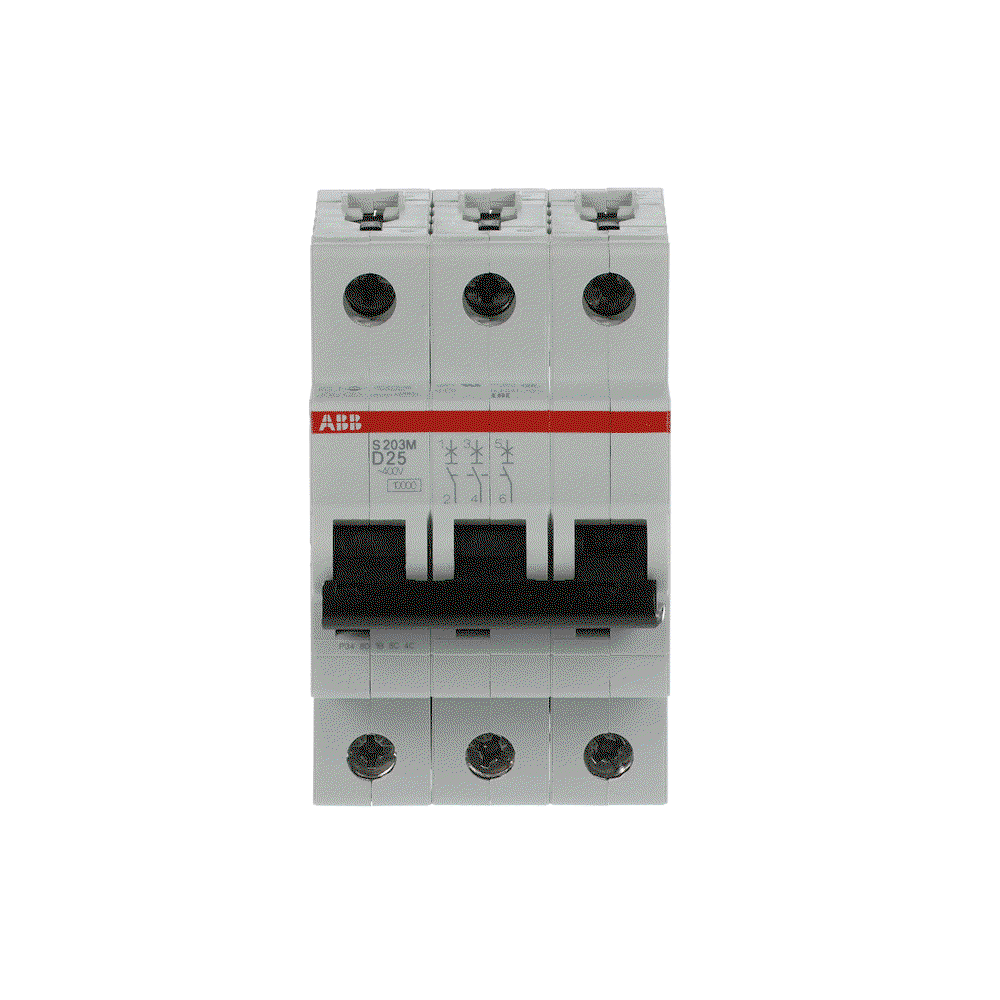

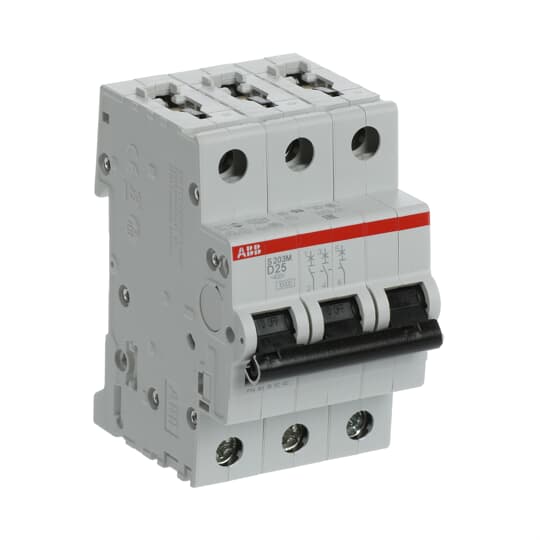

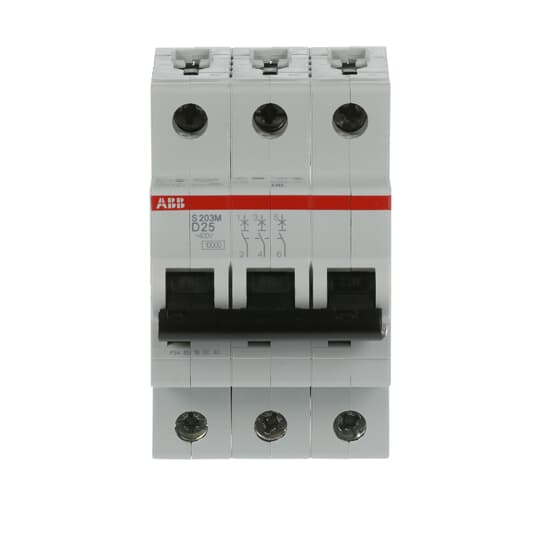

Miniature Circuit Breaker - S200M - 3P - 25 A - D - (AC) 10 kA
1 / 4
Miniature Circuit Breaker - S200M - 3P - 25 A - D - (AC) 10 kA
3x rewards on ABB Protecta Plus!
Miniature Circuit Breaker - S200M - 3P - 25 A - D - (AC) 10 kA by ABB is listed by 3 electrical wholesalers on Voltimum UK, including Control Components Anglia, Farnell and RS Components. It is currently in stock at 1 of them. Trade prices range from £87.60 to £109.42 excl. VAT. Voltimum+ members earn 48 points per unit.
System pro M compact S200M miniature circuit breakers are current limiting. They have two different tripping mechanisms, the delayed thermal tripping mechanism for overload protection and the electromechanic tripping mechanism for short circuit protection. They are available in different characteristics (B,C,D,K,Z), configurations (1P,1P+N,2P,3P,3P+N,4P), breaking capacities (up to 10 kA at 230/400 V AC) and rated currents (up to 63A). All MCBs of the product range S200M comply with IEC/EN 60898-1 and IEC/EN 609 47-2, allowing the use for residential, commercial and industrial applications. Bottom-fitting auxiliary contact can be mounted on S200M to save 50% space.
Product identifiers
SKU: 2CDS273001R0251
EAN: 4016779601078
GTIN: 4016779601078
MPN: S203M-D25
Loyalty points:
144
Price range: £ 87.60 - £ 109.42 Excl. VAT
Categories
Specifications
| Frequency | |
| Power loss | 9.3 |
| Voltage type | AC/DC |
| Rated current | 25 |
| Rated voltage | 400 |
| Built-in depth | 69 |
| Explosion-proof | no |
| Pollution degree | 3 |
