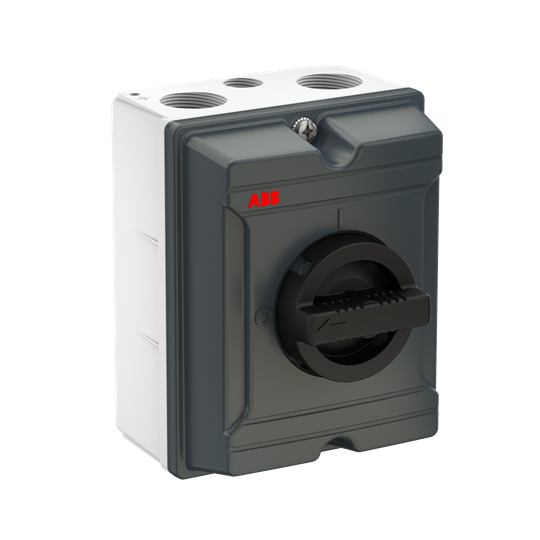

OTA63S3G EMC Safety switch

Link copied
SKU
EAN
GTIN
MPN
EMC safety switch, 3-p. 415V AC23 63A, 30kW. Mounted auxiliary contact: 1NO0NC. Aluminium enclosure. IP65. Black Round handle. Interlocked cover. The dye casted aluminum alloy (silumin) enclosure is extremely rigid, and well suited for harsh environment. The surface is polyester coated and well protected from corrosion. Installation is made easy, thanks to the easy access to terminals, screwed cover and with the compression cable glands included. The cover is interlocked, and handle padlockable with two padlocks. The handle can also be padlocked in On position, by removing two small plastic covers. The enclosure is EMC type, when EMC glands (not included) are used.

Voltimum+ Loyalty Programme Loyalty points: 406

Price: £ 270.40 Excl. VAT

Specifications

Depth 103
Width 130
Height 165
Interlockable yes
Number of poles 3
Number of switches 1
Device construction Complete device in housing
Motor drive optional no
Motor drive integrated no
Rated operating voltage
Switching power at 400 V 30
Voltage release optional no
With pre-assembled cabling -
Suitable for floor mounting -
Max. rated operation voltage Ue AC 750
Suitable for front mounting centre no
Width in number of modular spacings -
Degree of protection (IP), front side IP65
Rated short-time withstand current lcw 2.5
Version as maintenance-/service switch yes
Rated permanent current at AC-23, 400 V 63
Suitable for distribution board installation yes
Number of auxiliary contacts as change-over contact 0
Number of auxiliary contacts as normally closed contact 0

Documents

Deeplink product page

Open

Deeplink REACH

1SCC340076D0201_en_D_Reach Declaration _ Enclosed AC Switches.pdf

Open

Instructions for use

34OTA-OKA16-125 rev G (3).pdf

Open

Product data sheet

Open

Declaration RoHS

1SCC340075D0201_en_E_RoHs Declaration _ Enclosed AC Switches.pdf

Open

Declaration DOC CE (Declaration of conformity CE)

CE OTA16-600 2021-02-25 C.pdf

Open
