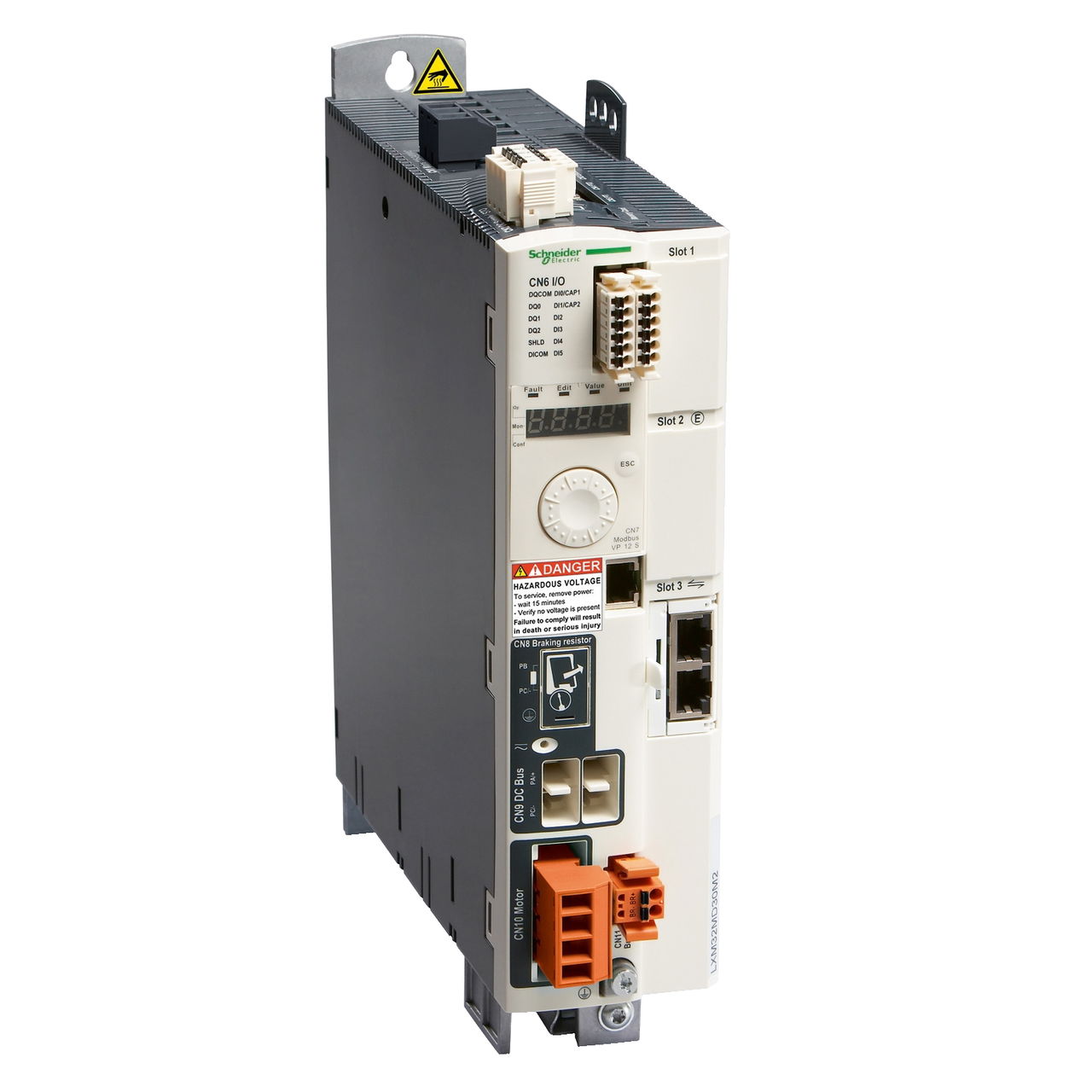

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 0.9 kW

Link copied
SKU
EAN
GTIN
MPN

Motion servo drive, Lexium 32, three phase supply voltage 208/480 V, 0.9 kW by Schneider Electric is listed by 1 electrical wholesaler on Voltimum UK, including RS Components, and currently in stock. Trade price £1,054.71 excl. VAT. Voltimum+ members earn 135 points per unit.

This Lexium 32 servo drive works at a rated supply voltage from 208V ac to 480V ac. It can feed 3-phase synchronous motors BMH or BSH, its continuous output current is 3A at 8kHz. The compact size of the servo drive and associated servo motor provides maximum power in the minimum space. This servo drive is specifically designed for industrial machines. It offers high performance, power and simplicity of use in motion control applications. It complies with international standards IEC/EN 61800-5-1, IEC/EN 61800-3, and is UL and CSA and is UL and CSA certified and CE marked. It has been developed to meet the requirements of directives regarding protection of the environment (RoHS).

Voltimum+ Loyalty Programme Loyalty points: 135

Price: £ 1,054.71 Excl. VAT

Specifications

Depth 237 mm
Width 68 mm
Height 270 mm
Mains voltage
Mains frequency 50/60 Hz
Power consumption -
Type of converter Other
With PC connection yes
With control element yes
Number of phases input 3
Number of phases output Other
Degree of protection (IP) IP20
Number of digital outputs 2
Number of analogue outputs 1
Number of HW-interfaces USB 0
Supporting protocol for CAN yes
Supporting protocol for LON no
Number of HW-interfaces other 0
Integrated breaking resistance no
Number of HW-interfaces RS-422 0
Supporting protocol for BACnet no
Supporting protocol for SERCOS no
Supporting protocol for SUCONET no
Supporting protocol for INTERBUS no
Supporting protocol for DeviceNet yes
Number of HW-interfaces serial TTY 0
Supporting protocol for PROFINET IO yes
Supporting protocol for Data-Highway no
Supporting protocol for INTERBUS-Safety no
Relative symmetric net voltage tolerance 10 %
Supporting protocol for other bus systems yes
Number of HW-interfaces industrial Ethernet 1
Max. output at linear load at rated output voltage 0.9 kW
Max. output at quadratic load at rated output voltage 0.9 kW

Documents

Declaration of Conformity (Sustainability)

LXM32MD12N4 REACh Regulation

Open

User guide

Lexium 32M Servo Drive, User Guide

Open

Product data sheet

Open

Brochure

998-23091292_HMI and Lexium 32_Leaflet_LMA_QA3 (1.0)

Open

Catalog

Catalog Lexium 32 servo drives BMH and BSH servo motors - October 2021

Open

Declaration of Conformity (Sustainability)

LXM32MD12N4 EU RoHS Directive

Open

Declaration of conformity

Lexium 32, Declaration of Conformity, EU CE, Schneider Electric

Open

Environmental Disclosure

Lexium LXM32 / LXM52 Servo Drive - Product Environmental Profile

Open
